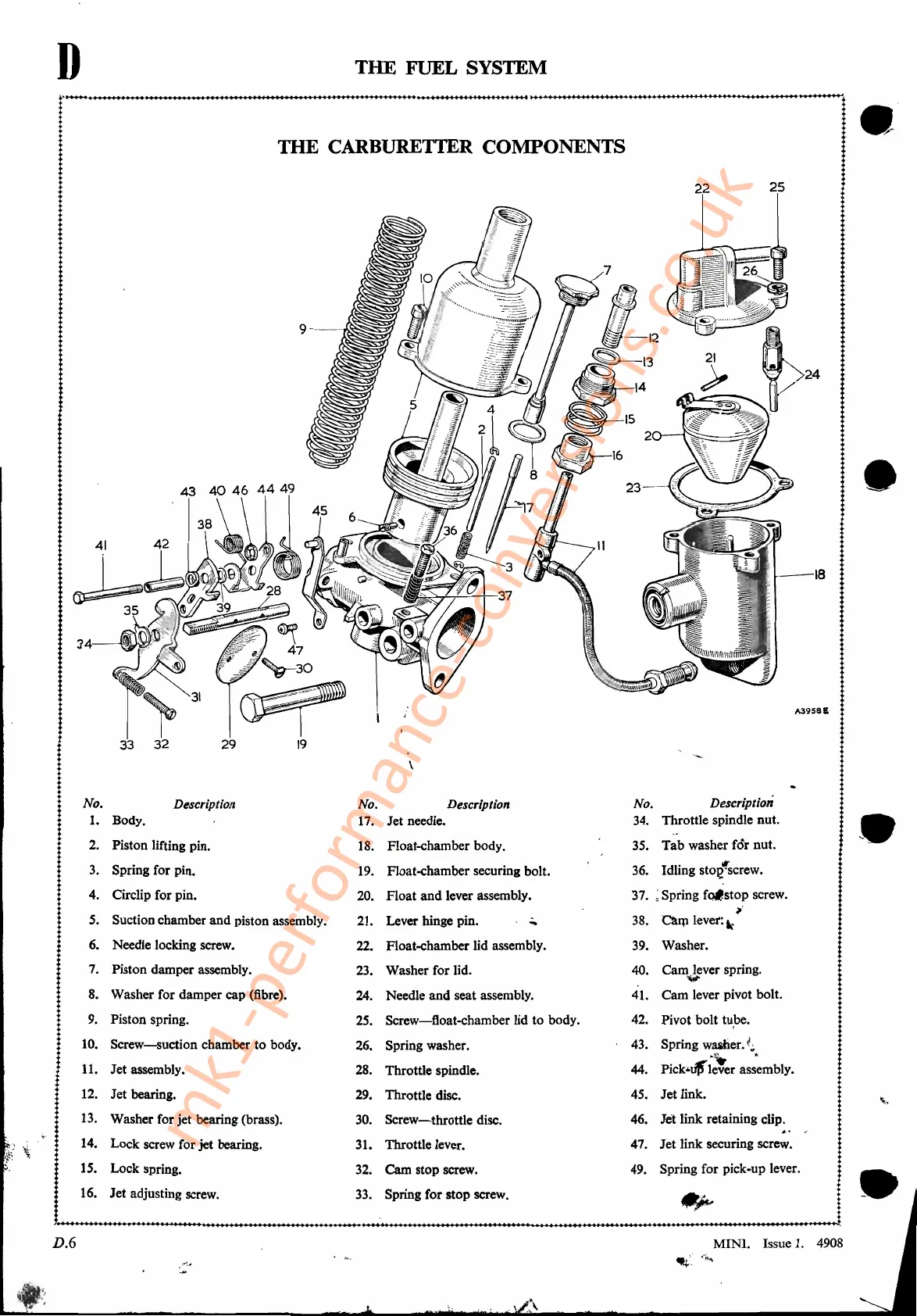

THE FUEL SYSTEM
THE
CARBURETTER COMPONENTS
•
No. Description
No.
Description
1.
Body.
17.
Jet needle.
2. Piston lifting pin.
18.
Float-chamber body.
3. Spring for pin.
19.
Float-chamber securing bolt.
4. Circlip for pin.
20.
Float
and
lever assembly.
5. Suction chamber
and
piston assembly.
21.
Lever hinge pin.
.;,.
6. Needle locking screw.
22.
Float-chamber lid assembly.
7.
Piston damper assembly.
23.
Washer for lid.
8. Washer for damper cap (fibre).
24.
Needle
and
seat assembly.
9.
Piston spring.
25.
Screw-Boat-chamber lid
to
body.
10.
Screw-suction
chamber
to
body.
26.
Spring washer.
11.
Jet assembly.
28.
Throttle spindle.
12.
Jet bearing.
29. Throttle disc.
13. Washer for jet bearing (brass).
30.
Screw-throttle
disc.
14.
Lock screw for
jet
bearing.
31.
Throttle lever.
15.
Lock spring.
32.
Cam stop screw.
16.
Jet
adjusting screw.
33.
Spring for stop screw.
No. Description
34. Throttle spindle nut.
,."
35.
Tab
washer
fOr
nut.
36. Idling stoellfscrew.
37. ;'Spring
fQlstop
screw.
JI'
38.
'Cup.
lever.
~
39. Washer.
40.
CamJ;ver
spring.
41.
Cam
lever pivot bolt.
42.
Pivot bolt tu]Je.
43.
Spring wamer.
(,
44.
Pick~4
i:er
as:embly.
45.
Jet
link.
46.
Jet link retaining clip.
47.
Jet
link securing screw.
49.
Spring for pick-up lever.
.~
•
•
•
