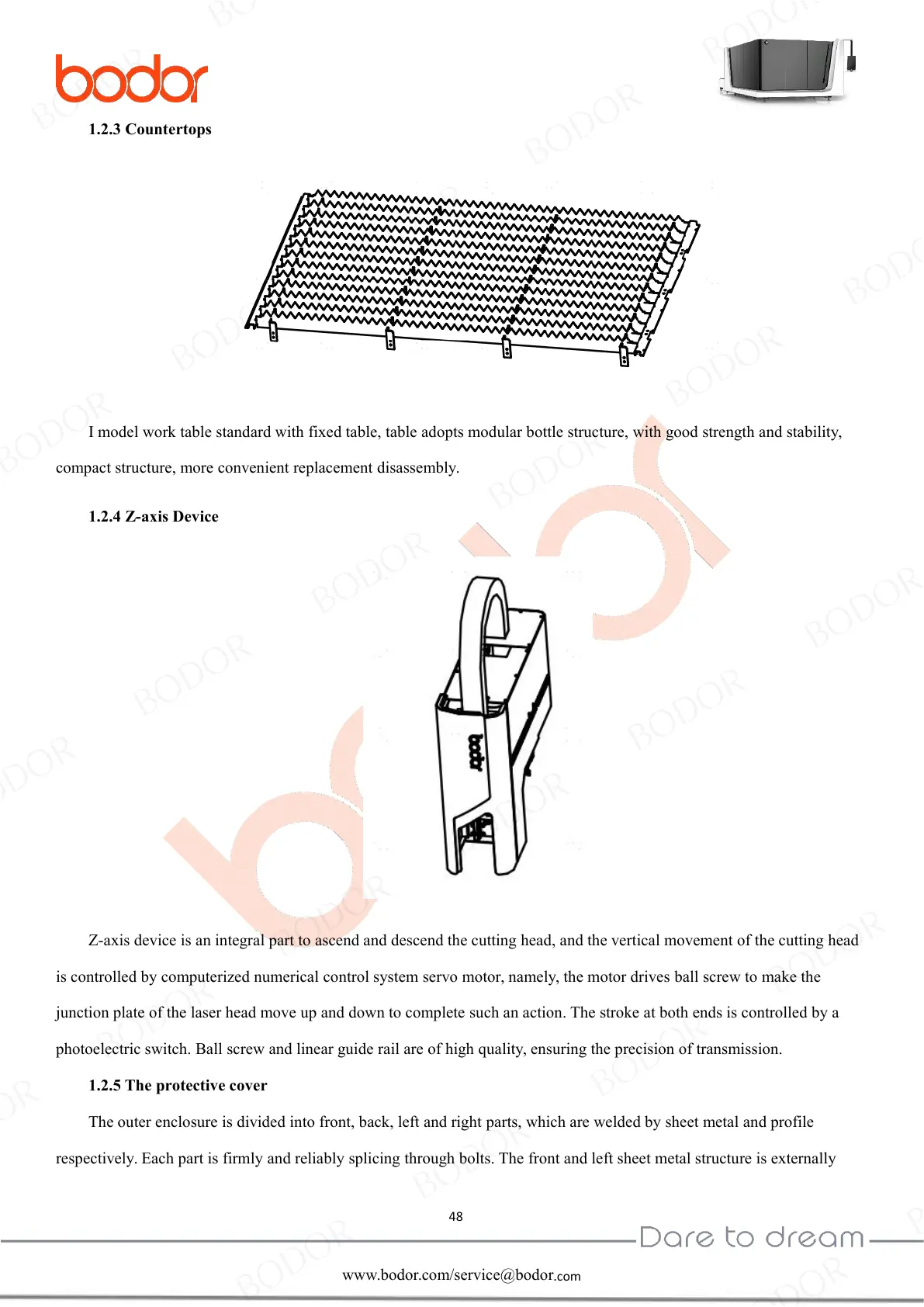

I model work table standard with fixed table, table adopts modular bottle structure, with good strength and stability,
compact structure, more convenient replacement disassembly.
1.2.4 Z-axis Device
Z-axis device is an integral part to ascend and descend the cutting head, and the vertical movement of the cutting head
is controlled by computerized numerical control system servo motor, namely, the motor drives ball screw to make the
junction plate of the laser head move up and down to complete such an action. The stroke at both ends is controlled by a
photoelectric switch. Ball screw and linear guide rail are of high quality, ensuring the precision of transmission.
1.2.5 The protective cover
The outer enclosure is divided into front, back, left and right parts, which are welded by sheet metal and profile
respectively. Each part is firmly and reliably splicing through bolts. The front and left sheet metal structure is externally
