Installation of an optional Communication Module
4 Installation of an optional Communication Module
This chapter describes the assembly of the communication module.
4.1 Assembly
The communication module is pre-assembled in a casing. Additionally, a PE spring is enclosed for PE
connection (shield).
Caution!
The frequency inverter must be disconnected from the power supply before installation of
the communication module.
Installation under voltage is not permitted and will destroy the frequency inverter and/or
the communication module.
Do not touch the PCB visible on the back of the module, otherwise components may be
damaged.

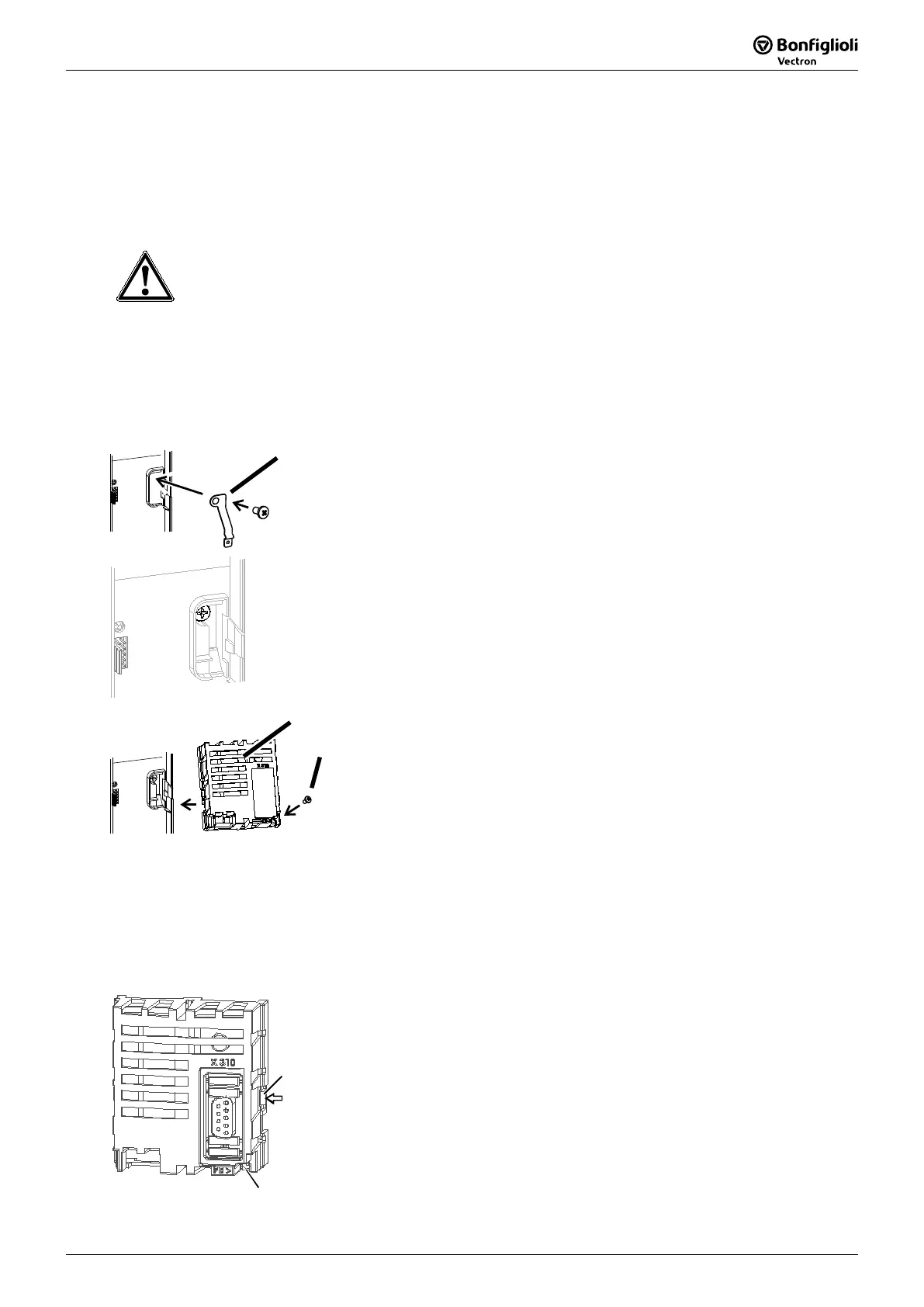

• Remove the cover of the module slot.
• Attach the PE spring (1) using the screw provided on
the frequency inverter.
• Insert the communication module (2).
• Screw the communication module (2) onto the
frequency inverter with the screw provided (3).
• Break off the pre-punched cut-out from the cover.
• Break off the pre-punched cut-out from the cover.
4.2 Disassembly
• Remove the cover of the module slot.
2
1
• Loosen the screw (1) on the communication module.
• Using a small screwdriver, firstly unlock the right and then the
left snap-in hook (2).
• Remove the communication module from the slot.
• Unscrew the PE spring.
• Replace the cover onto the frequency inverter.
