bora M Pure - Appliance Description

Appliance description
EN
bora.com 89

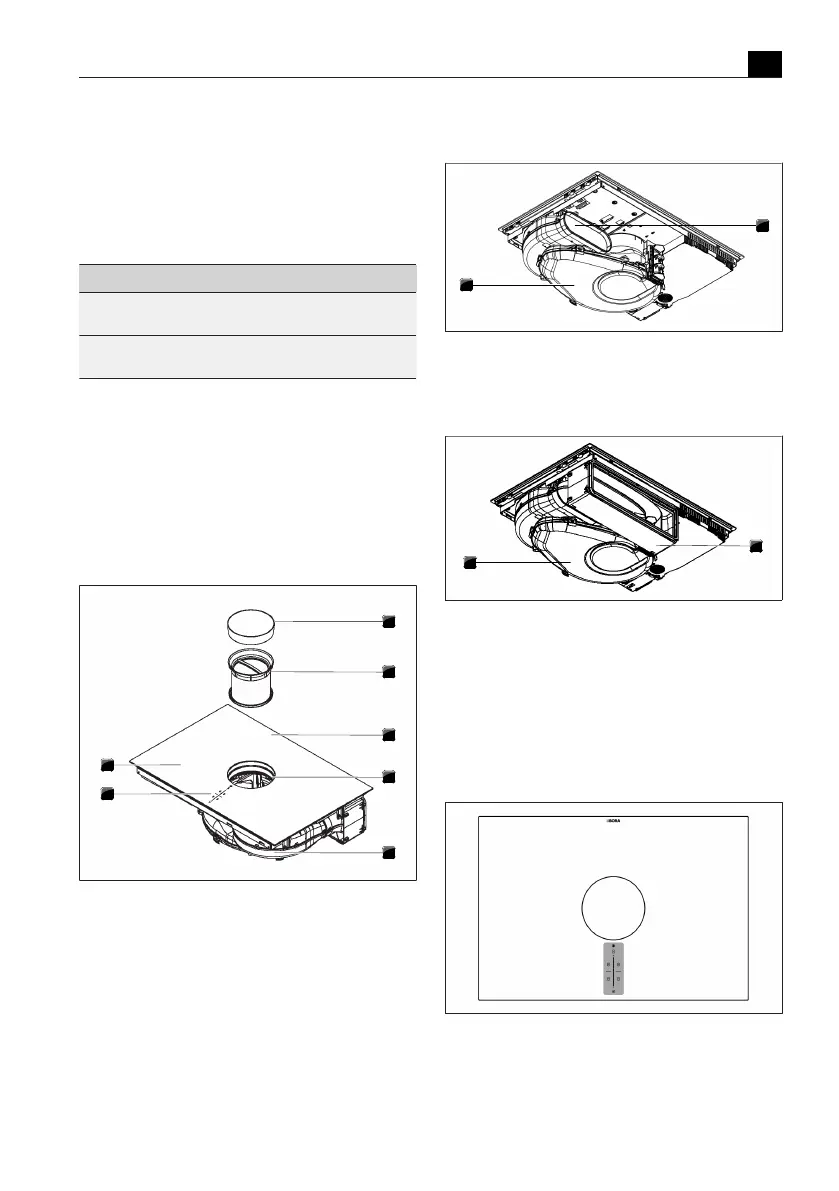

4 Appliance description
u
Observe all safety and warning information
(see"2Safety").
4.1
Model description
Model Long description
PURMA M Pure induction/surface induction cooktop
with integrated cooktop extractor – exhaust air
PURMU M Pure induction/surface induction cooktop
with integrated cooktop extractor – recirculation
Tab.4.1
Model description
Layout and technology:
2 left cooking zones = induction
2 right cooking zones = surface induction
4.2
System description
4.2.1 Structure
1
2
3
4
5
6
7
Fig.4.1
Structure
[1] Air inlet nozzle
[2] Stainless steel grease filter
[3] Cooktop
[4] Inlet opening
[5] Fans
[6] Operating panel
[7] Cooking zone (x 4)
1
2
Fig.4.2
Exhaust air variant rear view
[1] Exhaust opening
[2] Air guiding housing with housing base
1
2
Fig.4.3
Recirculation variant rear view
[1] Air purification box with telescopic pull-out
[2] Air guiding housing with housing base
4.2.2
Operating panel
The appliance is operated via a central touch operating
panel.
Fig.4.4
Central touch operating panel with touch
slider
