bora M Pure - Symbols; 7-Segment Display

Appliance description
EN
90 bora.com
1
2
3
4
5
6
7
8
9
10
11
12
13

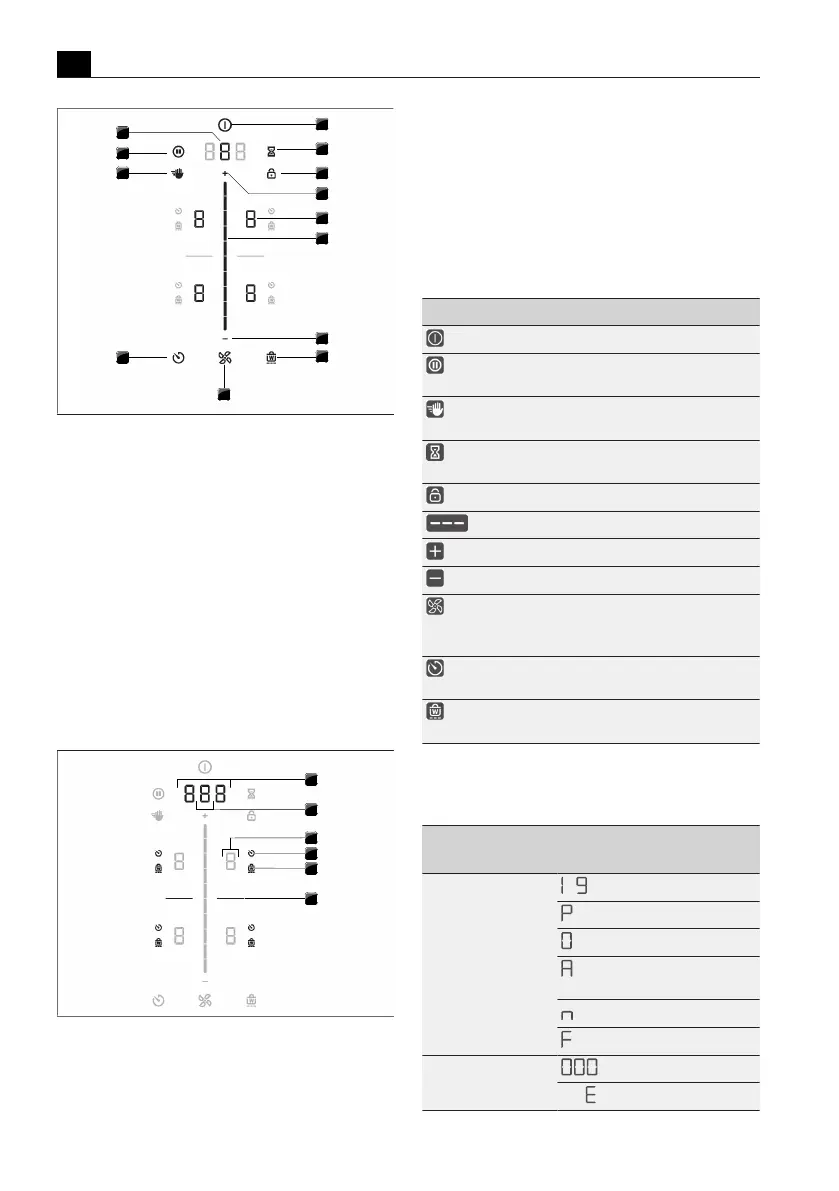

Fig.4.5
Touch zones/buttons
[1] Switching on/off
[2] Short-time timer (egg timer)
[3] Operating lock
[4] Plus setting area
[5] Cooking zone selection (x 4)
[6] Touch slider (setting area)
[7] Minus setting area
[8] Heat retention function
[9] Fan functions
[10] Cooking zone timer
[11] Cleaning lock
[12] Pause function
[13] Select fan/Call up menu
1
2
3
4
5
6
Fig.4.6
Indicator zones
[1] Multi-function display
[2] Fan display
[3] Cooking zone indicator (x 4)
[4] Cooking zone timer indicator (x 4)
[5] Heat retention function indicator (x 4)
[6] Dividing line
4.2.3
Symbols
Symbol Designation Function/meaning
Power button Switching on/off
Pause button Pause function
activation/deactivation
Cleaning button Cleaning lock
activation/deactivation
Short-time timer
button
Setting the short-time timer
(egg timer)
Lock button Control lock
Slider Setting values
Plus button Increasing values
Minus button Decreasing values
Fan button Automatic extractor function
activation/deactivation,
Accept after-run function
Timer button Setting the cooking zone
timer
Warming button Heat retention function
activation/deactivation
Tab.4.2
Meaning of the symbols displayed (icons)
4.2.4
7-segment display
Multi-function
display
Meaning
Fan display
‑
Power levels
Power setting
Inactive
Automatic extractor
function
Automatic after-run
Filter service display
Multi-function display Time indication
e.g.
Error code
