bora M Pure - Connecting the Power Supply

Installation
EN
120 bora.com
9.8 Connecting the power
supply
u
Observe all safety and warning information (see"2Safety").
Assembly, installation and commissioning must
always occur in line with national laws,
regulations and standards. The work must be
performed by qualified specialists who know
and comply with the additional regulations of
the local energy supply companies.
Connections via plug-in contacts (Schuko plugs)
are not permitted.
1-phase connection. The appliance complies
with the requirements of IEC 61000-3-12.
u Switch off the main switch/automatic circuit breaker
before connecting the cooktop.
u Secure the main switch/automatic circuit breaker
against being switched back on without permission.
u Make sure the power to the appliance is disconnected.
u Connect the cooktop exclusively via a fixed
connection to an H 05 VV-F power supply cable with
corresponding minimum cross-section.
Connection Fuse protection Minimum
cross-section
Three-phase
connection
3 x 16 A 2.5mm²
Two-phase
connection
2 x 16 A 2.5mm²
One-phase
connection
1 x 32 A 4mm²
Tab.9.2
Fuse protection and minimum cross-section
1
2
3
4
5
1
2
S1

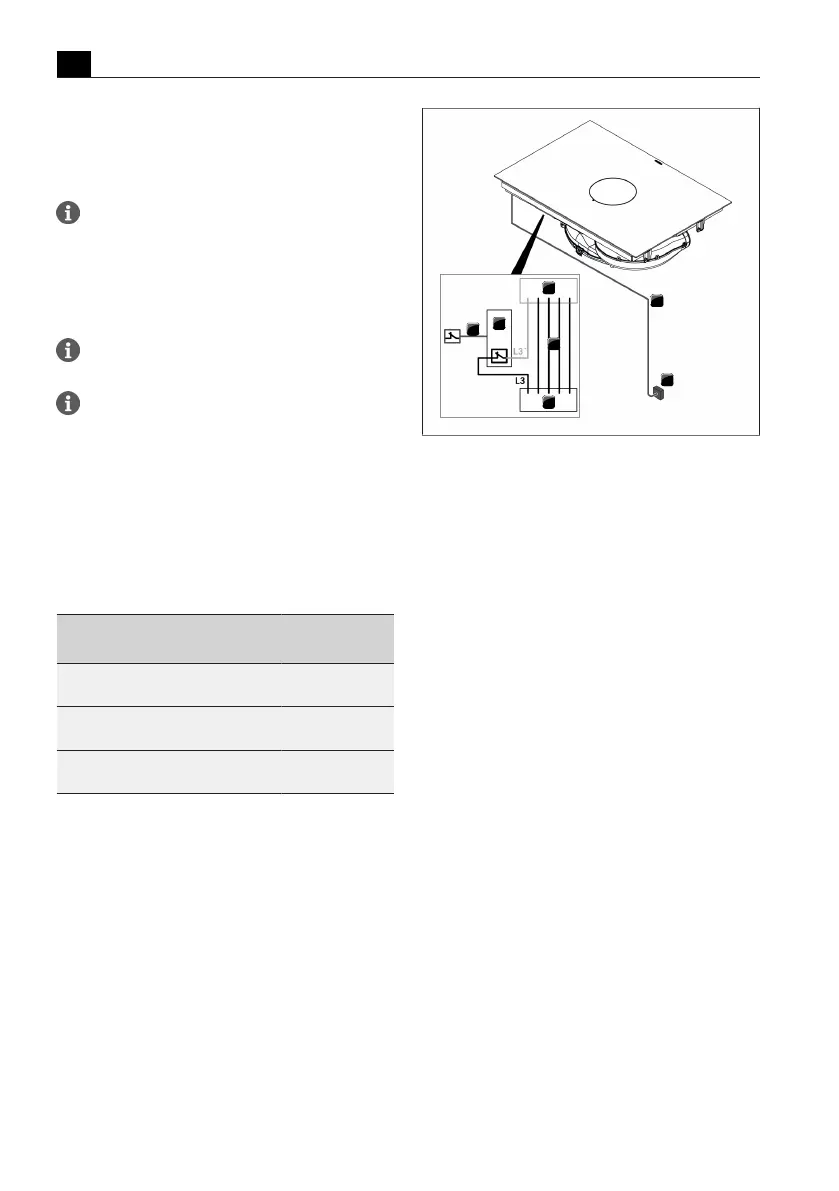

Fig.9.33
Connection diagram with external switch contact
[1] Cooktop and cooktop extractor power supply cable
[2] Power supply
[3] Cooktop and cooktop extractor power supply
[4] Switch relay
[5] Switch connection S1 and switch relay
[S1] External switch contact
u Connect the mains supply cable to the power supply
of the appliance in accordance with the relevant
connection diagram (see figures or underside of
appliance).
u For a single-phase or two-phase connection, connect
the relevant contacts using the bridge provided (in
scope of delivery).
u Secure the connection cable with the strain relief
clamp (in scope of delivery).
u Close the power supply housing with the power
supply cover (in scope of delivery).
u Lay the connection cable along the mounting eyes
with the help of the cable ties (in scope of delivery).
u Ensure that the cable is not trapped or damaged and
is not able to come into contact with any hot areas
on the cooktop.
u Check that installation has been carried out
correctly.
