Installation
EN
bora.com 111
If the cooktop extractor is used exclusively in
recirculation mode, simultaneous operation with
a fireplace dependent on the air in the room is
possible without any additional safety measures.
9.2
Scope of delivery
Scope of delivery
Quantity
Cooktop with integrated cooktop extractor 1
Air inlet nozzle 1
Stainless steel grease filter 1
Operating and installation instructions 1
Installation clamps 4
Sealing tape 1
Height adjustment plate set 1
Bag containing various small parts for assembly 1
Additional scope of delivery PURMU
Activated charcoal filter 1
Template for back panel cut-out 1
Tab.9.1
Scope of delivery
Checking the scope of delivery
u
Make sure the delivery is complete and check it for
damage.
u
Immediately notify the BORA Service TeamTeam if
parts are missing or damaged.
u
Do not under any circumstances install parts which
are damaged.
u
Dispose of transport packaging in the proper manner
(see"10Decommissioning, disassembly and disposal").
9.3
Tools and aids
The following tool, among others, is required to
correctly install the appliance:
T
Jigsaw or handsaw
T
size 20 Torx screwdriver key
T
black, heat-resistant silicone sealant
T
Template for cut-out on back panel (recirculation
only, included in scope of delivery)
9.4
Assembly instructions
9.4.1
Installation clearances
u
Observe the required clearance around the worktop
cut-out.

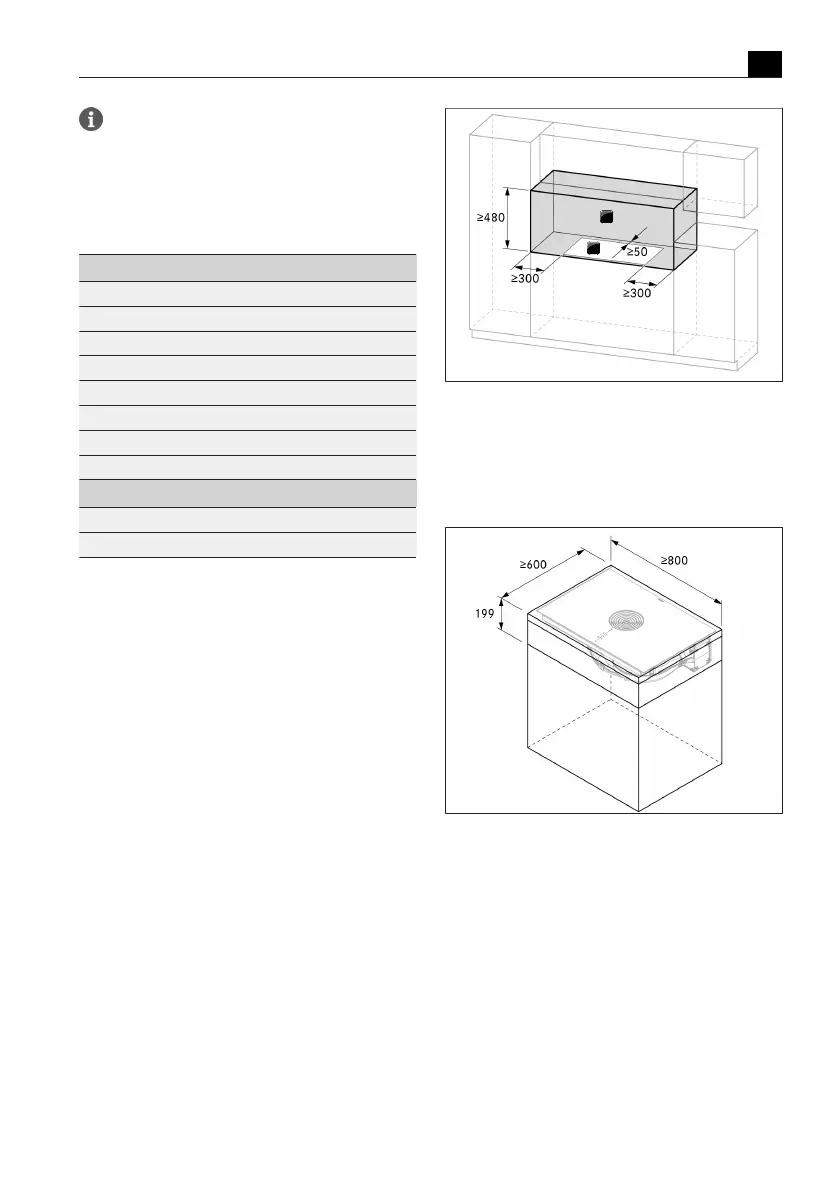

Fig.9.3
Required clearance
[1] Required clearance
[2] Worktop cut-out
9.4.2
Minimum unit dimensions
Fig.9.4
Minimum unit dimensions for M Pure
9.4.3
Information on kitchen units
T
Cross bars on the kitchen unit in the area of the
worktop cut-out may need to be removed.
T
In the case of thin worktops, there must be a
sufficiently rigid support plate on the unit.
T
The drawers and/or shelves in the floor unit must be
removable.
T
The drawers of the floor unit must be shortened
depending on the installation situation.
If false floor (cable protection) is planned, the following
must be taken into account:
