bora M Pure - Inserting the Cooktop; Securing the Cooktop; Connecting the Appliance to the Duct System

Installation
EN
114 bora.com

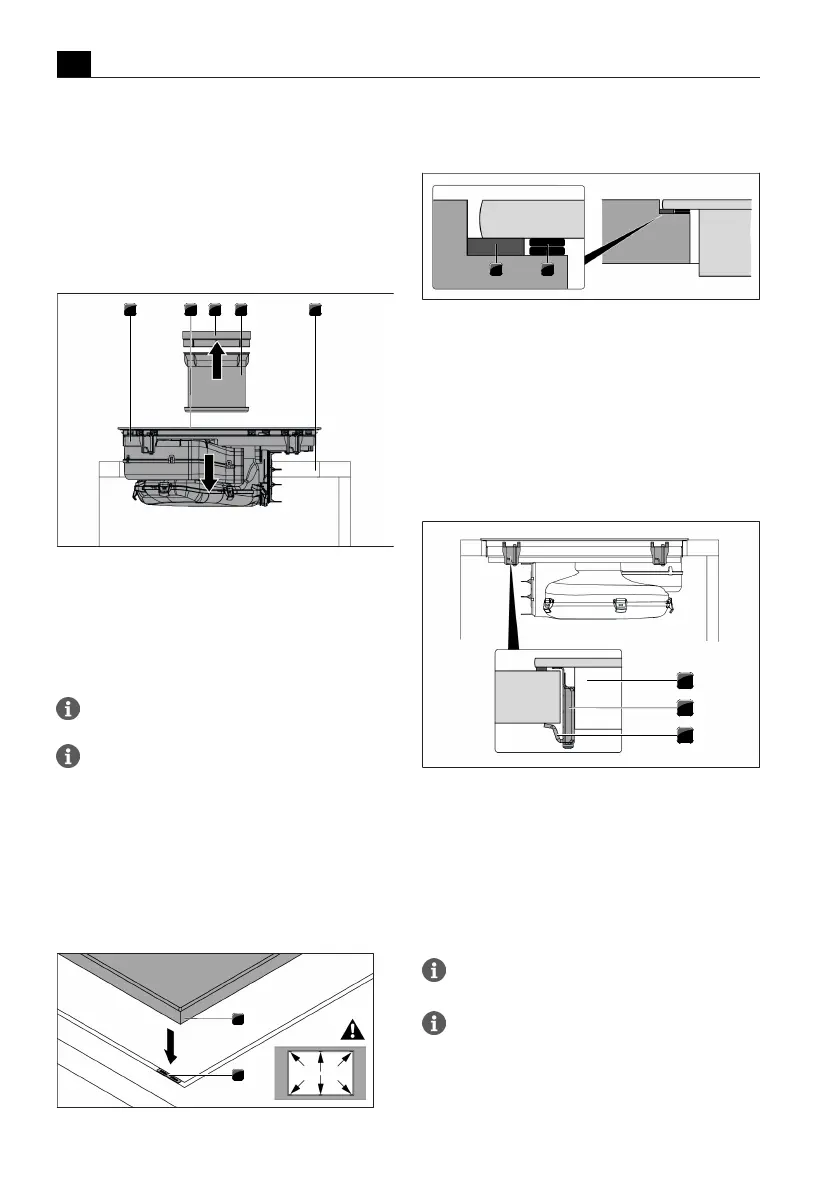

9.6.4 Inserting the cooktop
u
Before inserting the cooktop, remove the air inlet
nozzle and the stainless steel grease filter.
u Use the inlet opening as a handle during insertion.
u Keep the cooktop straight as you lift it into the
worktop cut-out.
u Insert the cooktop into the centre of the worktop cut-out.
u Precisely align the cooktop.
1 2 3 4 5
Fig.9.13
Positioning the cooktop in the centre
[1] Cooktop
[2] Inlet opening
[3] Air inlet nozzle
[4] Stainless steel grease filter
[5] Worktop cut-out
Make sure that the cooktop sealing tape is flat against
the worktop in the case of surface mounting.
Make sure that the cooktop sealing tape is well sealed
all the way round in the case of flush installation.
Height adjustment plates for flush installation
(optional)
T
The height adjustment plates are self-adhesive to
prevent slipping during installation.
u If applicable, insert the height adjustment plates.
u Place the height adjustment plates next to the
sealing tape.
1
2
Fig.9.14
Positioning the height adjustment plates
[1] Cooktop
[2] Height adjustment plate
1 2
Fig.9.15
Height adjustment plates
[1] Sealing tape
[2] Height adjustment plate
9.6.5
Securing the cooktop
u
Secure the cooktop to the worktop with the fixing
bracket on the installation clamp.
u Tightening torque: max. 2.2Nm.
1
2
3
Fig.9.16
Securing the cooktop in the middle
[1] Cooktop
[2] Mounting bracket
[3] Fixing bracket
9.6.6
Connecting the appliance to
the duct system
The duct system must be fitted to the appliance
free of load and with the power supply switched off.
When attaching the seals, ensure that an
airtight seal is created with the connecting duct
piece when the seals are compressed.
u Use only BORA Ecotube duct parts.
u Do not use flexible or fabric hoses.
