Adjust the height of the back panel to the false floor
so that they are flush with one another.
9.7.6

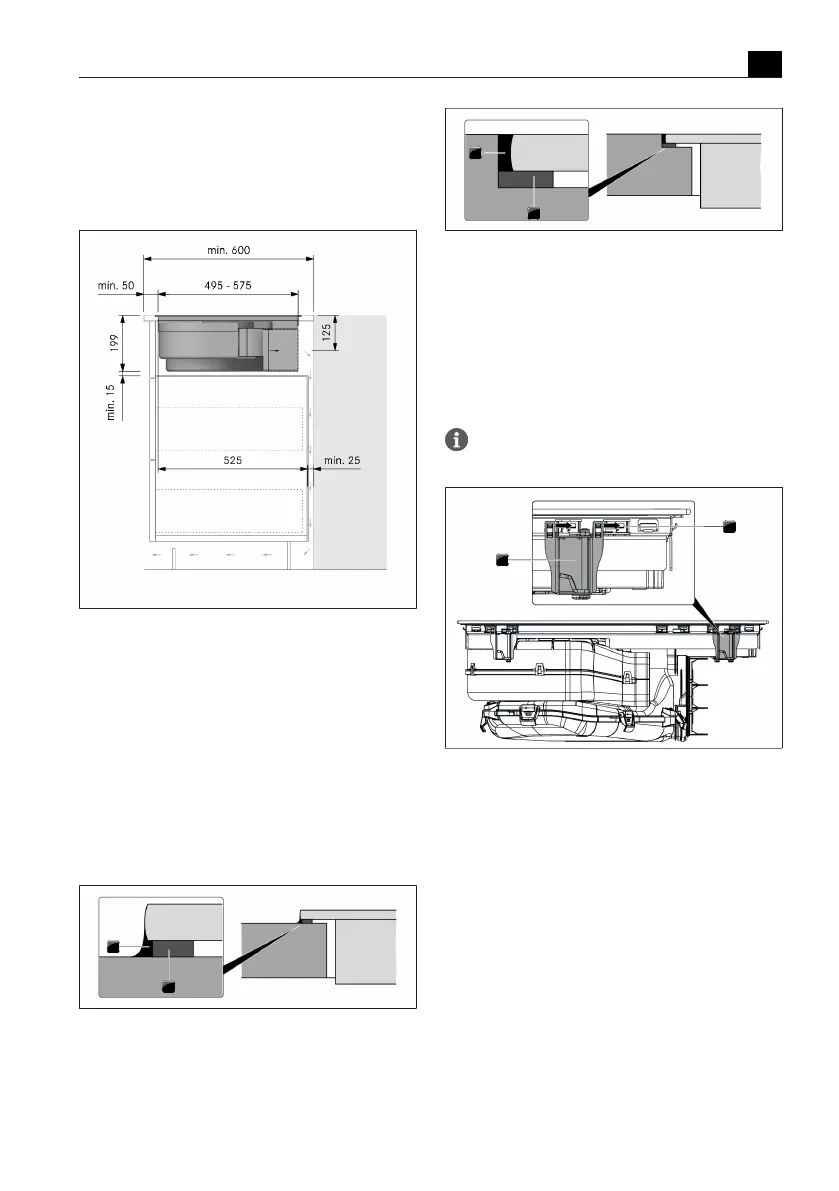

Installation dimensions for
installation variant B
Fig.9.22
Installation dimensions for recirculation
installation variant B, depth of worktop 600 mm
9.7.7
Preparing the appliance
Attaching the sealing tape
u
In the case of surface mounting, attach the enclosed
sealing tape around the outer edges of the underside
of the cooktop. Do not leave any gaps.
u
In the case of flush installation, attach the sealing
tape to the contact surfaces in the worktop cut-out,
even if you are sealing the cooktop with a silicone
sealing compound or similar.
Fig.9.23
Sealing tape in the case of surface mounting
[1] Black, heat-resistant silicone sealant
[2] Sealing tape
Fig.9.24
Sealing tape in the case of flush installation
[1] Black, heat-resistant silicone sealant
[2] Sealing tape
Fitting the installation clamps
u
Push 2 installation clamps onto each side of the
cooktop until they come to a stop in the retaining
brackets provided.
2 installation clamps must be fitted to each side
of the cooktop.
Fig.9.25
Fitting the installation clamps
[1] Retaining brackets
[2] Installation clamps
9.7.8
Extending the telescopic pull-
out of the air purification box
If the depth of the worktop exceeds 675 mm in installation
variant A, the telescopic pull-out of the air purification box
must be extended using the accessory PULBTA.
