bora M Pure - Worktop Cut-Out; Installing the Appliance in Exhaust Air Mode

Installation
EN
112 bora.com
T
It must be fitted in such a way that it can be removed
from below for maintenance work.
T To ensure sufficient cooktop ventilation, a minimum
distance of 15mm to the bottom edge of the
cooktop is to be observed.
9.5
Worktop cut-out
The minimum measurement of 50 mm from the
front edge of the worktop to the worktop
cut-out is a recommendation from BORA.
u Create the worktop cut-out taking into account the
specified cut-out dimensions.
u Make sure that the cut surfaces of the worktops are
properly sealed.
u Comply with the instructions of the worktop manufacturer.

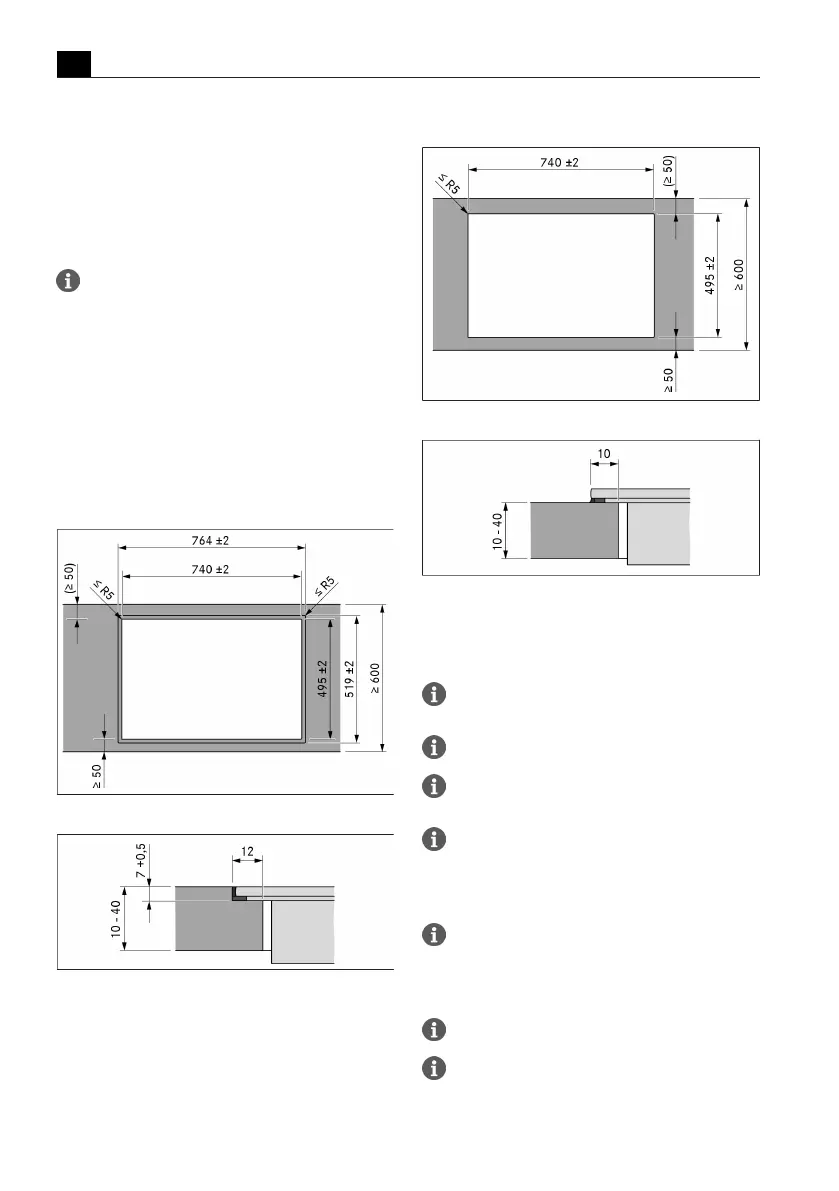

9.5.1 Cut-out dimensions
Flush installation
Fig.9.5
Cut-out dimensions for flush installation
Fig.9.6
Rebate dimensions for flush installation
Surface mounting
Fig.9.7
Cut-out dimensions for surface mounting
Fig.9.8
Overlay dimensions for surface mounting
9.6
Installing the appliance
in exhaust air mode
National and regional laws and regulations must be
observed with regard to the exhaust duct design.
A sufficient air supply must be ensured.
The exhaust air must be directed to the outside
by appropriate exhaust air ducts.
The minimum cross section of the exhaust air
duct must be 176 mm
2
which equates to a
round pipe with a diameter of 150mm or the
BORA Ecotube duct system.
As a general rule, with the built-in fan, a length
of duct of up to 6 metres with six 90° bends,
8 metres with four 90° bends or 10 metres with
two 90° bends can be installed.
Not compatible with BORA Universal fans.
Planning instructions for the installation of the
exhaust air ducts are provided in the BORA
planning guide.
