Appliance description
EN
bora.com 105
4 Appliance description
u Observe all safety and warning information
(see"2Safety").
4.1 Model description
Model Long description
PURSA S Pure induction cooktop with integrated
cooktop extractor – exhaust air
PURSU S Pure induction cooktop with integrated
cooktop extractor – recirculation
Tab.4.1
Model description
4.2 System description
4.2.1 Structure
1
2
3
4
5
6

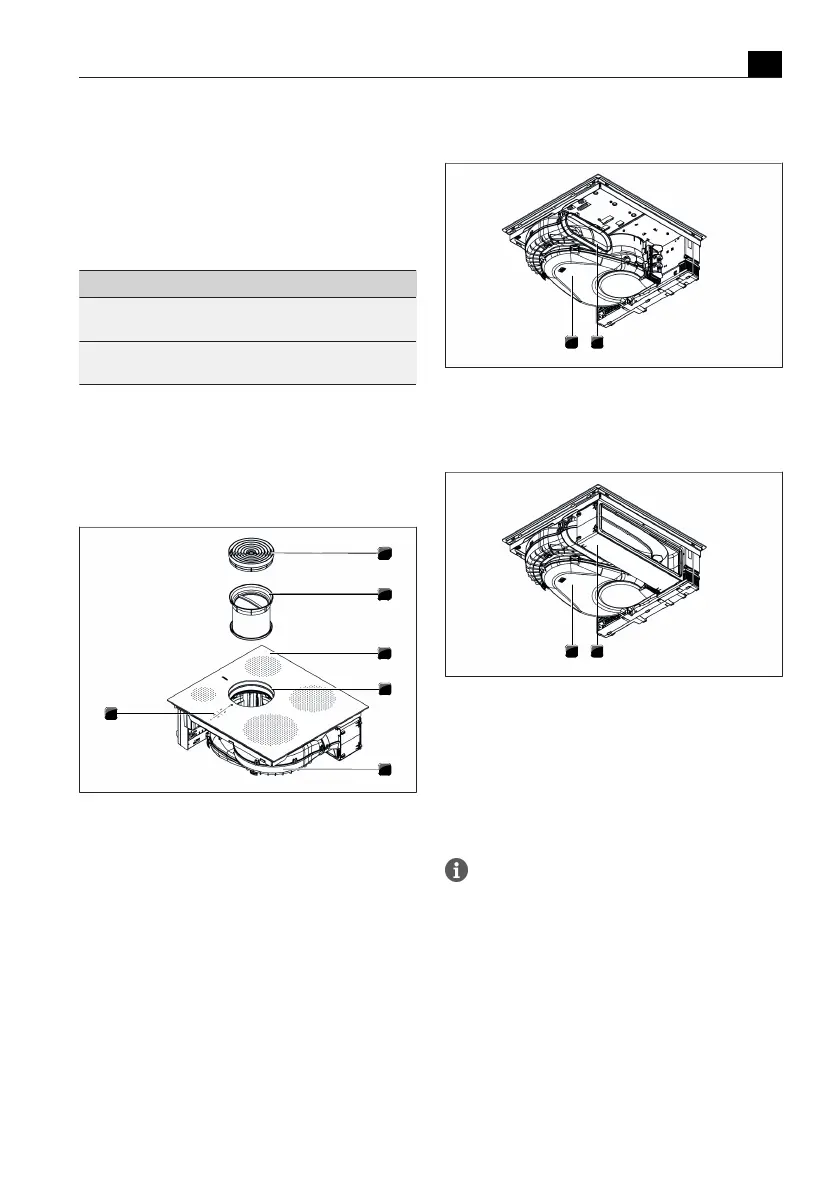

Fig.4.1
Cooktop
[1]
Air inlet nozzle
[2]
Stainless steel grease filter
[3]
Cooktop
[4]
Inlet opening
[5]
Fans
[6]
Operating panel
12
Fig.4.2
Rear view of PURSA
[1]
Exhaust opening
[2]
Air guiding housing with housing base
12
Fig.4.3
Rear view of PURSU
[1]
Air cleaning box with telescopic pull-out
[2]
Air guiding housing with housing base
4.2.2 Operating panel and
operating principle
How it works and its functions are described in
more detail in the “Functions and operation”
chapter.
The cooktop extractor and cooktops are operated via a
central operating panel. The operating panel is fitted
with electronic sensor buttons and display panels. The
sensor buttons respond to finger contact (touch zones).
