9.4.2 Minimum unit dimensions for
S Pure (PURSA, PURSU)

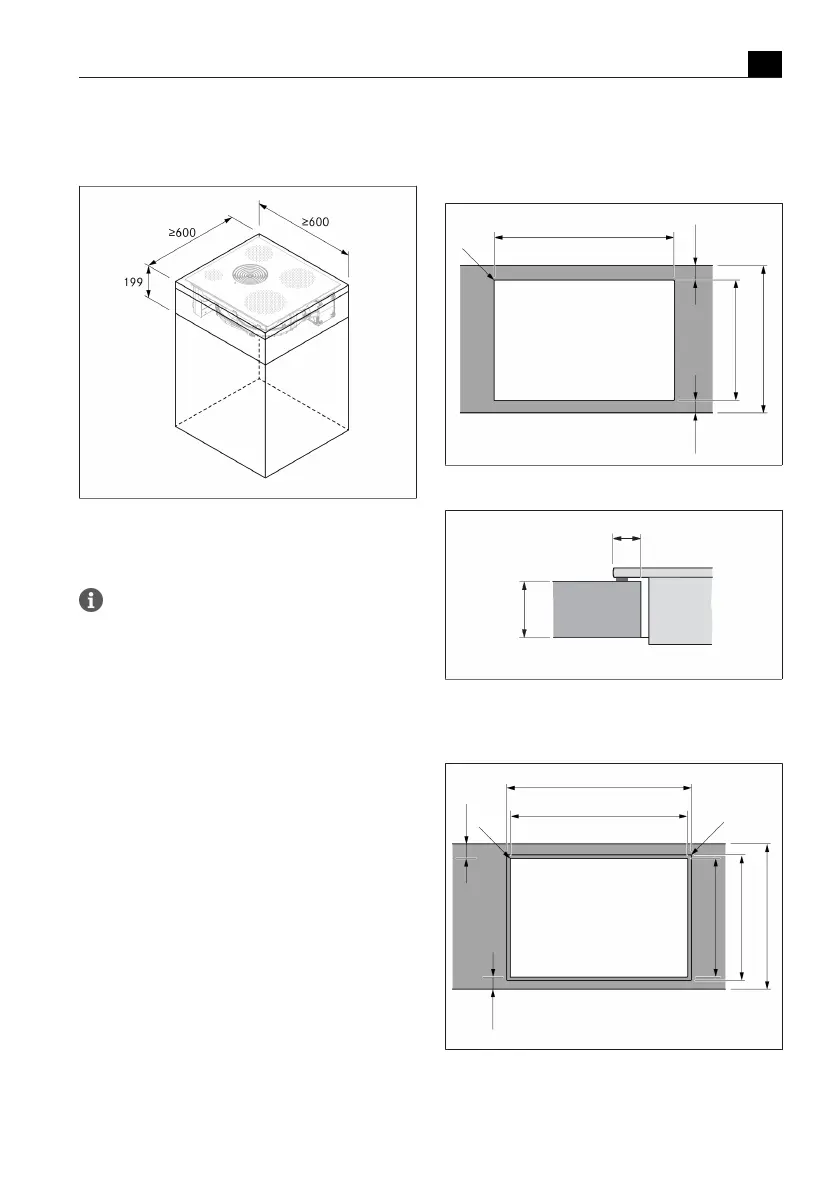

Fig.9.4
Minimum unit dimensions for S Pure
9.5 Worktop cut-out
The minimum measurement of 50 mm from the
front edge of the worktop to the worktop cut-
out is a recommendation from BORA.
u Create the worktop cut-out taking into account the
specified cut-out dimensions.
u Make sure that the cut surfaces of the worktops are
properly sealed.
u Comply with the instructions of the worktop
manufacturer.
9.5.1 S Pure cut-out dimensions
S Pure surface mounting (PURSA, PURSU)
560 ± 2
≤ R5
(≥ 50)
≥ 600
495 ± 2
≥ 50
Fig.9.5
Cut-out dimensions for surface mounting
screwdriver
10–40
Fig.9.6
Overlay dimensions for surface mounting
S Pure flush installation (PURSA, PURSU)
(≥ 50)
≥ 50
584 ± 2
560 ± 2
≤ R5
≤ R5
≥ 600
519 ± 2
495 ± 2
Fig.9.7
Cut-out dimensions for flush installation
