bora S Pure - Preparing the Cooktop; Inserting the Cooktop

Installation
EN
bora.com 135

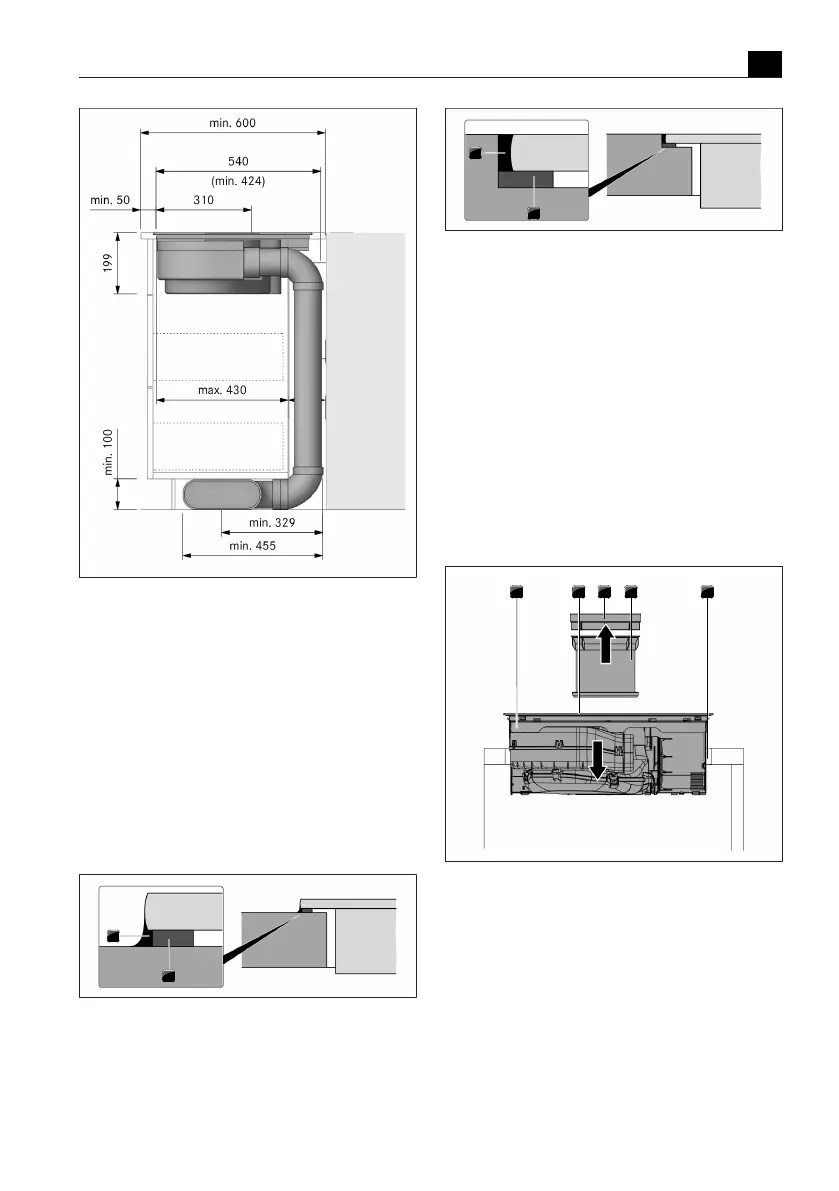

Fig.9.9
Installation dimensions for exhaust air,
worktop depth 600 mm
9.6.3 Preparing the cooktop
Attaching the sealing tape
u In the case of surface mounting, attach the enclosed
sealing tape around the outer edges of the underside
of the cooktop. Do not leave any gaps.
u In the case of flush installation, attach the sealing
tape to the horizontal cutting edge in the worktop
cut-out, even if you are sealing the cooktop with a
silicone sealing compound or similar.
1
2
Fig.9.10
Sealing tape in the case of surface mounting
[1]
Black, heat-resistant silicone sealant
[2]
Sealing tape
1
2
Fig.9.11
Sealing tape in the case of flush installation
[1]
Black, heat-resistant silicone sealant
[2]
Sealing tape
9.6.4 Inserting the cooktop
u Before inserting the cooktop, remove the air inlet
nozzle and the stainless steel grease filter.
u Use the inlet opening as a handle during insertion.
u Keep the cooktop straight as you lift it into the
worktop cut-out.
u Insert the cooktop into the centre of the worktop
cut-out.
u Precisely align the cooktop.
1 2 3 4 5
Fig.9.12
Inserting the cooktop
[1]
Cooktop
[2]
Inlet opening
[3]
Air inlet nozzle
[4]
Stainless steel grease filter
[5]
Worktop cut-out
u When aligning the cooktop, ensure that the holding
clamps hold the cooktop in the worktop.
