9.7.5 Preparing the kitchen unit for
installation variant B
T Cross bars on the kitchen unit in the area of the
worktop cut-out may need to be removed.
T In the case of thin worktops, there must be a
sufficiently rigid support plate on the unit.
T A false floor must be provided for under the cooktop:
T it must be fitted in such a way that it can be
removed for maintenance work.
T To ensure sufficient cooktop ventilation, a
minimum distance of 15mm to the bottom edge
of the cooktop is to be observed.
T The back panel of the unit must be flush with the
false floor so that the recirculating air is not directed
into the front of the unit.
T A minimum clearance of 25mm between the back panel
of the unit and an adjacent kitchen unit or room wall must
be observed for the return flow of the recirculation air.
T The drawers and/or shelves in the floor unit must be
removable.
T For correct installation, the drawers of the floor unit must
be shortened depending on the installation situation.
9.7.6 Installation dimensions for
installation variant B

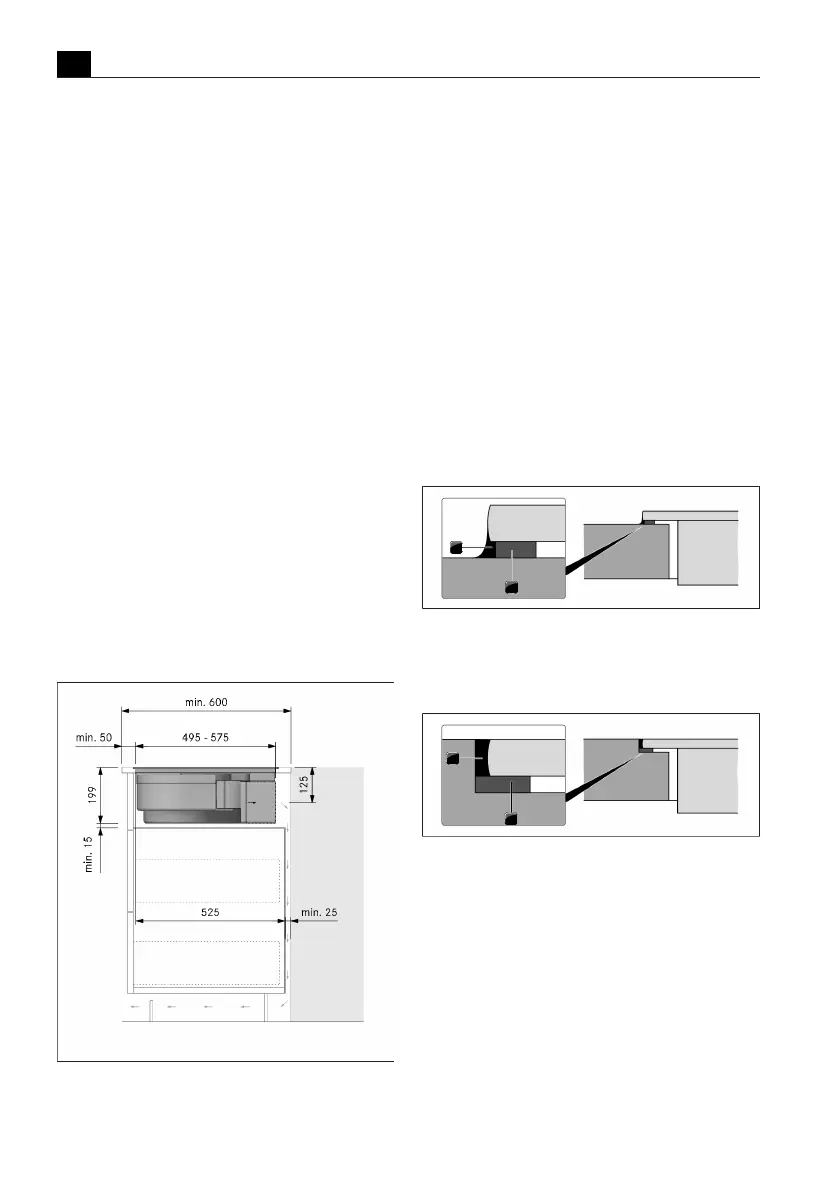

Fig.9.23
Installation dimensions for recirculation
installation variant B, depth of worktop 600 mm
Adjusting the back panel of the unit
u Adapt the back panel according to the required
installation dimensions.
u If necessary, move the back panel.
u Adjust the height of the back panel to the false floor
so that they are flush with one another.
9.7.7 Preparing the cooktop
Attaching the sealing tape
u In the case of surface mounting, attach the enclosed
sealing tape around the outer edges of the underside
of the cooktop. Do not leave any gaps.
u In the case of flush installation, attach the sealing
tape to the horizontal cutting edge in the worktop
cut-out, even if you are sealing the cooktop with a
silicone sealing compound or similar.
1
2
Fig.9.24
Sealing tape in the case of surface mounting
[1]
Black, heat-resistant silicone sealant
[2]
Sealing tape
1
2
Fig.9.25
Sealing tape in the case of flush installation
[1]
Black, heat-resistant silicone sealant
[2]
Sealing tape
9.7.8 Inserting the cooktop –
recirculation
u Before inserting the cooktop, remove the air inlet
nozzle and the stainless steel grease filter.
u Remove the protective film from the adhesive tape
on the front of the telescopic pull-out.

bora S Pure Specifications

General

Number of Cooking Zones	4
Control Type	Touch control
Power Levels	9
Frequency	50/60 Hz
Type	Induction
Supply Voltage	220-240 V
Safety Features	Child Lock
Installation Type	Built-in
