Installation
EN
bora.com 141
u Use the inlet opening as a handle during insertion.
u Keep the cooktop straight as you lift it into the
worktop cut-out.
u Insert the cooktop into the centre of the worktop
cut-out.
u Precisely align the cooktop.
1 2 3 4 5

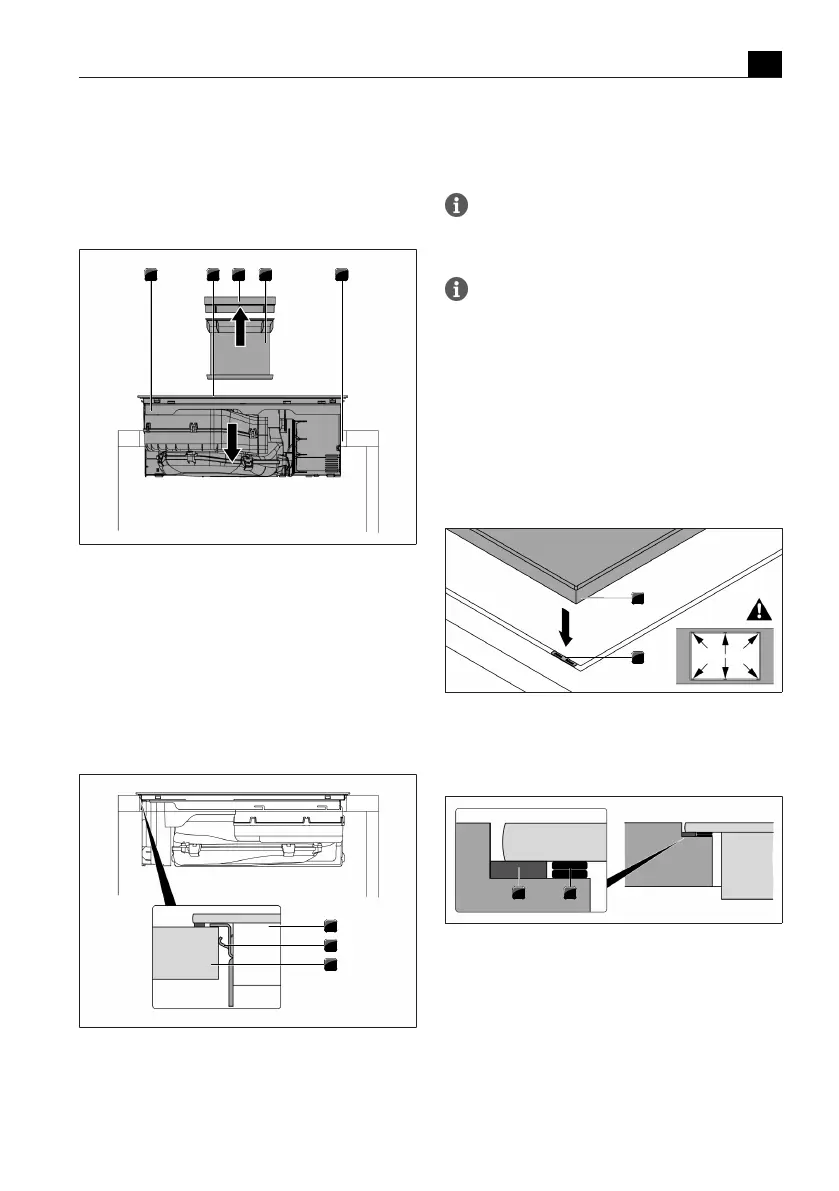

Fig.9.26
Inserting the cooktop
[1]
Cooktop
[2]
Inlet opening
[3]
Air inlet nozzle
[4]
Stainless steel grease filter
[5]
Worktop cut-out
u When aligning the cooktop, ensure that the holding
clamps hold the cooktop in the worktop.
1
2
3
Fig.9.27
Securing the cooktop
[1]
Cooktop
[2]
Holding clamp
[3]
Worktop
Make sure that the cooktop sealing tape is flat
against the worktop in the case of surface
mounting.
Make sure that the cooktop sealing tape is well
sealed all the way round in the case of flush
installation.
Height adjustment plates for flush installation
(optional)
T The height adjustment plates are self-adhesive to
prevent slipping during installation.
u If applicable, insert the height adjustment plates.
u Place the height adjustment plates next to the
sealing tape.
1
2
Fig.9.28
Inserting height adjustment plates
[1]
Cooktop
[2]
Height adjustment plate
1 2
Fig.9.29
Height adjustment plates
[1]
Sealing tape
[2]
Height adjustment plate
