bora S Pure - Symbols

Appliance description
EN
106 bora.com

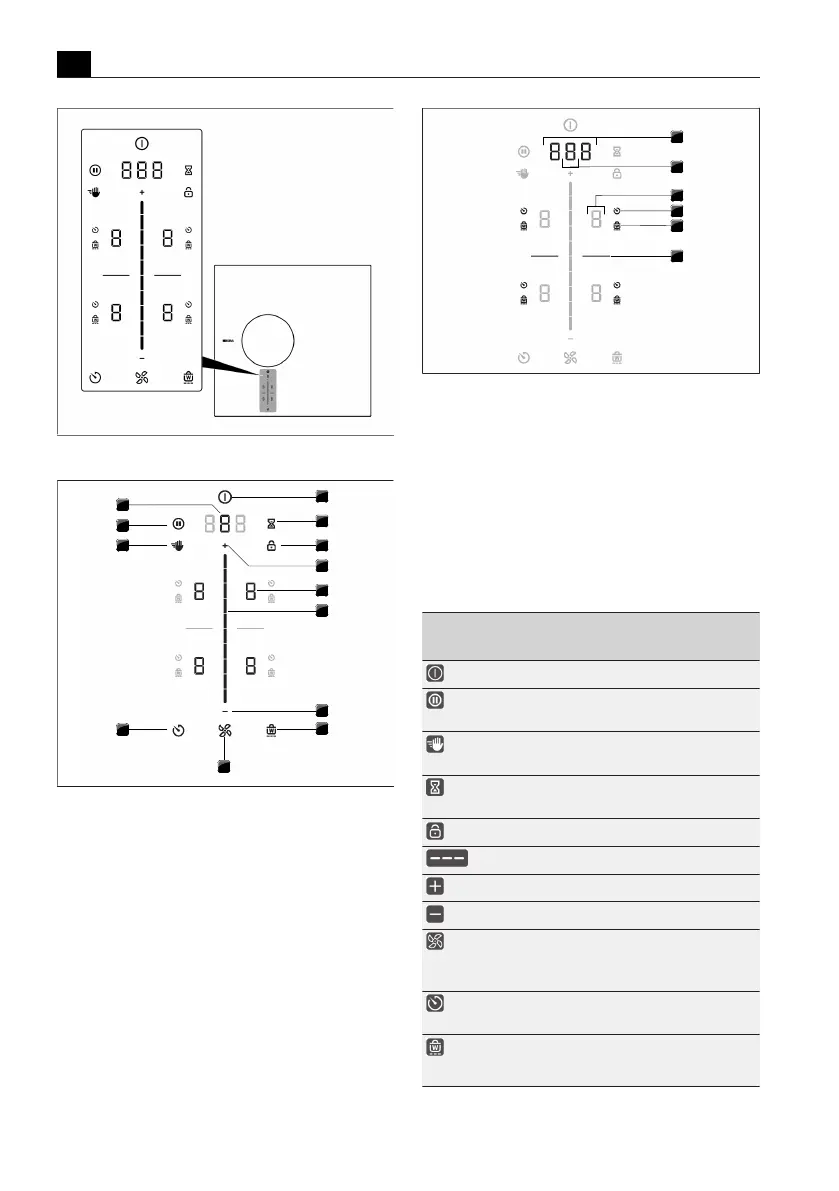

Fig.4.4
Central touch/slider operating panel
1
2
3
4
5
6
7
8
9
10
11
12
13
Fig.4.5
Touch zones/buttons
[1]
Switching on/off
[2]
Short-time timer (egg timer)
[3]
Operating lock
[4]
Plus setting area
[5]
Cooking zone selection (x 4)
[6]
Touch slider (setting area)
[7]
Minus setting area
[8]
Heat retention function
[9]
Fan functions
[10]
Cooking zone timer
[11]
Cleaning lock
[12]
Pause function
[13]
Select fan/Call up menu
1
2
3
4
5
6
Fig.4.6
Indicator zones
[1]
Multi-function display
[2]
Fan display
[3]
Cooking zone indicator (x 4)
[4]
Cooking zone timer indicator (x 4)
[5]
Heat retention function indicator (x 4)
[6]
Dividing line
4.2.3 Symbols
General
symbols
Designation Function/operation
Power button Switching on/off
Pause button Activating/deactivating the
pause function
Cleaning button Activating/deactivating the
cleaning lock
Short-time timer
button
Setting the short-time timer
(egg timer)
Lock button Control lock
Slider Setting values
Plus button Increasing values
Minus button Decreasing values
Fan button Activating/deactivating the
automatic extractor function,
cancelling the after-run function
Timer button Setting the cooking zone
timer
Warming button Heat retention function
activation/deactivation
Tab.4.2
Meaning of the symbols displayed (icons)
