Installation
EN
136 bora.com

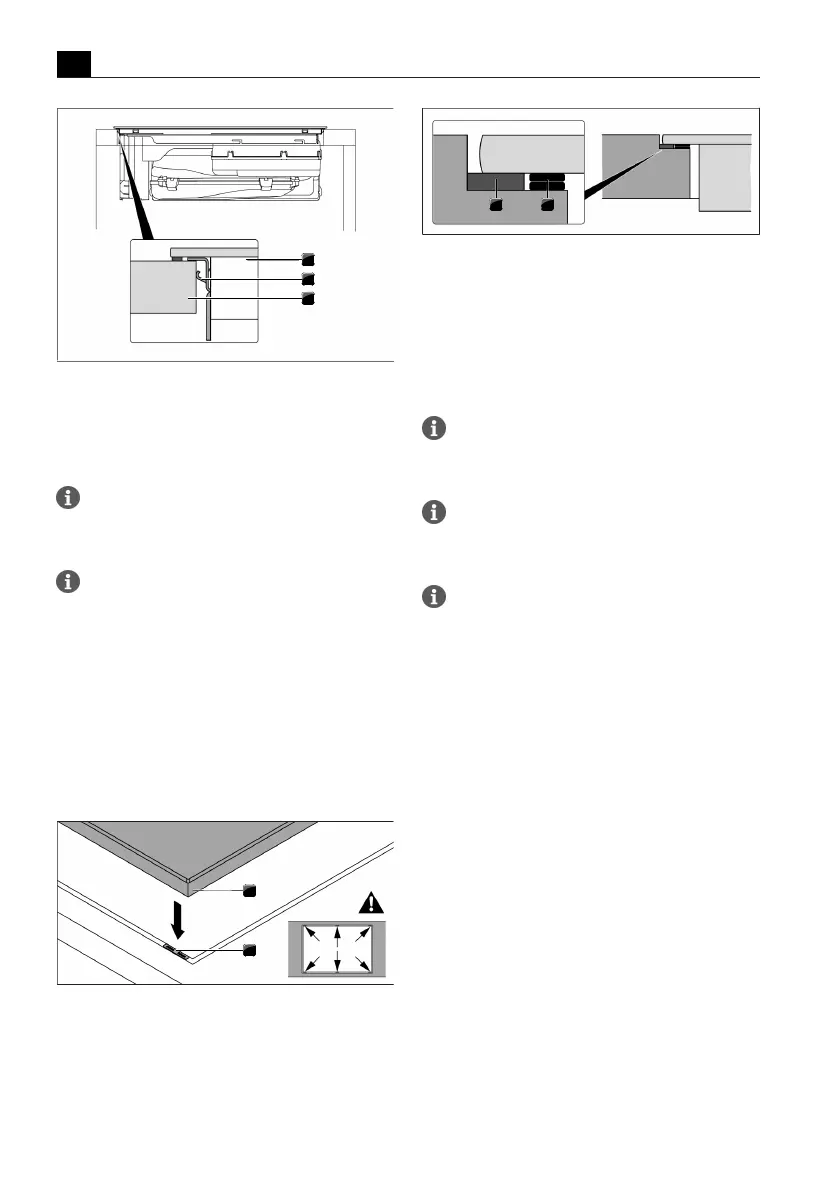

Fig.9.13
Securing the cooktop in the middle
[1]
Cooktop
[2]
Holding clamp
[3]
Worktop
Make sure that the cooktop sealing tape is flat
against the worktop in the case of surface
mounting.
Make sure that the cooktop sealing tape is well
sealed all the way round in the case of flush
installation.
Height adjustment plates for flush installation
(optional)
T
The height adjustment plates are self-adhesive to
prevent slipping during installation.
u
If applicable, insert the height adjustment plates.
u
Place the height adjustment plates next to the
sealing tape.
Fig.9.14
Positioning the height adjustment plates
[1]
Cooktop
[2]
Height adjustment plate
Fig.9.15
Height adjustment plates
[1]
Sealing tape
[2]
Height adjustment plate
9.6.5
Connecting the appliance to
the duct system
The duct system must be fitted to the appliance
free of load and with the power supply switched
off.
For correct installation, the drawers of the floor
unit must be shortened depending on the
installation situation.
When attaching the seals, ensure that an
airtight seal is created with the connecting duct
piece when the seals are compressed.
u
Use only BORA Ecotube duct parts.
u
Do not use flexible or fabric hoses.
u
Pull the seal onto the exhaust opening on the
appliance. The seal will need to be stretched slightly.
u
Push the duct part to be connected with the coupling
onto the exhaust opening with the seal.
u
Ensure that the seal is not displaced.
