bora S Pure - Making a Connection with the Back Panel in Installation Variant a; Inserting the Activated Charcoal Filter

Installation
EN
142 bora.com

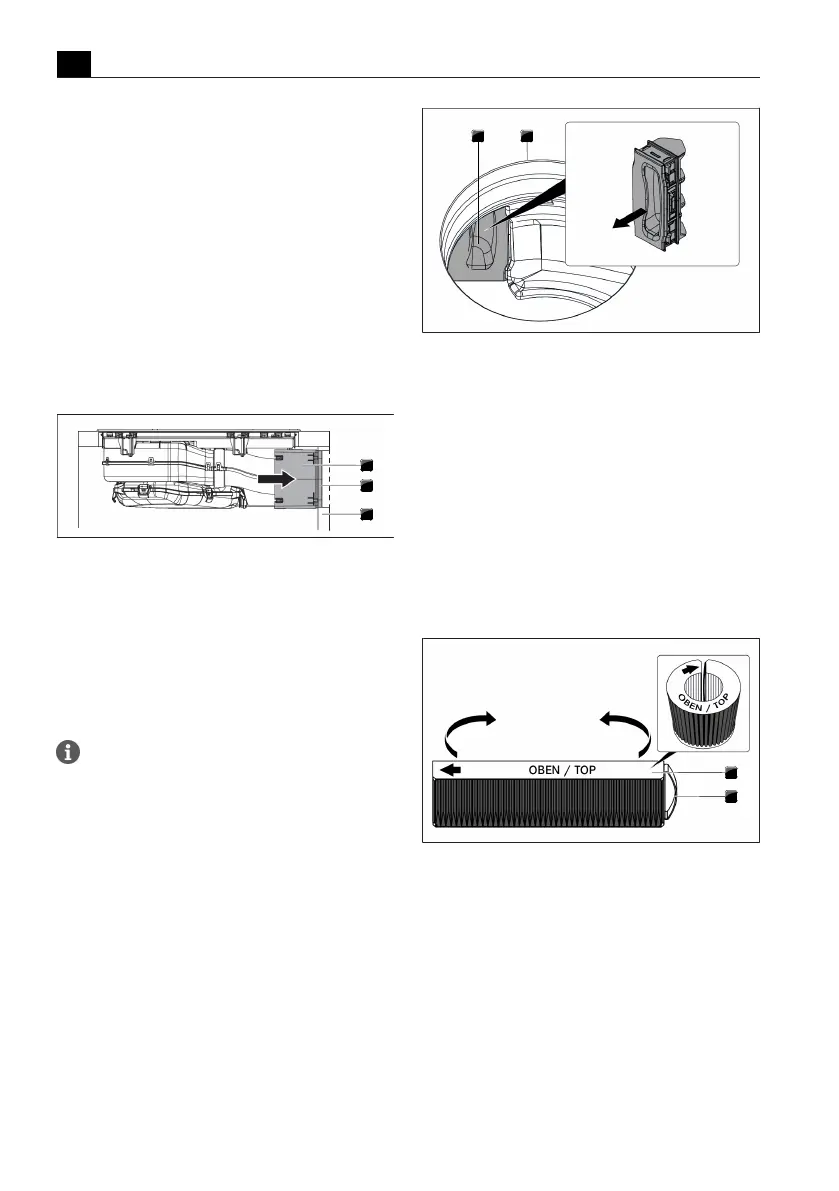

9.7.9 Making a connection with the
back panel in installation
variant A
u Push the telescopic pull-out until it is tight up against
the back panel of the unit.
T With the telescopic pull-out the distance to the back
panel of the unit can be flexibly bridged.
u Check that the telescopic pull-out fits accurately, is
flush with the cut-out on the back panel of the unit
and closes it off.
u Secure the telescopic pull-out to the back panel of
the unit using the adhesive tape.
1
2
3
Fig.9.30
Making a connection with the back panel
[1]
Telescopic pull-out
[2]
Adhesive tape
[3]
Back panel of unit
9.7.10 Inserting the activated
charcoal filter
To remove the filter see “8.6 Changing the
activated charcoal filter”
u Inside the inlet opening pull the filter replacement
cover out through the opening in the filter housing.
1 2
Fig.9.31
Remove the filter replacement cover
[1]
Filter replacement cover
[2]
Inlet opening
u Remove the packaging from the activated charcoal
filter.
u Position the activated charcoal filter correctly with
the help of the printed symbols (arrow left, grip strap
right).
u Hold the activated charcoal filter at both ends.
u Bend the activated charcoal filter into a cylindrical
shape so that both ends of the filter are opposite
each other.
1
2
Fig.9.32
Activated charcoal filter
[1]
Activated charcoal filter
[2]
Grip strap
u Tilt the activated charcoal filter towards you slightly
and insert it through the inlet opening.
u Guide the left end of the filter into the opening in the
filter housing.
