Installation
EN
144 bora.com
u Connect the cooktop exclusively via a fixed
connection to an H 05 VV-F power supply cable with
corresponding minimum cross-section.
Connection Fuse protection Minimum cross-
section
Three-phase
connection
3 x 16 A 2.5mm²
Two-phase
connection
2 x 16 A 2.5mm²
One-phase
connection
1 x 32 A 4mm²
Tab.9.2
Fuse protection and minimum cross-section

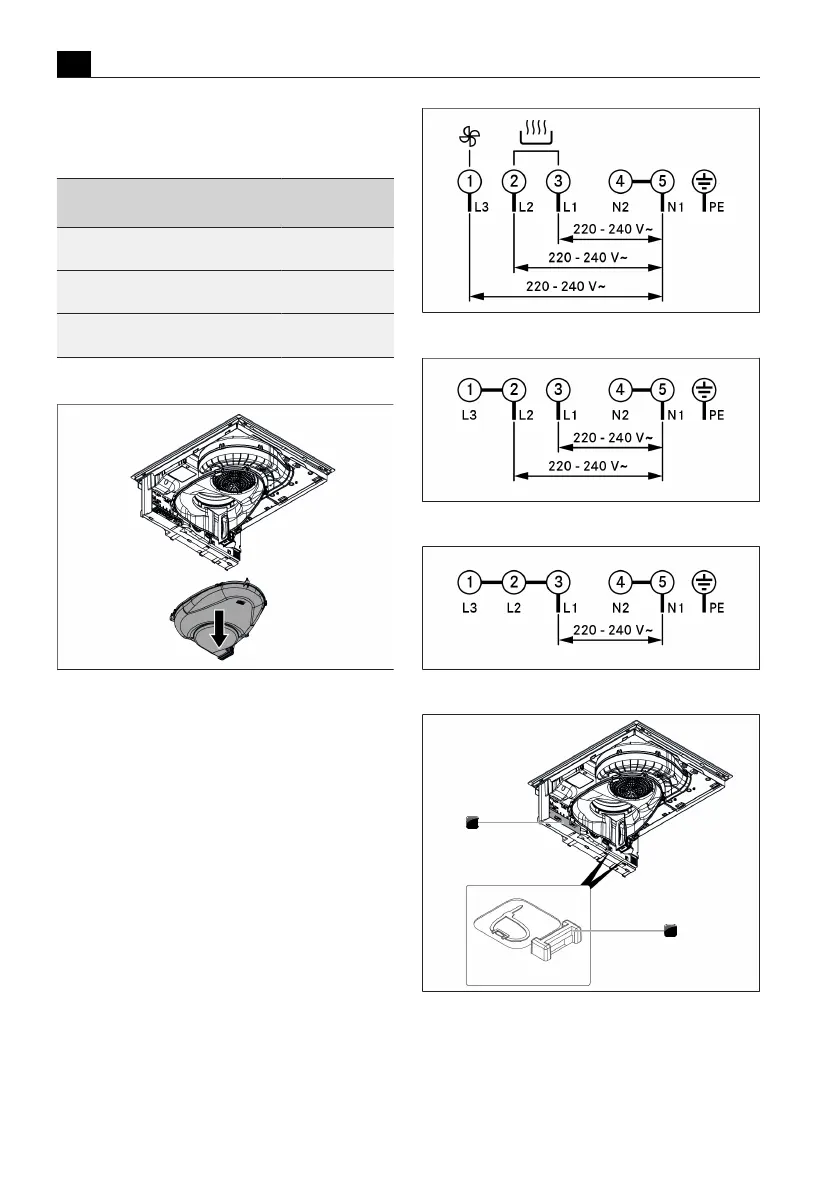

Fig.9.37
Removing the bottom of the suction chamber
u Connect the power supply cable to the power supply
of the appliance in accordance with the relevant
connection diagram (see Fig. Connection diagram or
underside of appliance).
u For a single-phase or two-phase connection, connect
the relevant contacts using the bridge provided (in
scope of delivery).
u Secure the connection cable with the strain relief
clamp (in scope of delivery).
u Close the power supply housing with the power
supply cover (in scope of delivery).
u Lay the connection cable along the mounting eyes
with the help of the cable ties (in scope of delivery).
u Ensure that the cable is not trapped or damaged and
is not able to come into contact with any hot areas
on the cooktop.
u Check that installation has been carried out
correctly.
Fig.9.38
Connection diagram – three-phase connection
Fig.9.39
Connection diagram – two-phase connection
Fig.9.40
Connection diagram – one-phase connection
1
2
Fig.9.41
Electrical connections of the cooktop
[1]
Power supply cover
[2]
Mounting eyes
