Solution 6000
Installation Manual Installing the Hardware
2-6
Bosch Security Systems 07/14 BLCC610I

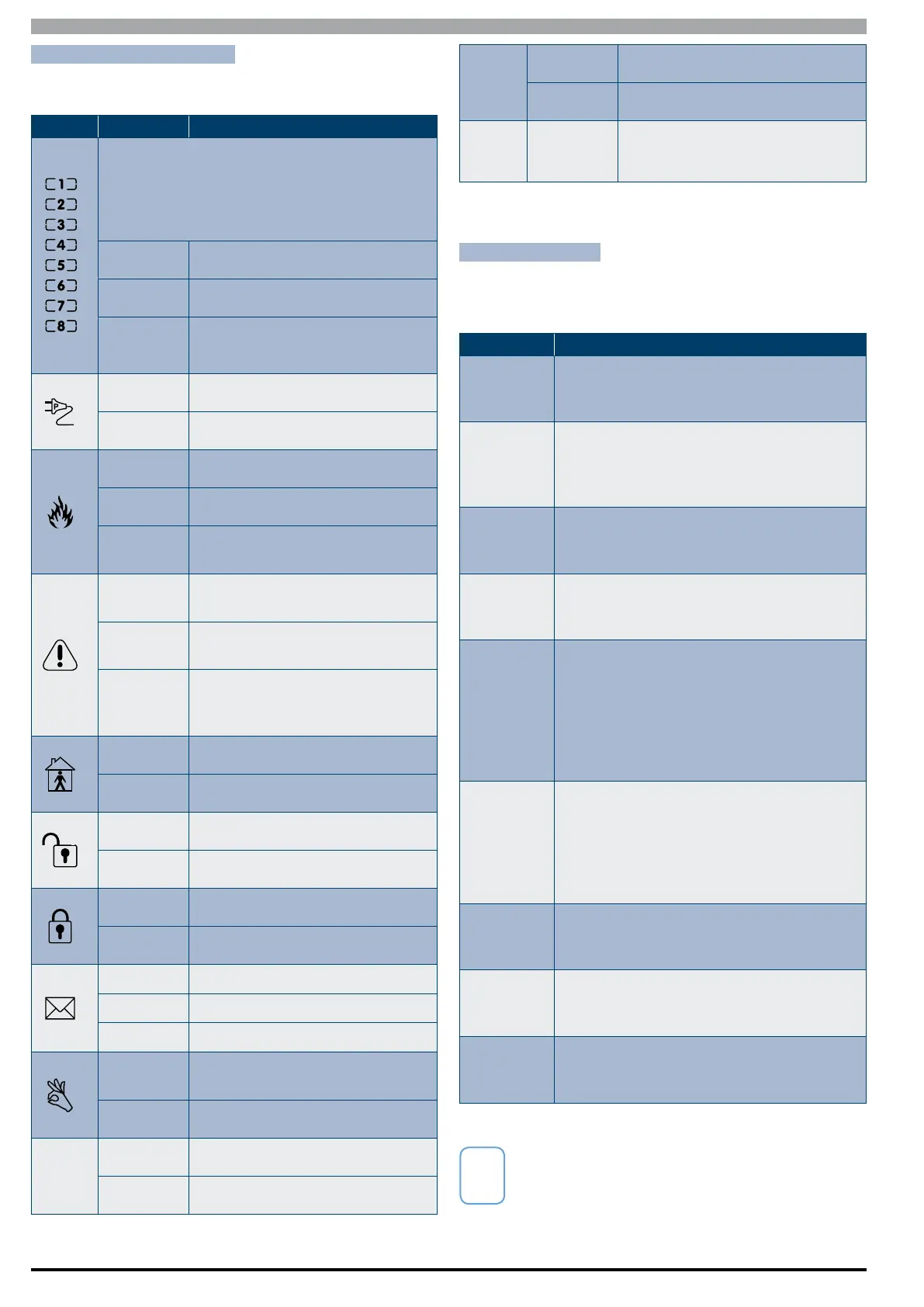

STATUS ICONS / LED’S
The following table lists the function of each of the ICON
symbols and LED indicators on the keypad display.
Icon Status Meaning
The keypad can be programmed to display area
icons (1 to 8) that allow users to easily identify
which areas have been turned on or off without
the need to toggle between areas (See MENU 6-1-
4).
On The area is turned All On or Part On
Off The area is turned Off
Flashing
Fast
The area has an alarm
On System power is normal
Flashing System power is missing
Flashing A fire alarm is active
Off No fire alarm
On
Fire alarm in memory (Turn the area
All On and Off to Clear).
On
The existing service or trouble con-
dition has been acknowledged.
Off
No service or trouble conditions
exist
Flashing
A service or trouble condition is
present that has not been acknowl-
edged.
On The area is turned Part On.
Off The area is not turned Part On.
On The area is turned off.
Off The area is turned All On or Part On
On
The area is turned All On or Part On
Off The area is turned Off
On
All messages have been read.
Off Message queue is empty
Flash An unread message is in the queue.
On
Area is ready to turn on
(All On / Part On)
Off Not ready, Zone Open
Red
LED
On All On
Flashing Alarm
Green
LED
On Area is off.
Flashing Area not ready to turn on
Red &
Green
LED
Flashing
Installer programming mode is
active.
Table 5: ICON & LED Indicator Meanings
KEYPAD TONES
All keypads emit several distinct tones and display text
to alert you to system events. The volume of the keypad
tones can be adjusted in MENU 6-0-7.
Type Meaning
Fire
Alarm
Tone
When a fire zone sounds an alarm, the keypad
will sound 3 seconds on and 2 seconds off
(repeat).
Burglary
Alarm
Tone
When a burglary zone activates while your
system is turned on, your keypad emits a
continuous siren tone. It sounds for the time
set by your security company.
Trouble
Tone
When a system component is not functioning
properly, your keypad sounds 4 fast short
beeps followed by a 5 second pause (repeat).
Key Press
Tone
Pressing any key on the keypad sounds one
short beep, indicating that the key press is
accepted.
Entry
Delay
Tone
When you enter the premises through a zone
programmed for entry delay, the keypad
sound a Hi/Low tone to remind you to turn off
the area. If the area is not turned off before
the entry delay expires, an alarm condition will
sound and a report may be sent to your alarm
company.
Exit
Delay
Tone
After you turn an area All On, the keypad will
sound 1 short beep every second. During the
last 10 seconds fast short beeps will be heard.
If you don’t exit before the delay time expires
and an exit delay door is faulted, an alarm
occurs.
Error
Tone
If you enter an incorrect value when
programming, the keypad will sound a 2
second tone.
Menu
Mode
The keypad will sound a Lo/Hi tone to indicate
you have entered MENU Mode and a Hi/Lo
tone to indicate you have exited MENU mode.
Chime
Tone
The keypad sounds fast short beeps to alert
you when a zone programmed for chime is
faulted or unsealled.
Table 6: Keypad Tones
In previous versions, when a user turns an area off
at a keypad and a trouble condition is present, the
keypad would display a trouble pop-up box, but the
RED status led may fail to turn off.
