Bosch SOLUTION 6000 Installation Guide

3-1
Bosch Security Systems 07/14 BLCC610I

SECTION 3
Wiring Diagrams

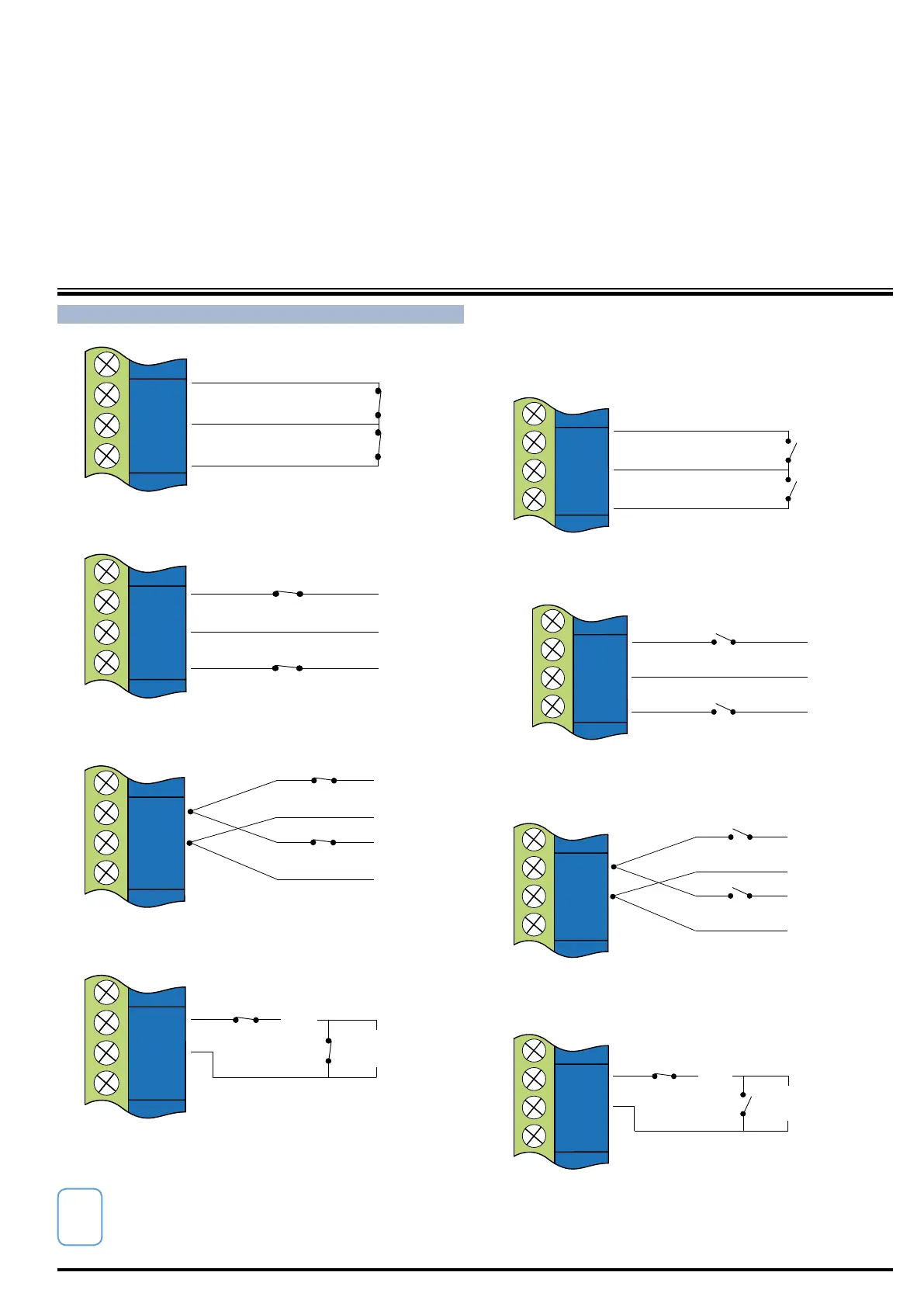

ZONE WIRING
ZONE 2
N/C
N/C
ZONE 1
ZN 1
GND
ZN 2
Figure 13: N/C No EOL Zone
ZONE 2
ZONE 1
N/C
N/C


ALARM
ALARM
ZN 1
GND
ZN 2
Figure 14: N/C Single EOL Zone
(6K8 EOL)
(3K3 EOL)
N/C
N/C


ALARM
ALARM
ZN 1
GND
ZN 2
ZONE 1
ZONE 9
Figure 15: N/C Split EOL Zone
1
2
TAMPER
(6K8 EOL)
TAMPER
(3K3 EOL)
N/C
N/C


ZN 1
GND
ZN 2
ALARM
ZONE 1
Figure 16: N/C Zone With Tamper
i
Note
The Above diagrams display the zone wiring
configurations using Normally-Closed Alarm
contacts and Normally-Open Alarm Contacts. When
using Normally-Open Alarm Contacts you must
select Inverted Seal for each zone in MENU 3-1-8.
A shorted loop is a tamper condition for all EOL zone
configurations. .
2
ZONE 2
N/O
N/O
ZONE 1
ZN 1
GND
ZN 2
Figure 17: N/O No EOL Zone
ZONE 2
ZONE 1
N/O
N/O


ALARM
ALARM
ZN 1
GND
ZN 2
Figure 18: N/O Single EOL Zone
(6K8 EOL)
(3K3 EOL)
N/O
N/O


ALARM
ALARM
ZN 1
GND
ZN 2
ZONE 9
ZONE 1
Figure 19: N/O Split EOL Zone
TAMPER
(6K8 EOL)
TAMPER
(3K3 EOL)
N/C
N/O


ZN 1
GND
ZN 2
ALARM
ZONE 1
Figure 20: N/O Zone With Tamper

Bosch SOLUTION 6000 Specifications

General

Partitions	8
System Type	Hybrid wired/wireless security system
Keypads	Up to 16
Communication	PSTN, optional IP module, optional GSM/GPRS module
Arming Modes	Stay, Away
Power Supply	16.5VAC
Backup Battery	12V 7Ah
Operating Temperature	0°C to +50°C
