1-13

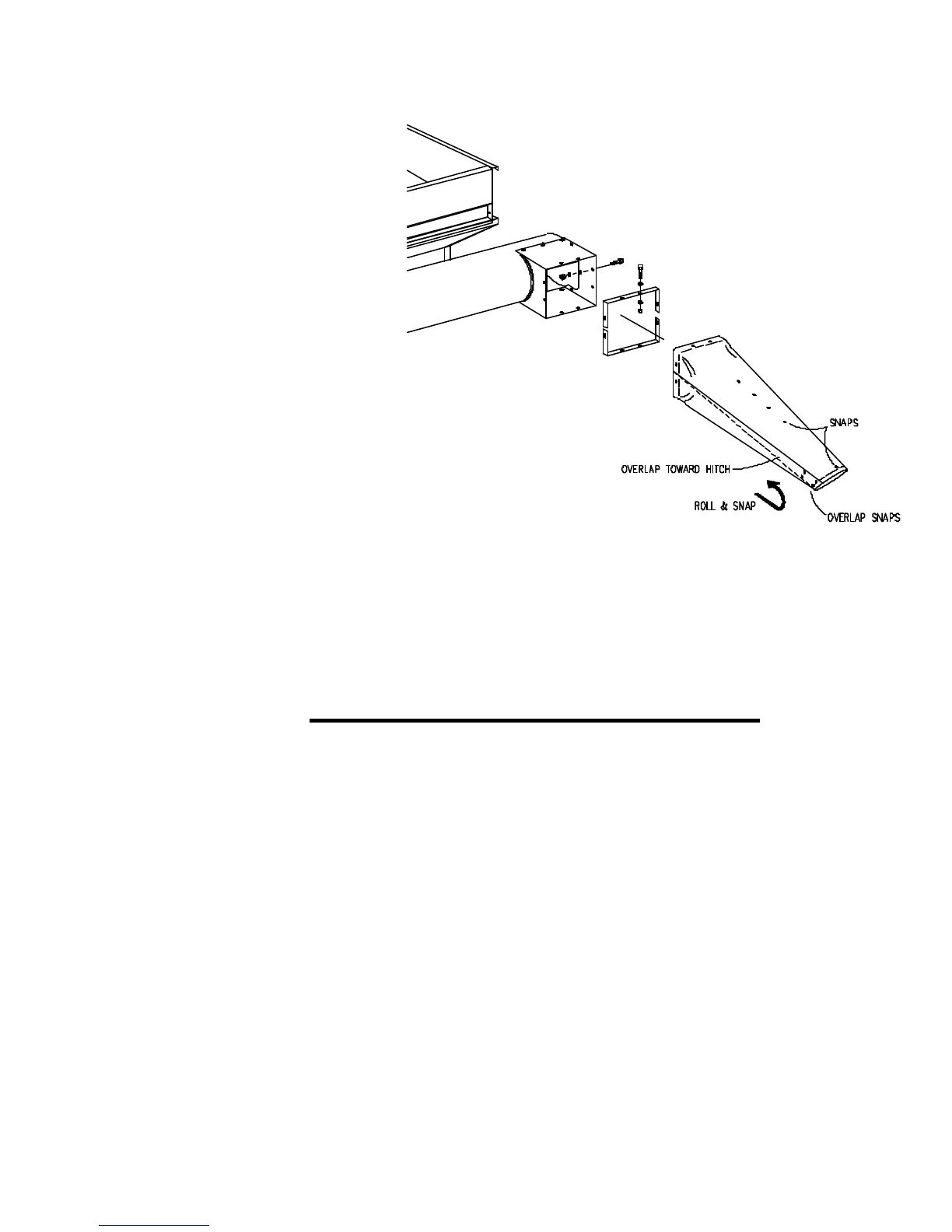

ADJUSTABLE UNLOADING CHUTE (OPTIONAL)
250957
INSTALLATION:
1. Remove existing chute.
2. Fold overlap and snap four end snaps.
3. Slide chute over outlet shroud with
overlap towards hitch.
4. Install top and bottom strips over chute
and fasten with existing capscrews,
flatwashers and locknuts.
5. To adjust to desired length, unsnap
overlap, roll chute on outside and snap
in place.
SCALE WEIGHING PROCEDURE
Turn scale on and let it warm-up at least 15 minutes.
Zero balance scale by pushing the "Net/Gross" button, and then the "Zero" button
within 3 seconds. This should be done where cart is going to be unloaded (on level
ground if possible).
Load cart and let scale total up weight. When cart is full drive up to truck and stop.
After scale settles on a number, push the "Tare" button. Scale indicator will show zero.
Now start unloading cart. When truck is full or cart is empty, the negative amount
shown on scale is actual product in truck.
Now push the "Net/Gross" button. This will put the scale back into the gross
weighing mode again. If the cart has grain in it yet, it will tell you how much weight is
left on the cart. You can now load the cart again and repeat the same unloading pro-
cess. You should try to get the cart empty a few times during the day so you can rebal-
ance the scale.
• 06-30-00
