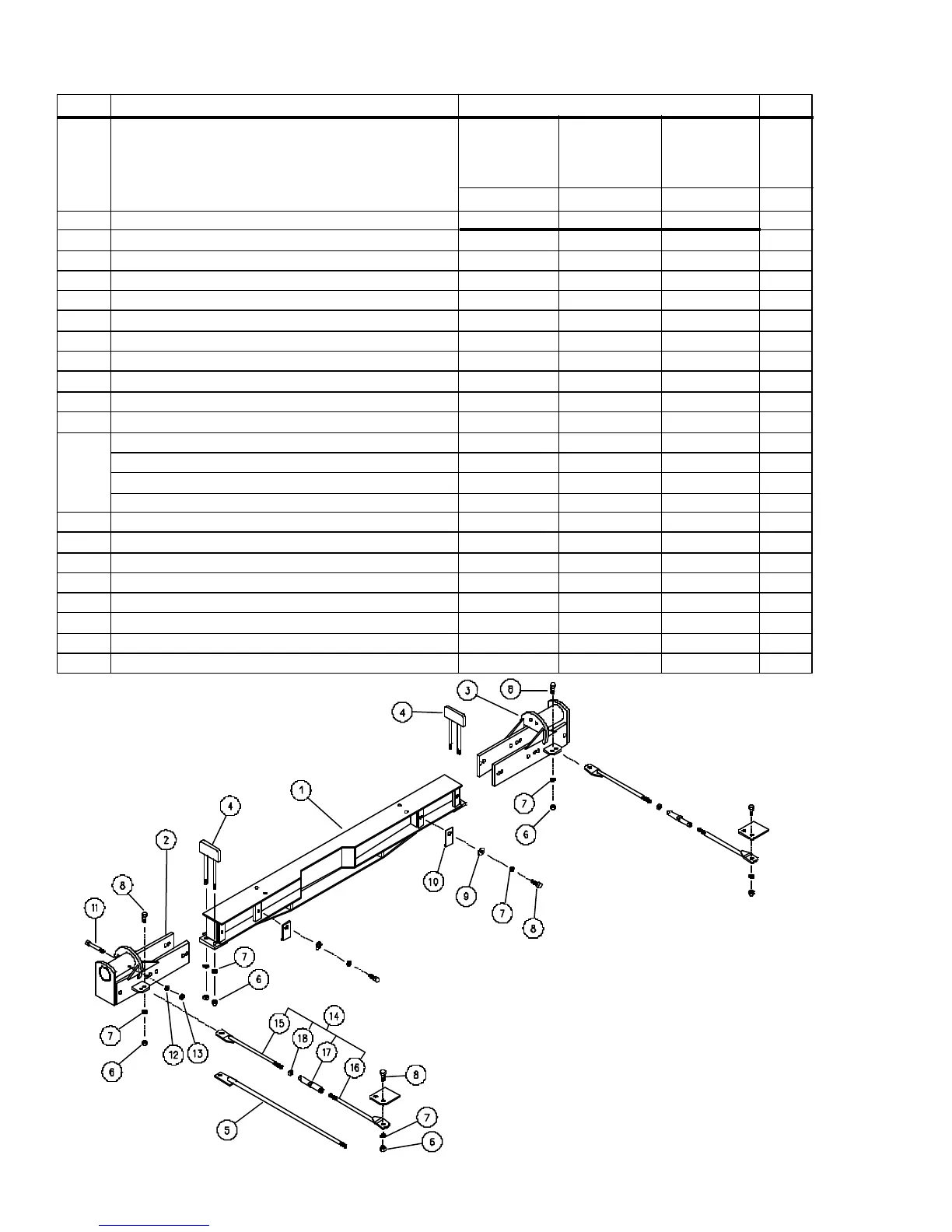

MODEL 672 & 674 ADJUSTABLE AXLE - 120"-150"
Trussed Style - For Replacement Only
250921
• 12-19-01
Singles Duals Duals
120-144 120-150 120-150
Spindles 2 7/8" 4 1/2" 3 3/4"
Axle Assembly 200254 200090 200222 1
1 Axle Weldment 200107 200108 200108 1
2 RH Axle End 200102 200105 200223 1
3 LH Axle End 200103 200106 200224 1
4 Pull Down Weldment 200110 2
5 Axle Brace, 58 1/2" Overall 200173B > > AR
6 Nut, 1" Hex 9394-020 > > 6
7 Lockwasher, 1" 9404-041 > > 12
8 Bolt, 1-8 UNC x 3 9390-187 > > 10
9 Flatwasher, 1" 9405-117 > > 8
10 Axle Shim, 1/16 Thick 200112 > > VAR
Axle Shim, 1/8" Thick 200113 > > VAR
Axle Shim, 3/16" Thick 200114 > > VAR
Axle Shim, 1/4" Thick 200115 > > VAR
11 Capscrew, 5/8-11 UNC x 6 9390-136 > > 2
12 Lockwasher, 5/8 9404-029 > > 2
13 Nut, 5/8-11 UNC 9394-014 > > 2
14 Axle Brace Assembly, Incl. 15-18 250608B 2
15 Axle Brace, RH Thread 250636B 1
16 Axle Brace, LH Thread 250637B 1
17 Center Turnbuckle 62324 1
18 Jam Nut, 1 1/4-7 UNC 9395-041 1
•
ITEM DESCRIPTION PART NO. QTY.
Beginning S/N
674 - B1651100
& 672 - B1649100
- 3 3/4" Spindles -
674 S/N B1651099
& 672 - S/N B1649099
& Lower
- 4 1/2" Spindles -
•
•
•
•
To Next Page
