2-17
250964

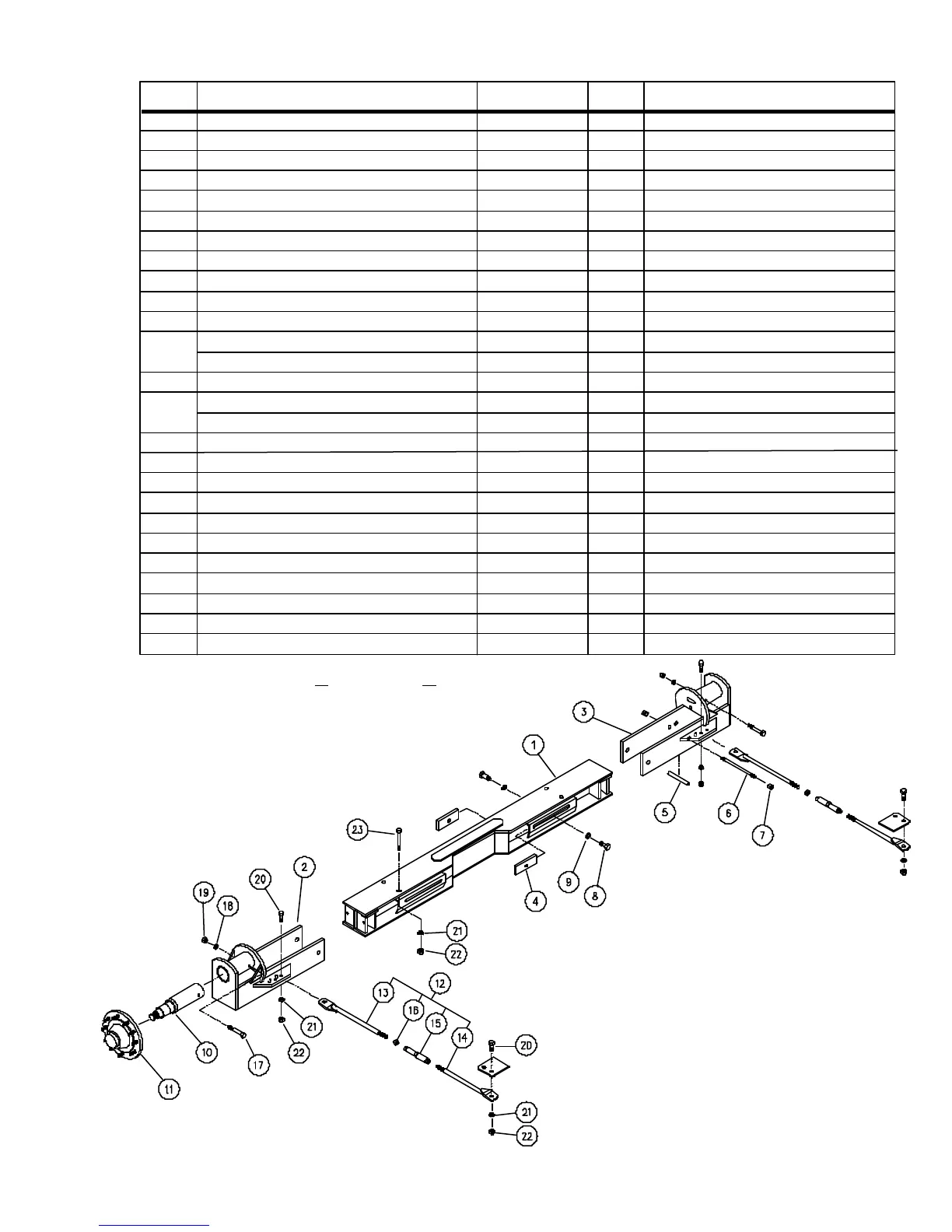

MODEL 672 & 674 ADJUSTABLE AXLE - 120" - 154"
Adjustable Axle Assembly 250641* 1 Includes 1-9 & 21-23 - Option
Adjustable Axle Assembly 250640 1 Includes Items 1 thru 9
1 Axle Weldment 265627 1
2 RH Axle End 250670 1
3 LH Axle End 250670 1
4 Clamp Plate 265539B 4
5 Axle Spacer Pipe 265634B 2
6 Axle Stud 265635B 2 10 1/8 Lg.
7 Locknut, 3/4-10 UNC Hex 96732 4
8 Capscrew, 1-8 UNC x 3 9390-187 4
9 Lockwasher, 1" 9404-041 4
10 Spindle Assembly, 3-3/4" 250605 2 Incl. 250601, Nut, Washer, C'Pin
Spindle, Scale, 3-3/4" 9002009 2 Optional - See Page 2-20
11 Hub 200079 2 See Page 2-14
12 Axle Brace Assembly 250666 1 Incl. Items 13-16, 20-22
Axle Brace Assembly 250608B 2 Includes Items 13 - 16
13 Axle Brace, RH Thread 250636B 2 23 1/8"
14 Axle Brace, LH Thread 250637B 2 22 1/8"
15 Center Turnbuckle 62324 2
16 Jam Nut, 1 1/4-7 UNC 9395-041 2
17 Capscrew, 5/8-11 UNC x 6 9390-136 2
18 Lockwasher, 5/8" 9404-029 2
19 Nut, 5/8-11 UNC 9394-014 2
20 Capscrew, 1-8 UNC x 2 1/2 9390-185 4
21 Lockwasher, 1" 9404-041 8
22 Nut, 1-8 UNC Hex 9394-020 8
23 Capscrew, 1-8 UNC x 3 9390-187 4
ITEM DESCRIPTION PART NO. QTY. NOTES
• 09-04-01
NOTE: Items 5 & 6 must be used
when axle is set to 144" or greater.
* Specify Color as R for Red or G for Green
•
