1-16

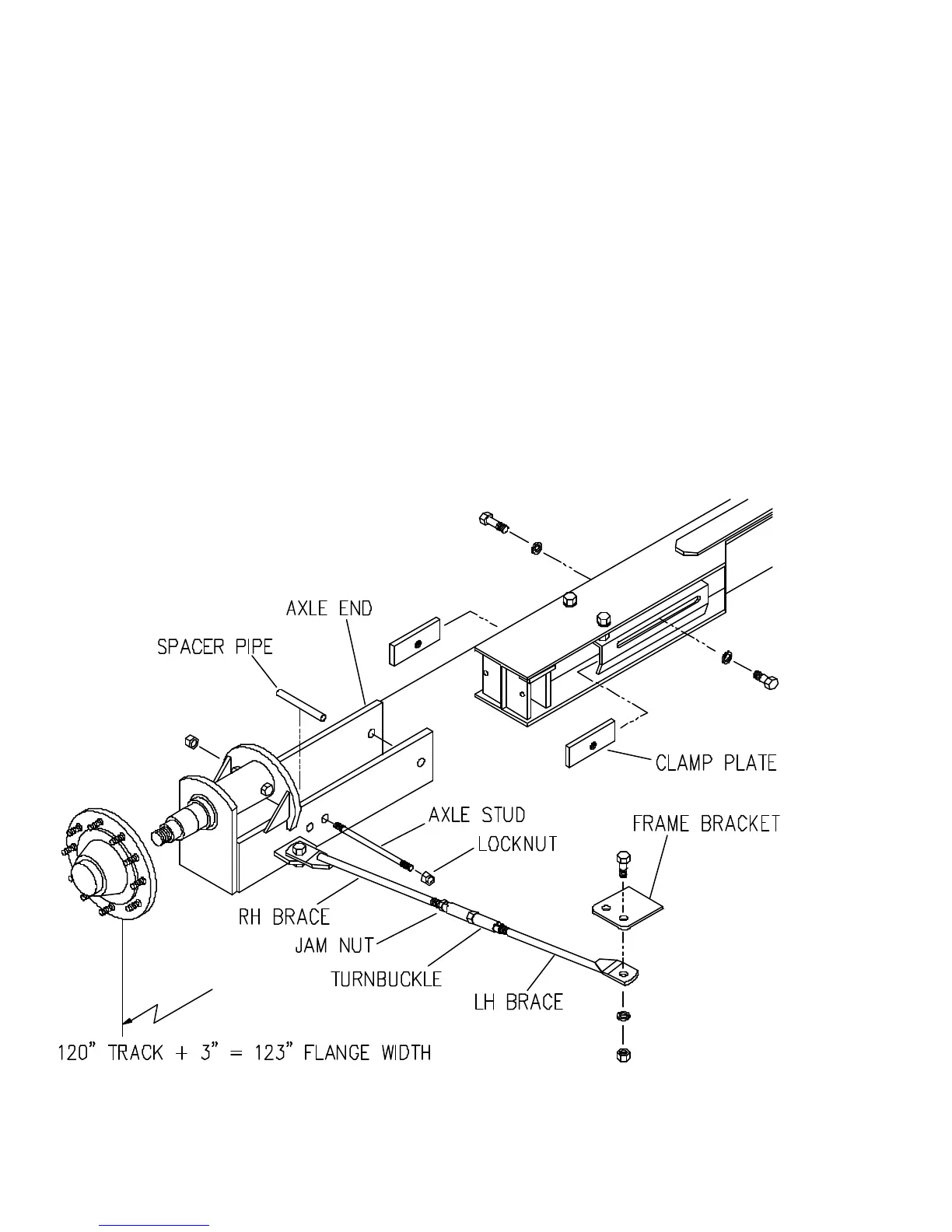

ADJUSTABLE AXLE - MODELS 672, 674
ADJUSTABLE AXLE (120" - 154")
1. Raise center axle weldment.
2. Loosen clamp plate capscrews on slotted slides of axle weldment
3, Extend axle to desired width and align holes for studs if greater than 144".
4. Remove axle stud and spacer pipe from storage brackets on rear of axle.
Install in outer set of holes for desired axle width.
5. For an axle width of 144" or greater, move axle brace assemblies from front to
rear holes on frame bracket. Loosen setscrews in turnbuckle and adjust to fit the
extended axle ends. Tighten setscrews.
250965
• 05-09-97
