1-22

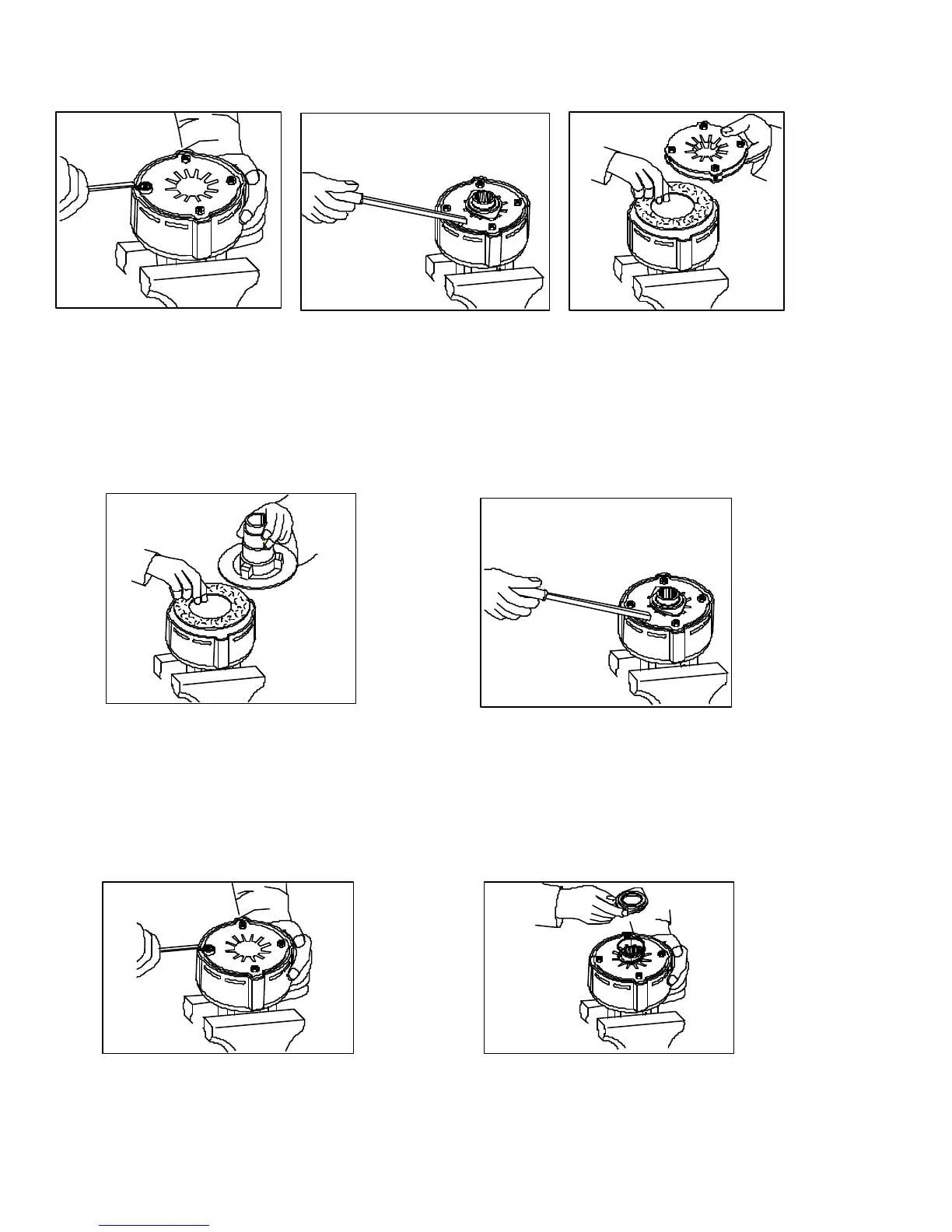

Tighten the four hex nuts (12)
uniformly until the clutch pack
and hub are loose.
Use special tool #9002007 to bend the retain-
ing lugs inward over the Belleville spring edges
to secure the springs when you back the four
hex nuts off. (Note: Wide lugs for one (1)
Belleville spring, narrow lugs for two (2)
Belleville springs)
With the lugs in place loosen the four hex nuts
completely to the end of the threaded studs.
Replace the quick-disconnect assembly.
Place hub and friction disks into the clutch
housing. Note that items #8 & 9 are only used
in the four plate clutch. Next compress the
Belleville spring(s) to the pressure plate by
tightening the four hex nuts and placing them
into the clutch housing as illustrated.
CLUTCH DISASSEMBLY
CLUTCH ASSEMBLY
Use special tool 9002007 to bend
all four retaining lugs back on the
edge of the clutch housing.
Remove the thrust plate with
Belleville springs to get at the
friction disks, drive plates and
hub for inspection and ser-
vice.
250959
