1-8
ELECTRICAL HOOK-UP
220913
220912
Your Grain Cart is supplied with a seven-point SAE connector plug which will adapt
to the receptacle found on several new tractors on the market today. If not available,
an SAE J S60A seven-point outlet socket can be purchased from your Unverferth
dealer (order Part #92824).
NOTE: It may be necessary to install a switch in the tractor to operate the auger light.

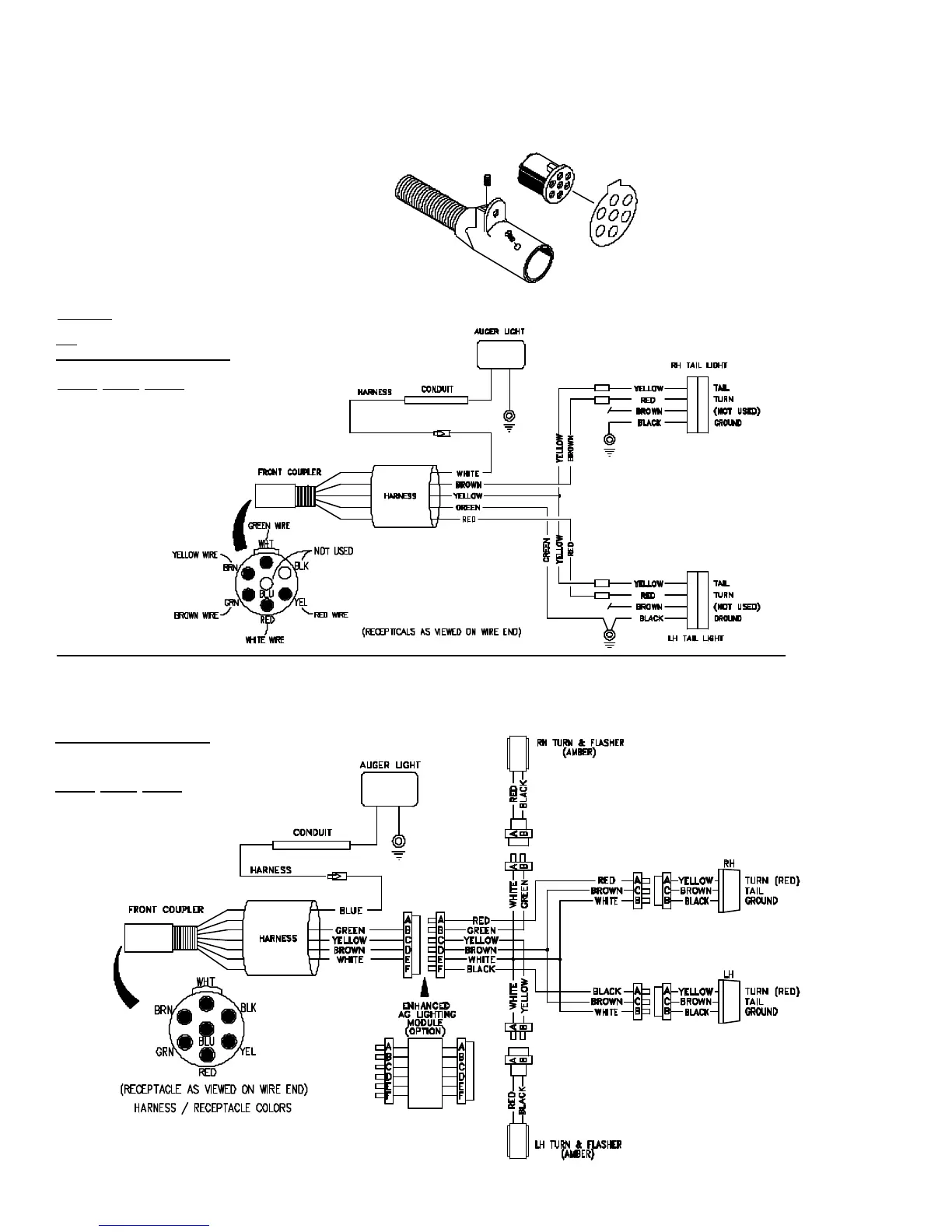

SAE SEVEN-POINT
CONNECTOR PLUG
672
674 S/N B19380099 & LOWER
674 BEGIN S/N B19380100
• 09-10-02
251908
GRAIN CART WIRES
Green -- Ground
Brown -- RH amber flasher
Red -- LH amber flasher
White -- Auger light
Yellow -- Tail light
GRAIN CART WIRES
White -- Ground
Green -- RH amber flasher
Yellow -- LH amber flasher
Brown -- Tail light
Red -- RH red flasher
Black -- LH red flasher
Blue -- Auger light
The following schematic complies with ASAE Standard S279.11 for new production
tractors. NOTE: Wiring specifications may be different for older tractor models. Consult
your tractor operator's manual or dealer for proper wiring and installation.
To Next Page
