LUBRICATION AND MAINTENANCE
To keep your grain cart in top operating condition and to assure its proper
performance and reliability for a long period of time, a periodic inspection and
lubrication is a must.
The lubrication locations and recommended schedule are as follows:
A. Three shots of grease weekly
B. See chart
C. Roll bearing and apply grease as required. Do not grease if cart has scale unit.
D. Replace every season, 1 1/2 pints 90 weight oil
E. One shot of grease daily
F. One shot of grease per season
G. Repack once every 2 years; adjust bearing take-up once per season
H. Three shots of grease per week
SERVICE TIPS
DRIVELINE
It is important to periodically check set screws
in all bearings at either end of the driveline
for tightness.
U-JOINT
The U-joint will give you several years of
service if the following steps are taken:
1. Grease joint weekly
2. Grease spline weekly
GEAR BOX
-- Fluid level plug is on the right side of
gear box
-- Fill plug is in front of the axle on the left
side of gear box (Standing behind the
cart looking toward the tractor)
For maximum gear box life:
-- Check oil level every 2 weeks
-- Replace oil every season, 1 1/2 pints 90
weight oil
AUGER SYSTEM
Annually check all bolts, nuts, and set screws.
Perform lubrication as specified. NOTE:

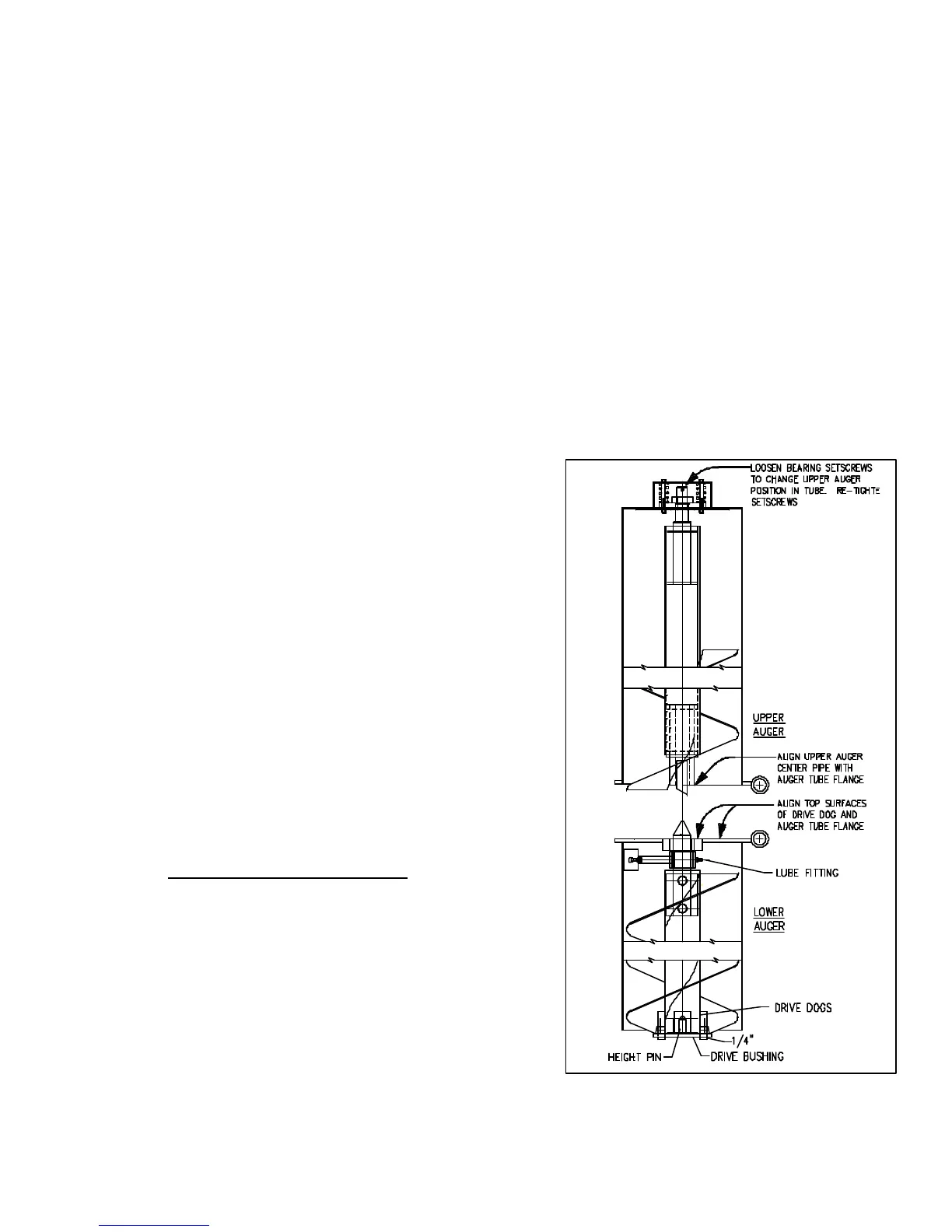

The lower auger position is indexed from the
drive dog / tube flange hinge surface as
shown. The lower drive dogs and height pin
are positioned relative to the gear box and drive bushing. The alignment height of
the auger can be changed by cutting loose and relocating the height pin.
