2-23
250987

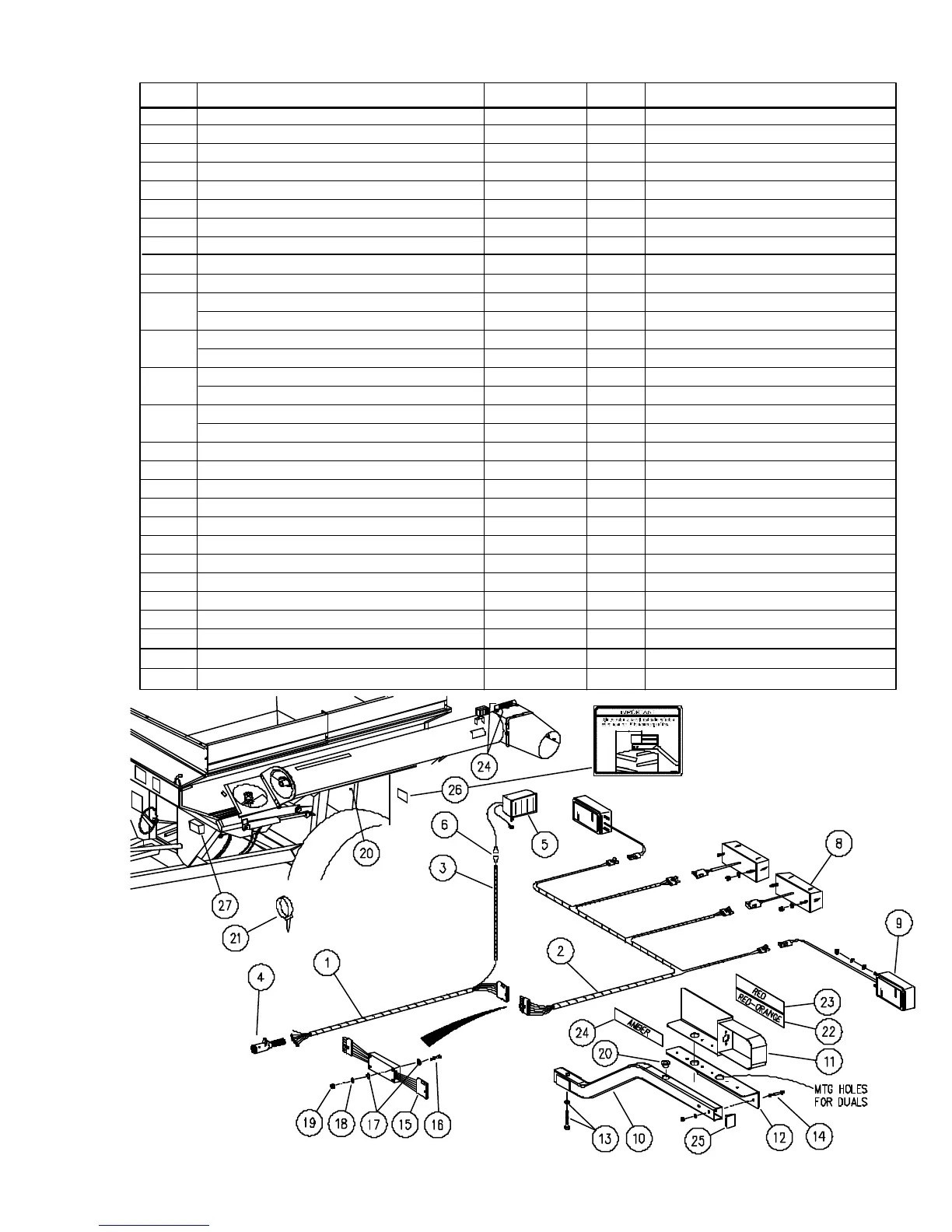

1 Wiring Harness, Front 9003509 1
2 Wiring Harness, Rear 9003510 1
3 Wiring Harness - Auger 9000375 1
4 Electrical Coupler 92450 1
5 Auger Light 9001155 1
6 Connector, Male 9001660 2
7 Not Applicable
8 Light, Red - Tail/Turn 9003136 2
9 Light, Amber - Turn/Flasher 9003048 2
10 Light Tube Weldment 251398B 2
11 LH Light Bracket Weldment (Shown) 251409B 1
RH Light Bracket Weldment 251408B 1
12 LH Plate 251406B 1
RH Plate 251407B 1
13 Capscrew, 1/2-13 UNC x 3 1/4 9390-108 2
Locknut, 1/2-13 UNC 9003397 2
14 Capscrew, 1/4-20 UNC x 2 9390-009 4
Locknut, 1/4-20 UNC 9936 4
15 Light Module 9003045 1
16 Machine Screw, #6-32 x 1 1/4 9401-010 2
17 Flatwasher 9405-040 4
18 Lockwasher, #6 9404-009 2
19 Nut, #6-32 UNC 9830-013 2
20 Grommet 9001816 8
21 Cable Tie 9000106 11
22 Fluorescent Strip, Red-Orange 9003125 2 2 x 9"
23 Red Reflector 9003126 2 2 x 9"
24 Amber Reflector 9003127 4 2 x 9"
25 Tube Plug 9003515 2
26 Decal, Light Placement 9003518 1
27 Scale Unit Page 2-22 Option
ITEM DESCRIPTION PART NO. QTY. NOTES
BEGIN SERIAL #B19380100
• 09-10-02
•
•
To Next Page
