1-20

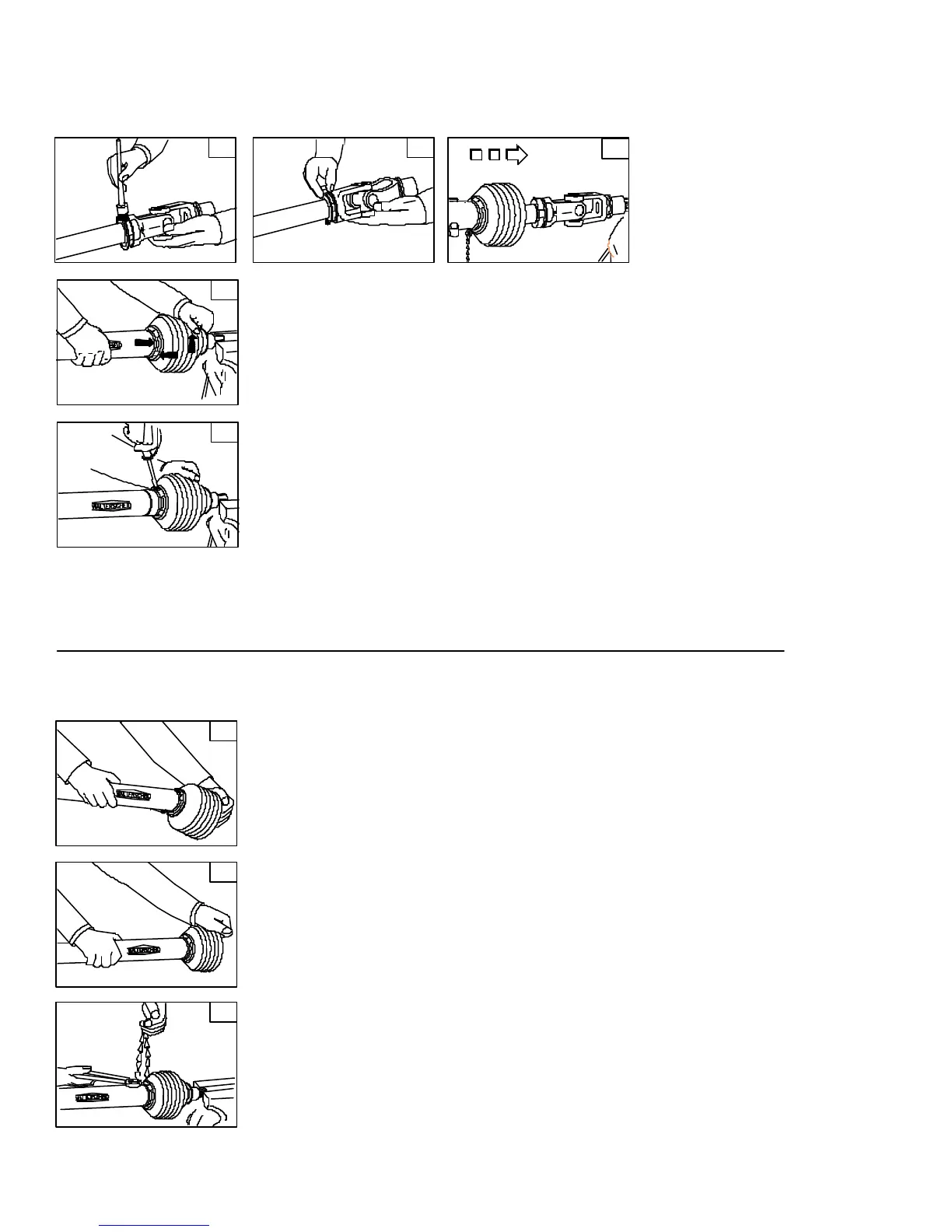

K. To assemble guard: (Figs. K1 - K5)
1. Grease yoke groove and inner profile tube.
2. Fit bearing ring in groove with recesses facing
profile tube.
3. Slip on half-guard.
4. Turn cone until it engaes correctly.
5. Install locking screw.
L. To assemble cone:
1. Dismantle guard (Figs. J1 - J3). Remove old cone
(e.g. cut open with knife). Take off chain. Place
neck of new cone in hot water
(approx 80
o
C / 180
o
F) and pull onto bearing housing
(Fig. L1).
2. Turn guard cone into assembly position (Fig. L2).
Further assembly instructions for guard
(Figs. K1 - K5).
3. Reconnect chain if required (Fig. L3).
K4
K3
K1
K2
K5
L1
L2
L3
250968K
250968L
