1-7
SET-UP
250915H
• 10-03-01

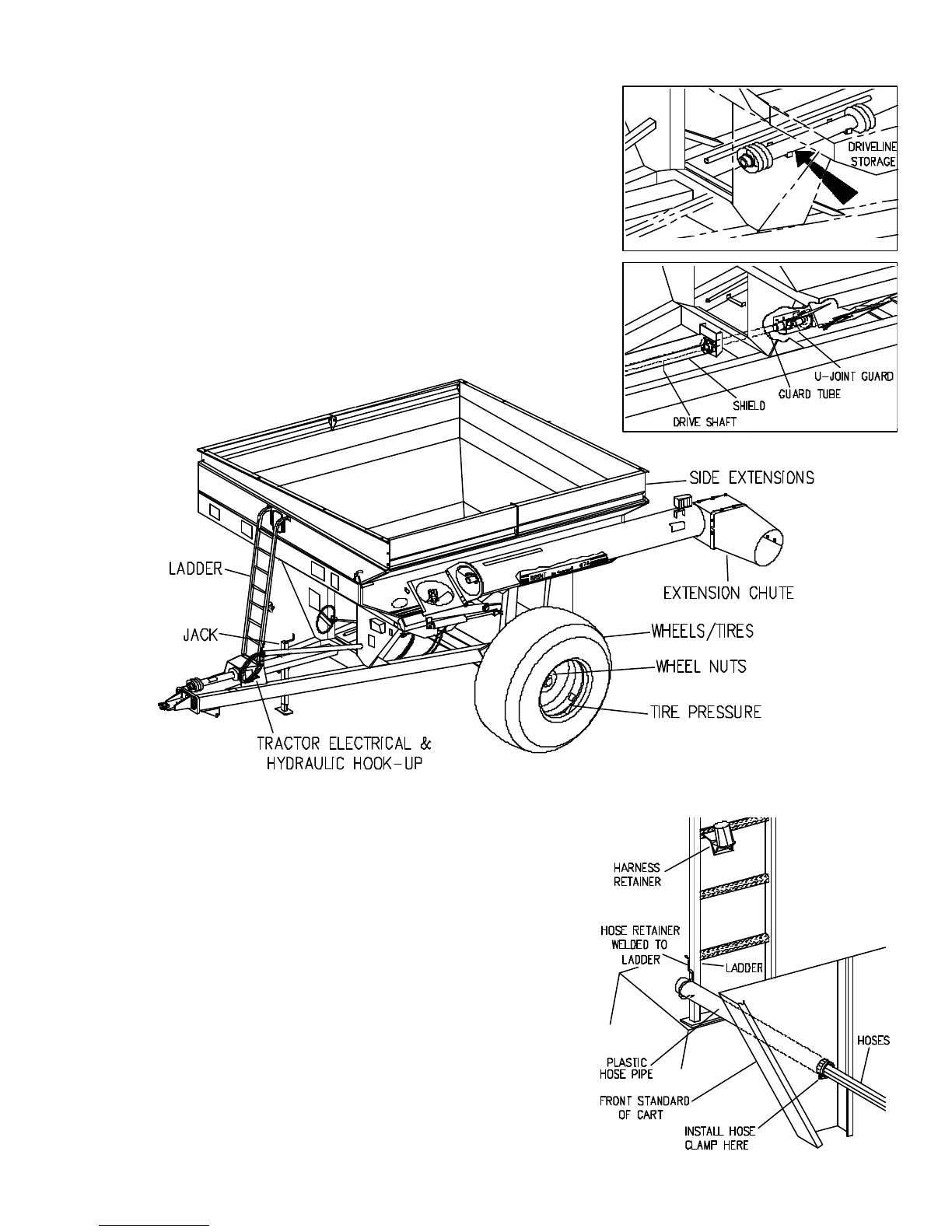

Place plastic hose pipe through the front
standard and hose retainer on ladder.
Slide the hoses through the plastic hose
pipe. Set a desired hose length. Fasten
the hoses and plastic hose pipe with the
hose clamp behind the front standard.
The wiring harness will also be run
through the plastic hose pipe. Fasten
harness to the hoses with tie straps.
NOTE: It is recommended that any ex-
cess hose or wiring harness be con-
tained at the rear of the hose pipe.
PLASTIC HOSE PIPE INSTALLATION
250915
DRIVELINE STORAGE
Storage brackets are located on the inside right
frame rail. Secure the PTO shaft to these brack-
ets for extended transporting or seasonal
storage. IMPORTANT: Remove and store the
complete PTO before towing grain cart behind a
delivery truck. Interference could occur when
turning resulting in damage to PTO and cart.
233926
DRIVE SHAFT SAFETY GUARDS
The PTO drive shaft shield, floating guard tube
and U-joint guard are factory installed. Make
sure they are in place before operating the
auger.
234912
•
