1-6
SET-UP FOR FIELD OPERATION
Your grain cart comes set-up with exception of wheel/tire installation, side extensions, ladder,
auger extension chute, electrical hook-up to tractor, and tire pressure check. If your
implement dealer has not set up the preceding items, the procedure is simple.
SIDE EXTENSION SET-UP
Refer to parts page in Section 2 for extension placement. Hardware is stored behind right
axle standard of grain cart.
1. Remove transport screws and set extensions
in their respective locations.
2. Secure extension through mounting lug holes
and holes provided in corners.

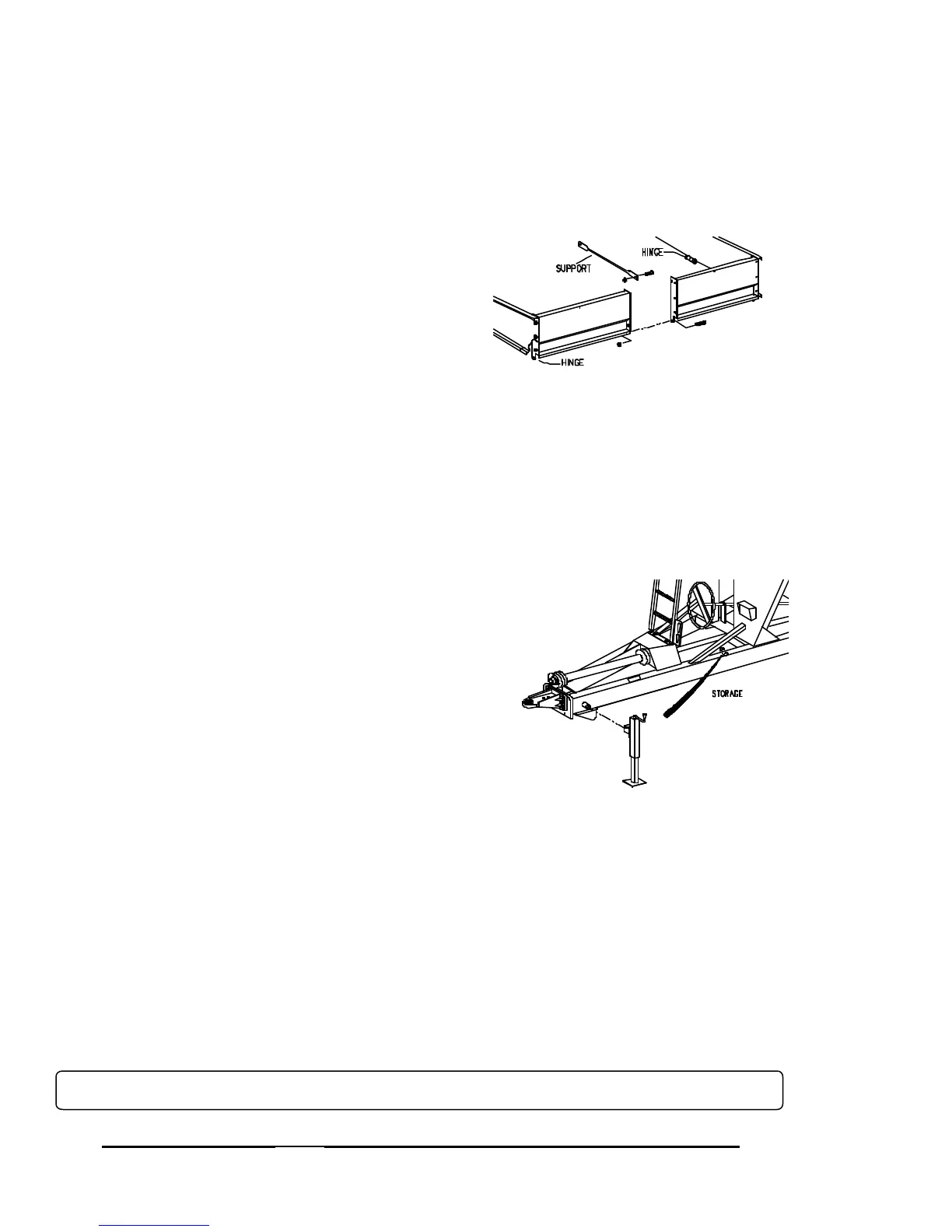

Folding Boards:
1. Rotate extensions up into position and secure
at corner holes.
2. Attach center support hardware.
3. Tighten all hardware, including hinge bolts.
AUGER EXTENSION CHUTE
Position outlet shroud & chute assembly over the upper auger tube. Check trim lock seals for
proper seating and contact. Hold with capscrew in top center hole and secure with nine
capscrews, flatwashers and locknuts.
AUGER EXTENSION CHUTE
Position outlet shroud & chute assembly over the upper auger tube. Check trim lock seals for
proper seating and contact. Hold with capscrew in top center hole and secure with nine
capscrews, flatwashers and locknuts.
LADDER
Set ladder over mounting lugs and secure to front panel of
cart.
JACK
Use jack to support an empty grain cart, never a loaded
grain cart.....always have a loaded grain cart hooked to
tractor. Remove jack from storage on inside of left frame
and install on mounting spud behind hitch. Important:
Return jack to storage location after cart is hitched to
tractor.
WHEEL NUTS
Check all wheel nuts for tightness before first load. Failure to do so may damage wheel nut
seats. Once seats are damaged, it will become impossible to keep nuts tight. Tighten nuts
to 400 ft. lbs. Re-tighten after first three loads and check periodically during first season of
use.
TIRE PRESSURE
The following is to be used as a general guide for tire inflation and figures can vary depending
on specific brand of tire used. It is important that tires are inspected after unit is loaded. The
tire should stand up with no side wall buckling as tire rolls.
234912
• 04-01-02
24.5 x 32 38 Lbs.
30.5 x 32 33 Lbs.
18.4 x 38 37 Lbs.
20.8 x 38 37 Lbs.
18.4 x 42 37 Lbs.
420/80 x 46 29 Lbs.
251903
VERY IMPORTANT..........
NEVER tow a loaded grain cart in excess of 8 m.p.h.
•
For questions regarding new tire warranty, please contact your local original equipment tire dealer. Used tires carry
no warranty. Tire manufacturers' phone numbers and websites are listed on page 1-24 for your convenience.
