20 Brocade FastIron X Series Chassis Hardware Installation Guide
53-1001723-02
Hardware features
1

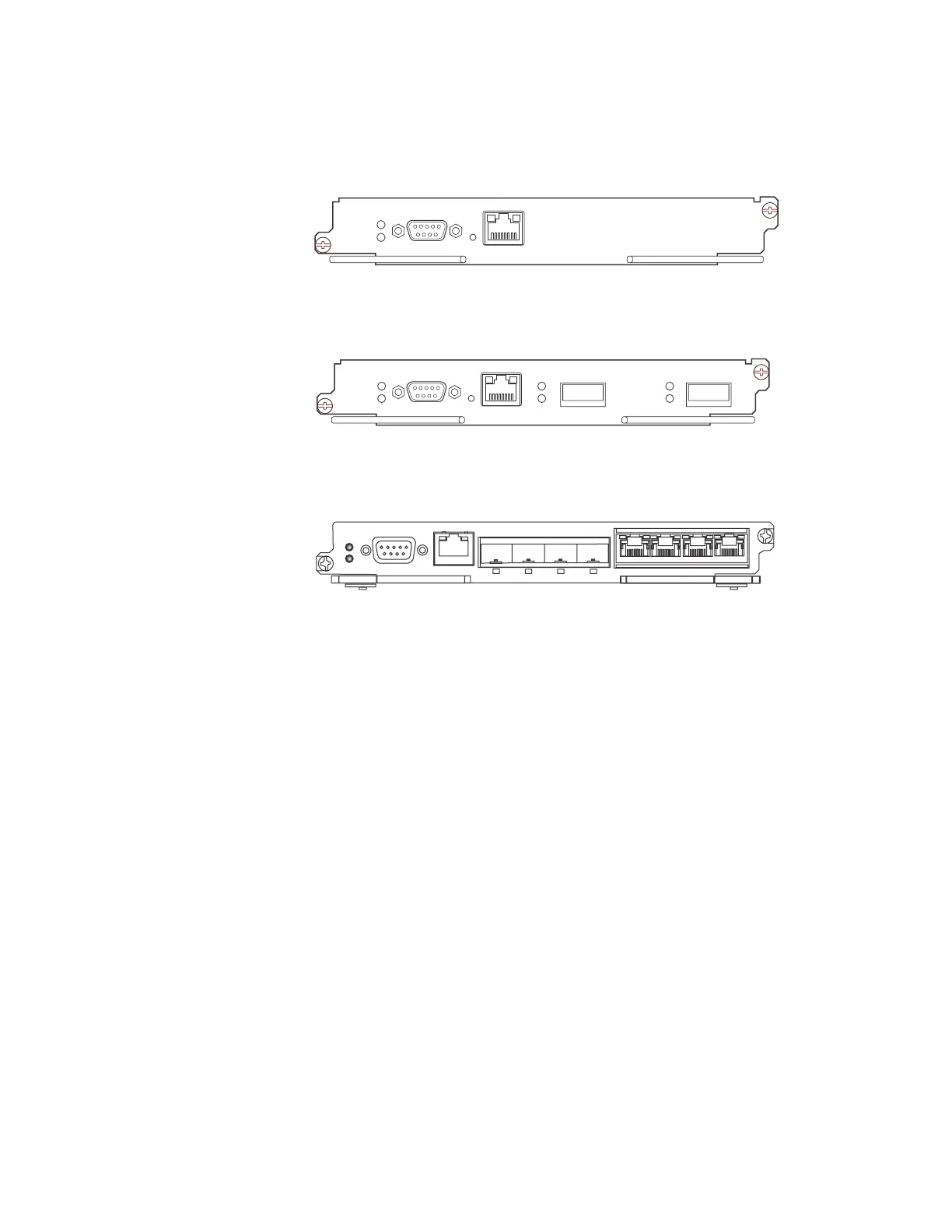

Figure 11 shows the front panel of the IPv4 and IPv6 management modules with no ports.
FIGURE 11 FSX 800 and FSX 1600 management module with no ports
Figure 12 shows the front panel of the IPv4 and IPv6 management modules with two 10-GbE ports.
FIGURE 12 FSX 800 and FSX 1600 management module with two 10-GbE ports
Figure 13 shows the front panel of the IPv4 and IPv6 management modules with eight GbE ports.
FIGURE 13 FSX 800 and FSX 1600 IPv4 and IPv6 8-port management module
The front panel on the management modules include the following control features:
• A Console port and 10/100/1000 RJ-45 copper port allow you to access the system’s CLI
directly from a PC or terminal or through a Telnet connection to the PC or terminal.
• Depending on the type of management modules installed in the device, the management
modules have the following ports:
• no 10-GbE fiber ports
• two 10-GbE fiber ports
• eight GbE copper and fiber ports (four copper and four fiber)
• LEDs for power and active or standby status
• Four LEDs for the two 10-GbE fiber ports (2-port 10-GbE modules only)
• A recessed reset button
10/100/1000 GbE Copper Port on the FSX 800 and FSX 1600 management modules
The 10/100/1000 RJ-45 copper port on the management module enables you to attach a PC or
terminal. From this Ethernet port, you can access the system’s CLI or Web Management Interface
directly from the PC or terminal or through a Telnet connection to the PC or terminal.
10-GbE Ports on the FSX 800 and FSX 1600 2-port 10-GbE management modules
The FSX 800 and FSX 1600 2-port 10-GbE management modules come with two 10-GbE fiber
ports through which you can connect your device to other network devices at a speed of 10
Gigabits per second.
Pwr
Console
Ethernet
10/100/1000
Active
Pwr
Console
12
Ethernet
10/100/1000
Active
Link
Act
Link
Act
Console
Pwr
Active
Ethernet
10/100/1000
1 2 3 4
5 6 7 8
