6. ASSEMBLY
BAS-342G
68
(Continued on the next page.)

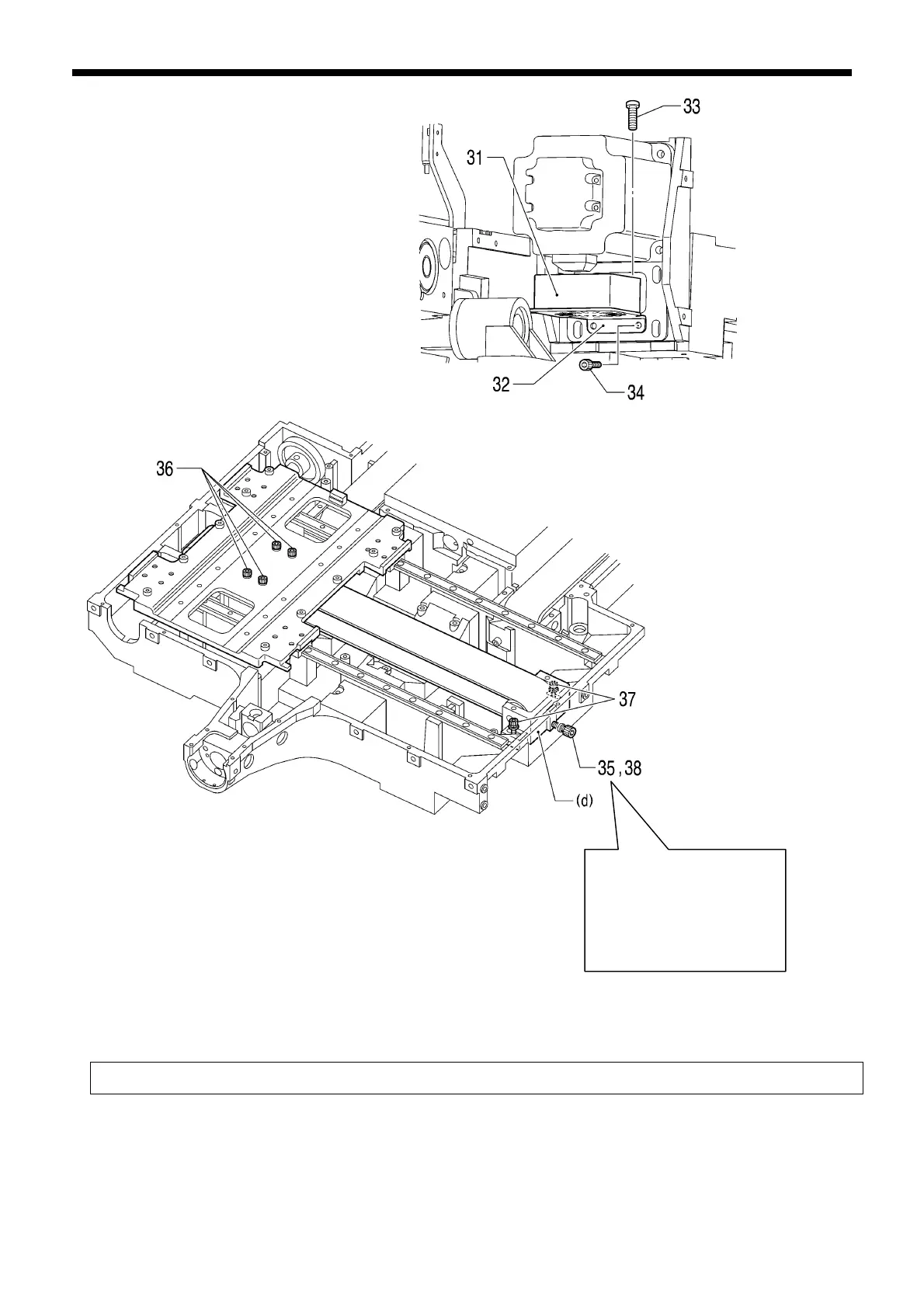

31. Fan
32. Fan bracket
33. Screws [4 pcs]
34. Bolts [2 pcs]
1296B
35. Bolts M6X30 (Tighten and then pull)
36. Bolts [4 pcs] (Fully tighten)
37. Bolts with washers [2 pcs] (Fully tighten)
38. Bolts M6X30 (Remove)
Tighten the bolts (M6X30)
(35) into the holes in the
side of the bed, and then
pull the Y pulley bracket
assembly (d) to adjust the
belt tension.
* After adjusting the belt tension, measure the tension. (Refer to the next page.)
1297B
To Next Page
