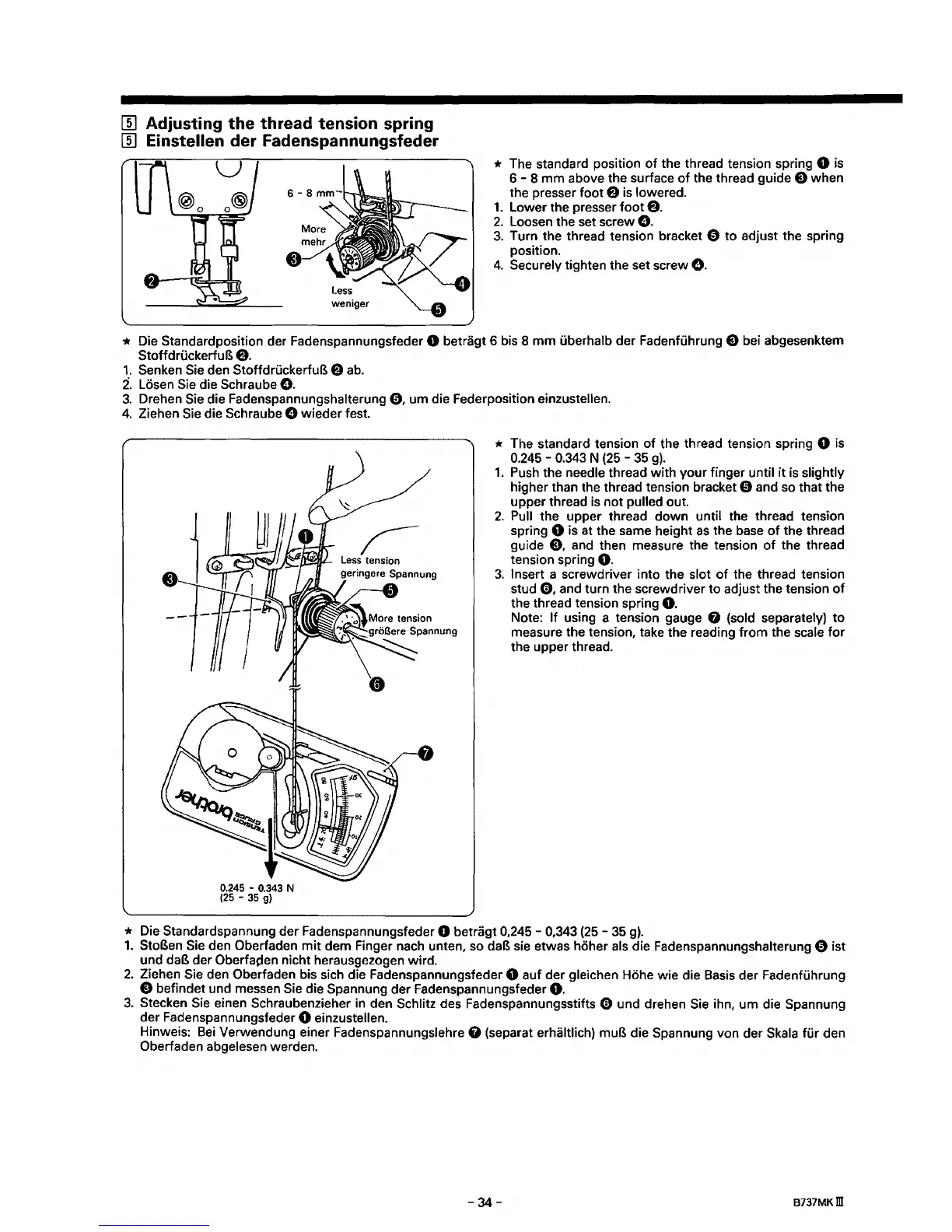

11]
Adjusting
the
thread tension spring
111
Einstellen der Fadenspannungsfeder
* The standard position
of
the thread tension spring 0 is
6 - 8
mm
above the surface
of
the thread guide e when
the presser foot
e is lowered.
1.
Lower the presser
foot
8.
2.
Loosen the set screw
e.
3.
Turn the thread tension bracket 0 to adjust the spring
position.
4.
Securely tighten the set screw
e.
* Die Standardposition der Fadenspannungsfeder 0 betragt 6 bis 8
mm
uberhalb der Fadenfl.ihrung
E)
bei abgesenktem
StoffdruckerfuB f.).
1.
Senken Sie den StoffdruckerfuB
f)
ab.
i. Losen Sie die Schraube
e.
3.
Drehen Sie die Fadenspannungshalterung
0,
urn die Federposition einzustellen.
4.
Ziehen Sie die Schraube e Wieder fest.
0.245 - 0.343 N
(25-
35 g)
* The standard tension
of
the thread tension spring 0 is
0.245
-
0.343
N
(25
-
35
g).
1.
Push
the needle thread with your finger until it is slightly
higher than the thread tension bracket 0 and so that the
upper thread is not
pulled out.
2.
Pull the upper thread down until the thread tension
spring
0 is at the same height
as
the base
of
the thread
guide
e,
and then measure the tension
of
the thread
tension spring
0.
3.
Insert a screwdriver into the slot
of
the thread tension
stud
0,
and turn the screwdriver to adjust the tension
of
the thread tension spring
0.
Note: If using a tension gauge 0 (sold separately) to
measure the tension, take the reading from the
scale
for
the upper thread.
* Die Standardspannung der Fadenspannungsfeder 0 betragt 0,245 - 0,343
(25
-
35
g).
1.
StoBen Sie den Oberfaden
mit
dem Finger nach unten, so daB sie etwas hoher als die Fadenspannungshalterung 0 ist
und
daB der Oberfacten nicht herausgezogen wird.
2.
Ziehen Sie den Oberfaden bis sich die Fadenspannungsfeder 0 auf der gleichen Hohe wie die Basis der Fadenfl.ihrung
0 befindet und messen Sie die Spannung der Fadenspannungsfeder
0.
3.
Stecken
Sie
einen Schraubenzieher in den Schlitz des Fadenspannungsstifts 0 und drehen Sie ihn, urn die Spannung
der Fadenspannungsfeder
0 einzustellen.
Hinweis:
Bei
Verwendung einer Fadenspannungslehre 0 (separat erhaltlich) muB die Spannung von der
Skala
fur
den
Oberfaden
abgelesen werden.
-34-
B737MKm
