3-16

Confidential

9.3 Outer Chute ASSY

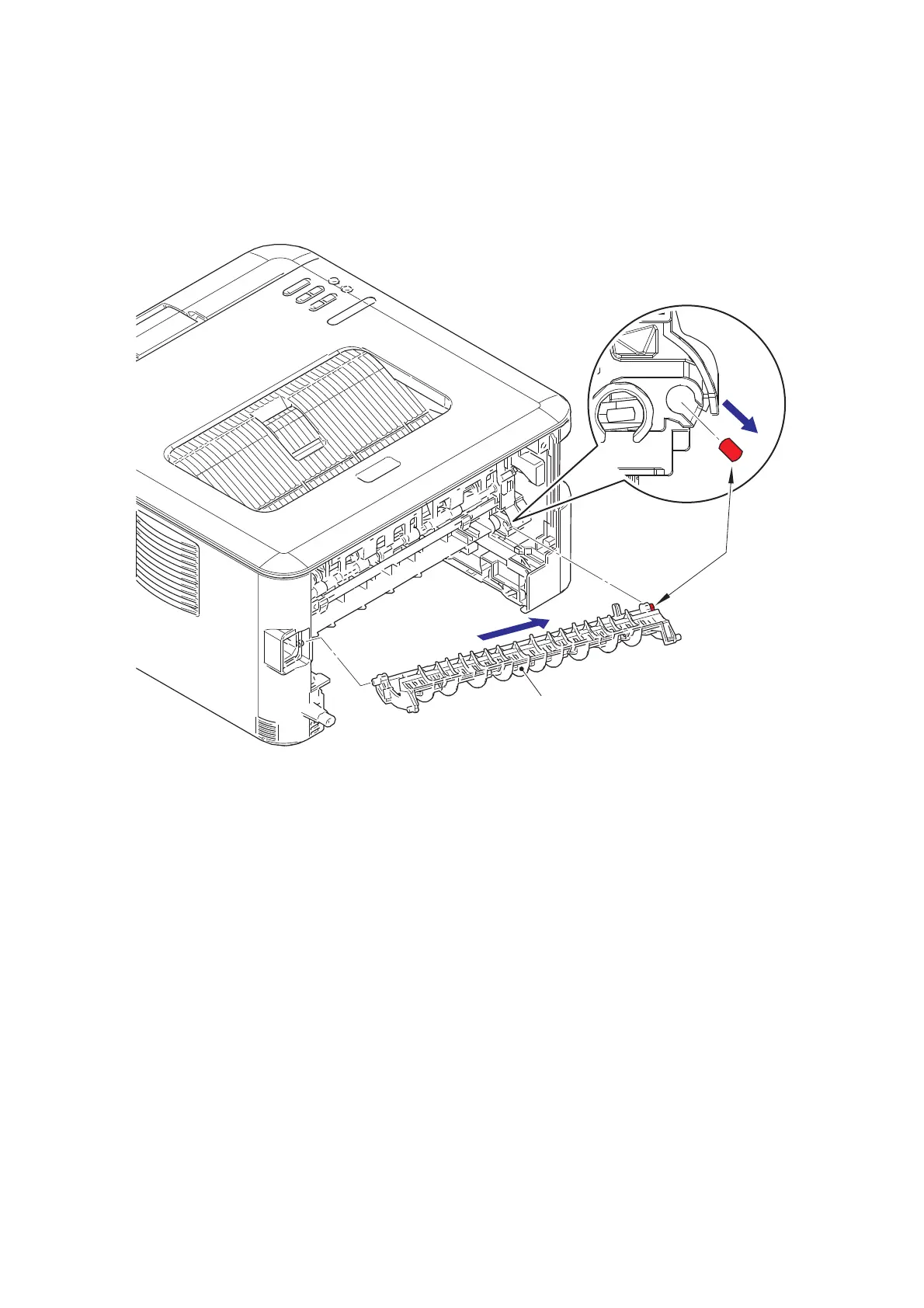

(1) Pull out the right side of the outer chute ASSY in the direction of the arrow A to remove

the boss of the outer chute ASSY, and remove the outer chute ASSY in the direction of

the arrow B.

Fig. 3-10

Boss

Outer chute ASSY
