Brother HL-2560DN Service Manual

3-35
Confidential

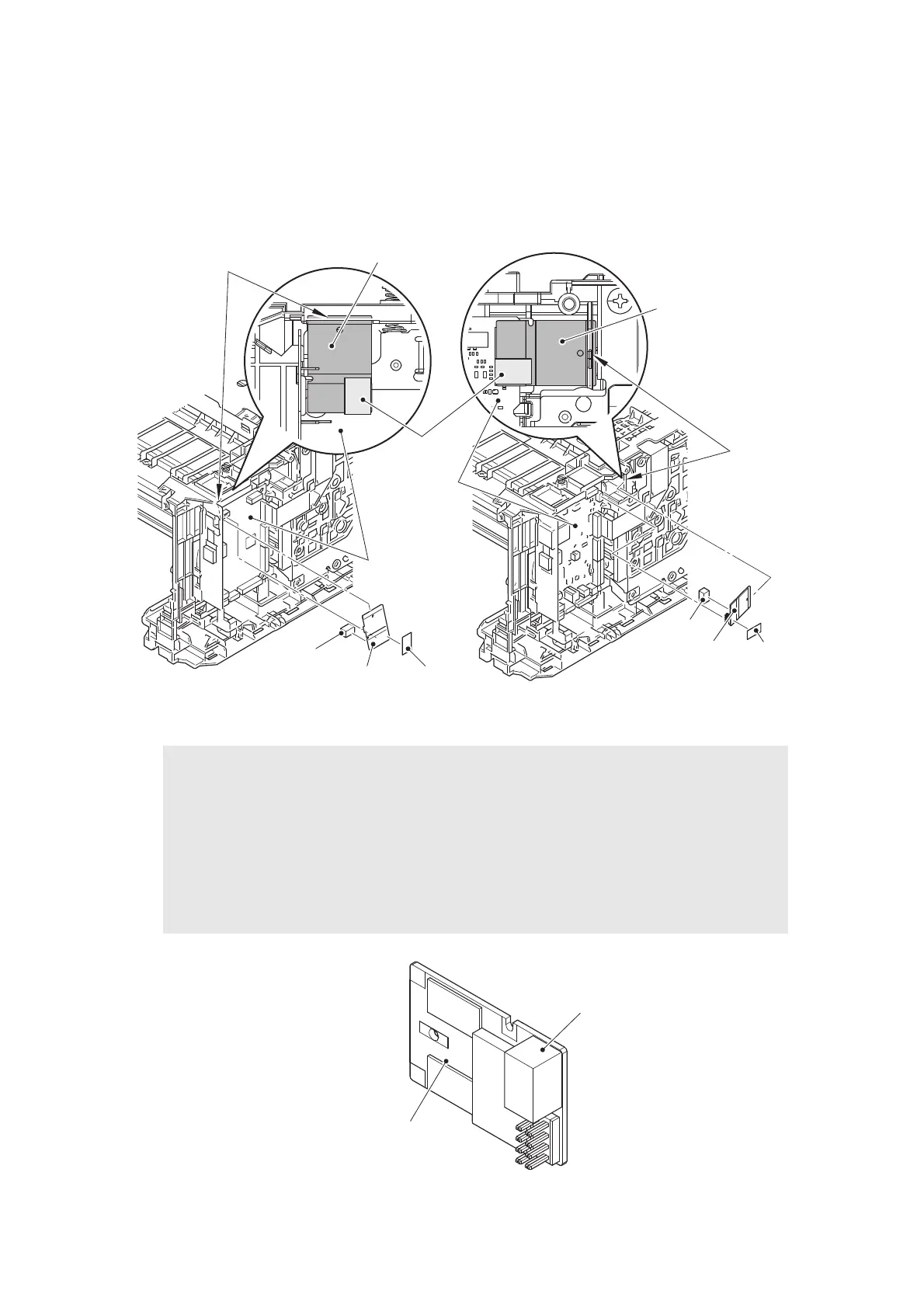

9.16 Wireless LAN PCB (Wireless network model only)
(1) Remove the tape on the wireless LAN PCB, and disconnect the wireless LAN PCB from
the main PCB ASSY.
(2) Remove the gasket from the wireless LAN PCB.
Fig. 3-33
Fig. 3-34
Assembling Note:
• When connecting the wireless LAN PCB, insert the wireless LAN PCB to the hole on
the machine, and connect the wireless LAN PCB to the main PCB ASSY.
• When assembling the wireless LAN PCB, remove the all tapes on the wireless LAN
PCB. Also, do not attach a tape. These tapes are for securing the wireless LAN PCB
during the shipping, not required for usage. These tapes are special tape and using
other tapes may cause short circuit between terminals.
• Attach the gasket to the location shown in the figure below.
Wireless LAN PCB
Gasket
Wireless LAN PCB
<HL-L2305W/L2315DW/L2340DW>
Wireless LAN PCB
Hole
Gasket
Hole
<WLAN models other than HL-L2305W/L2315DW/L2340DW>
<Back side>
<Back side>
Wireless LAN PCB
Main PCB ASSY
Main PCB ASSY
Tape
Tape
Tape
Gasket
Wireless LAN PCB
