3-38
Confidential

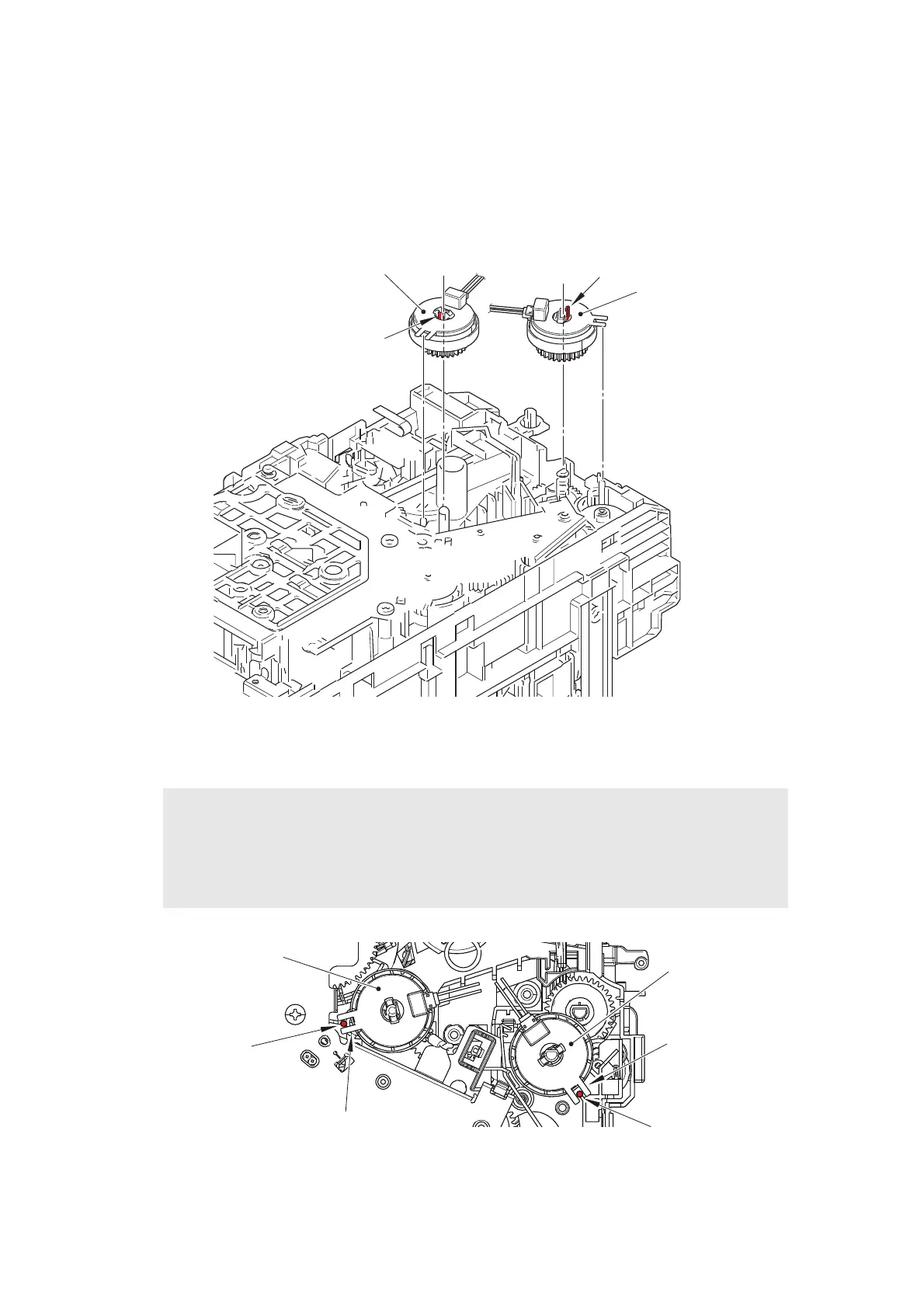

9.19 T1 Clutch and Registration Clutch
(1) Release the T1 clutch harness (BL) and the registration clutch harness (WH) from the
securing fixtures.
(2) Release the hook, and remove the T1 clutch.
(3) Release the hook, and remove the registration clutch.
Fig. 3-38
Harness routing: Refer to “4. Left side of the machine”.
Fig. 3-39
Assembling Note:
• When securing the T1 clutch harness and the registration clutch harness, check that
there is no harness slack.
• Attach the rotation stoppers of the T1 clutch and registration clutch by engaging them
with the pins of the machine as shown in the figure below.
Registration clutch
Hook
Hook
T1 clutch
<Upper side of frame L>
<Front side>
Registration clutch
T1 clutch
Rotation stopper
Pin
Pin
Rotation stopper
To Next Page
