3-32

Confidential

9.14 Filter

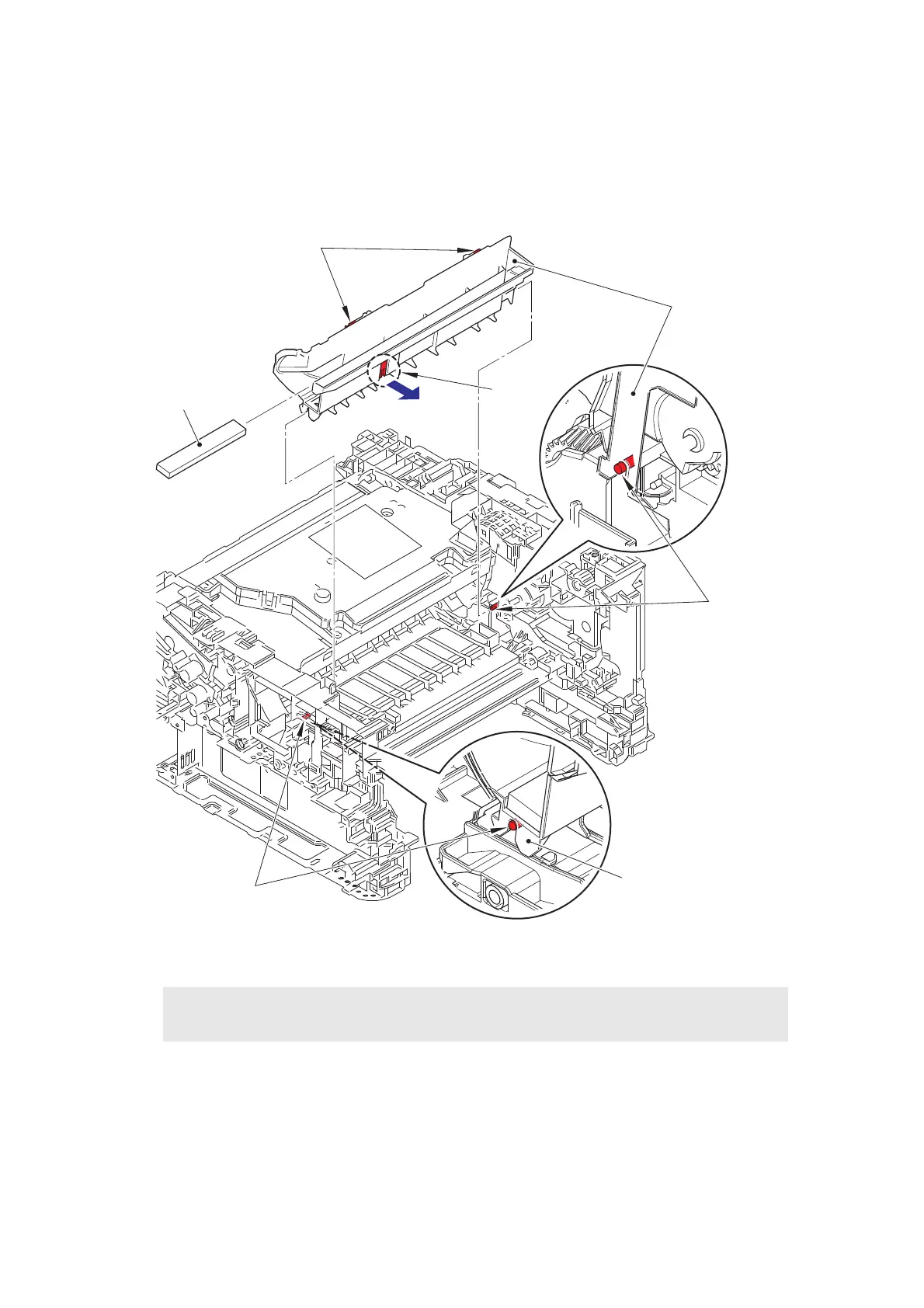

(1) Release each hook to remove the air duct.

(2) Pull out the rib on the air duct in the direction of the arrow, and remove the filter.

Fig. 3-29

Assembling Note:

• When attaching the air duct, engage the notches on the air duct with the pins.

Filter

Hooks

Rib

Air duct
