3-27

Confidential

9.11 Low-voltage Power Supply PCB ASSY

(1) Remove the front chute FG spring from the LVPS shield plate cover and the front chute

ASSY.

(2) Remove the two taptite cup S M3x8 SR screws and the screw pan (S/P washer) M3.5x6

screw to remove the LVPS shield plate cover and the LVPS insulation sheet.

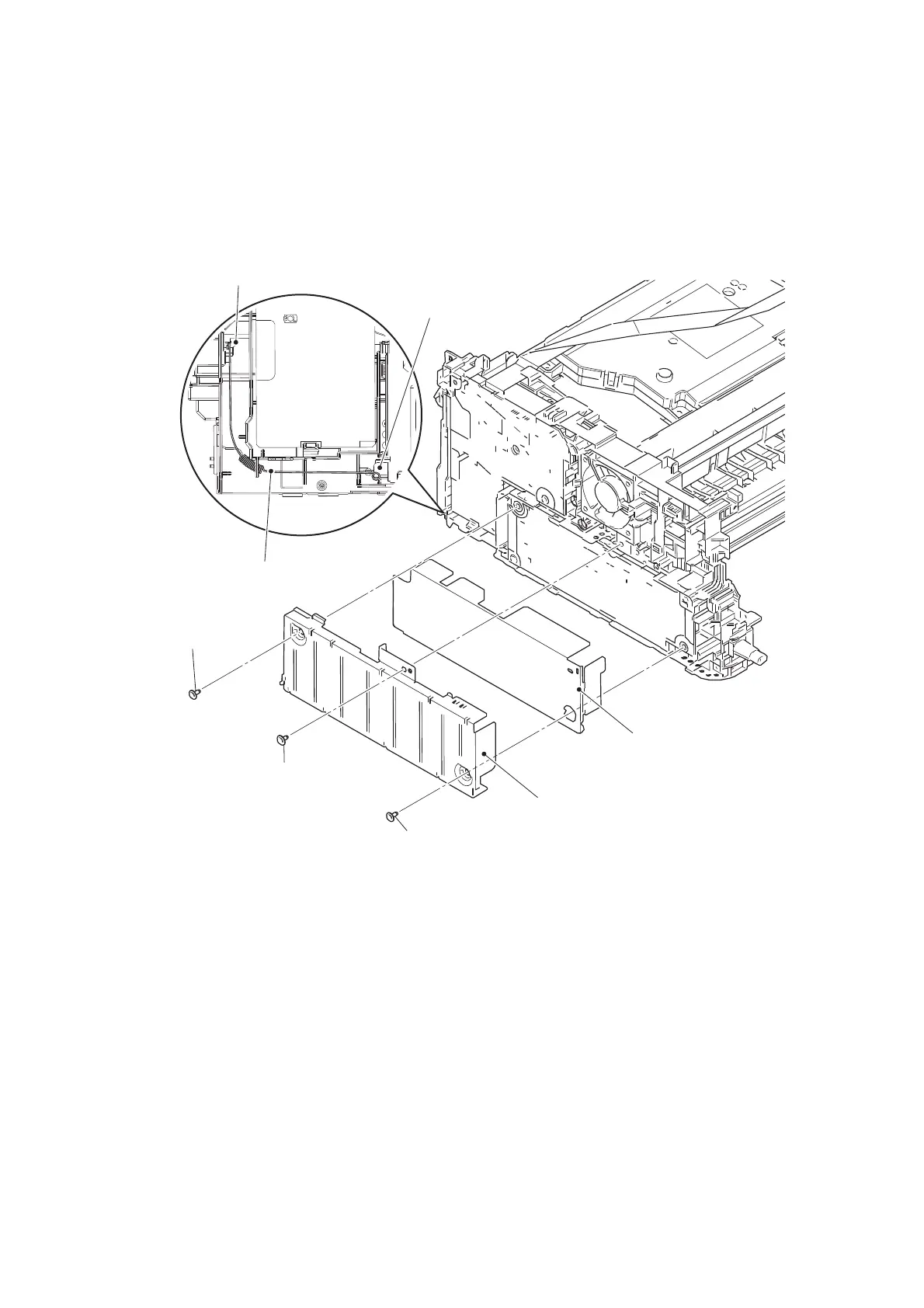

Fig. 3-23

LVPS shield plate cover

Screw pan (S/P washer) M3.5x6

Front chute ASSY

Front chute FG spring

Taptite cup S M3x8 SR

LVPS insulation sheet

LVPS shield plate cover

Taptite cup S M3x8 SR
