3-21

Confidential

9.8 Side Cover L

(1) Release the each hook on the side cover L in order of the arrow A to C, and remove the

side cover L from the main body.

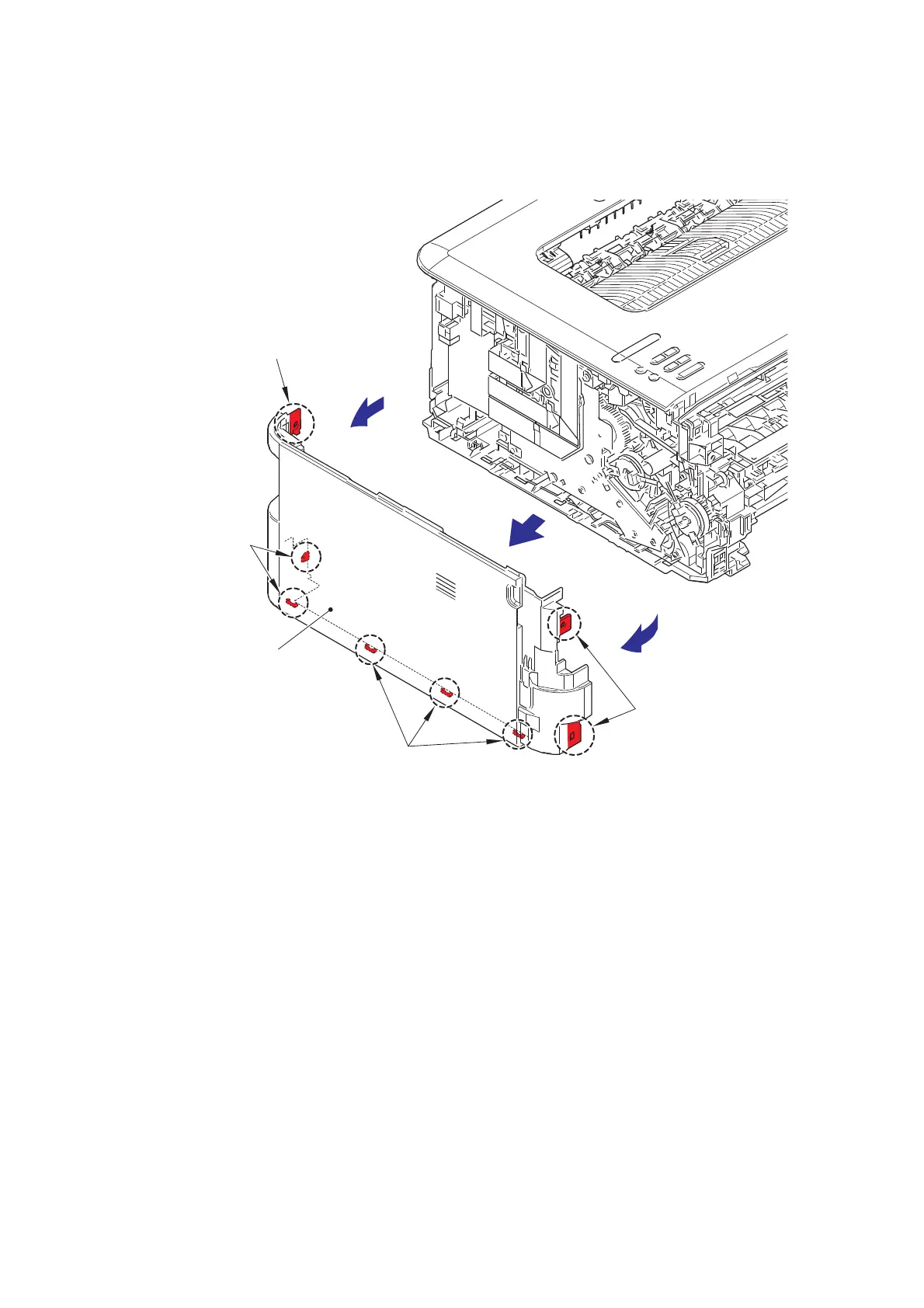

Fig. 3-15

Hooks

Side cover L

Hooks

Hook
