9.4 Front Cover ASSY

(1) Open the front cover ASSY.

(2) Release the hook of the develop joint link, and remove the develop joint link from the

front cover ASSY.

(3) Lift the rib on the front chute ASSY, and slide the front cover ASSY in the direction of the

arrow A to remove it.

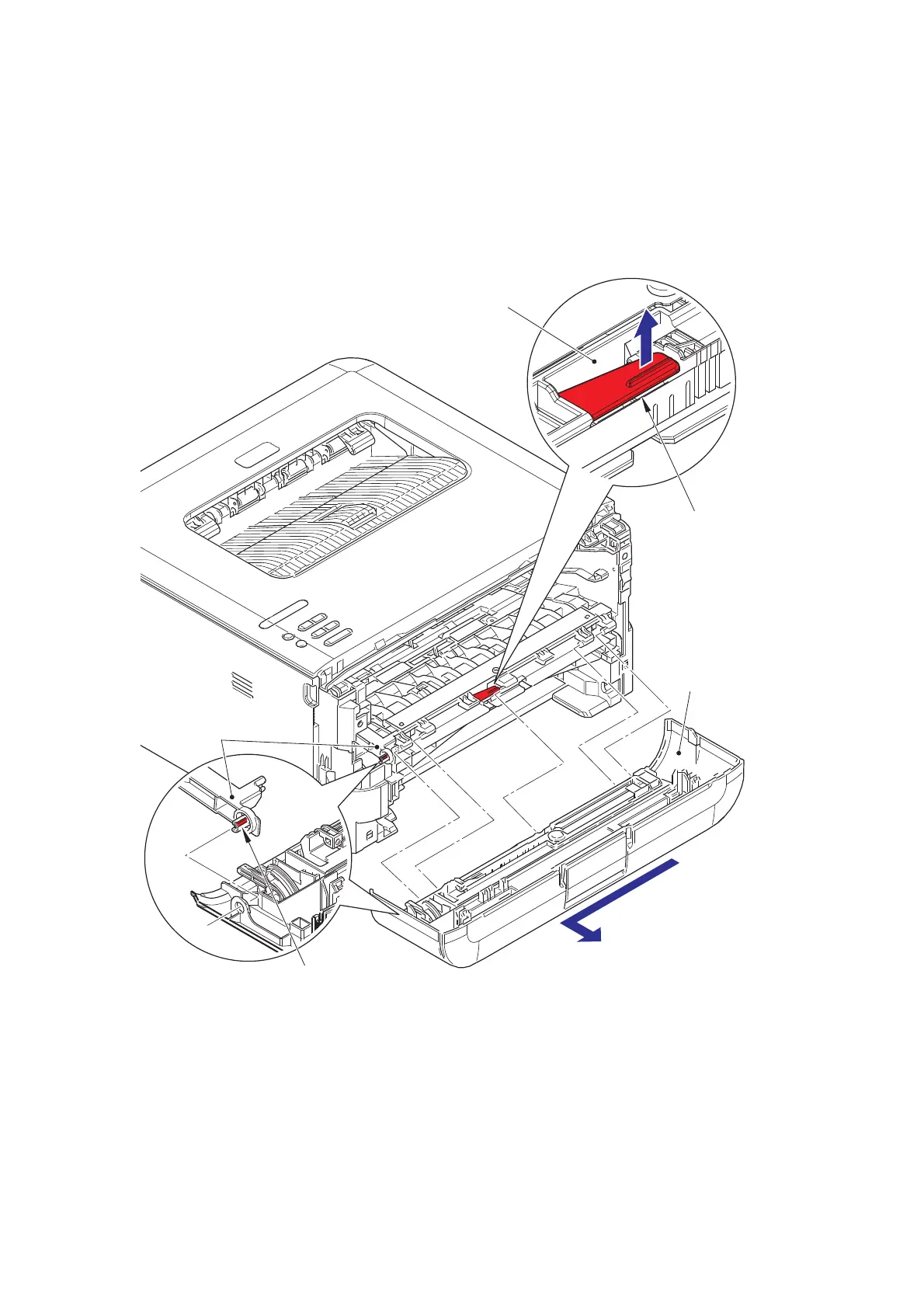

Fig. 3-11

Rib

Front chute ASSY

Develop joint link

Front cover ASSY

Hook
