3-23
Confidential
Top cover ASSY (For LED models)
(5) Release the hook, and remove the panel PCB ASSY from the top cover ASSY. Release
the panel PCB flat cable from the each guide.
(6) Release both pins of the top chute by pushing them in the direction of arrow A and pull
the top chute in the direction of arrow B to remove the top chute from the top cover ASSY.

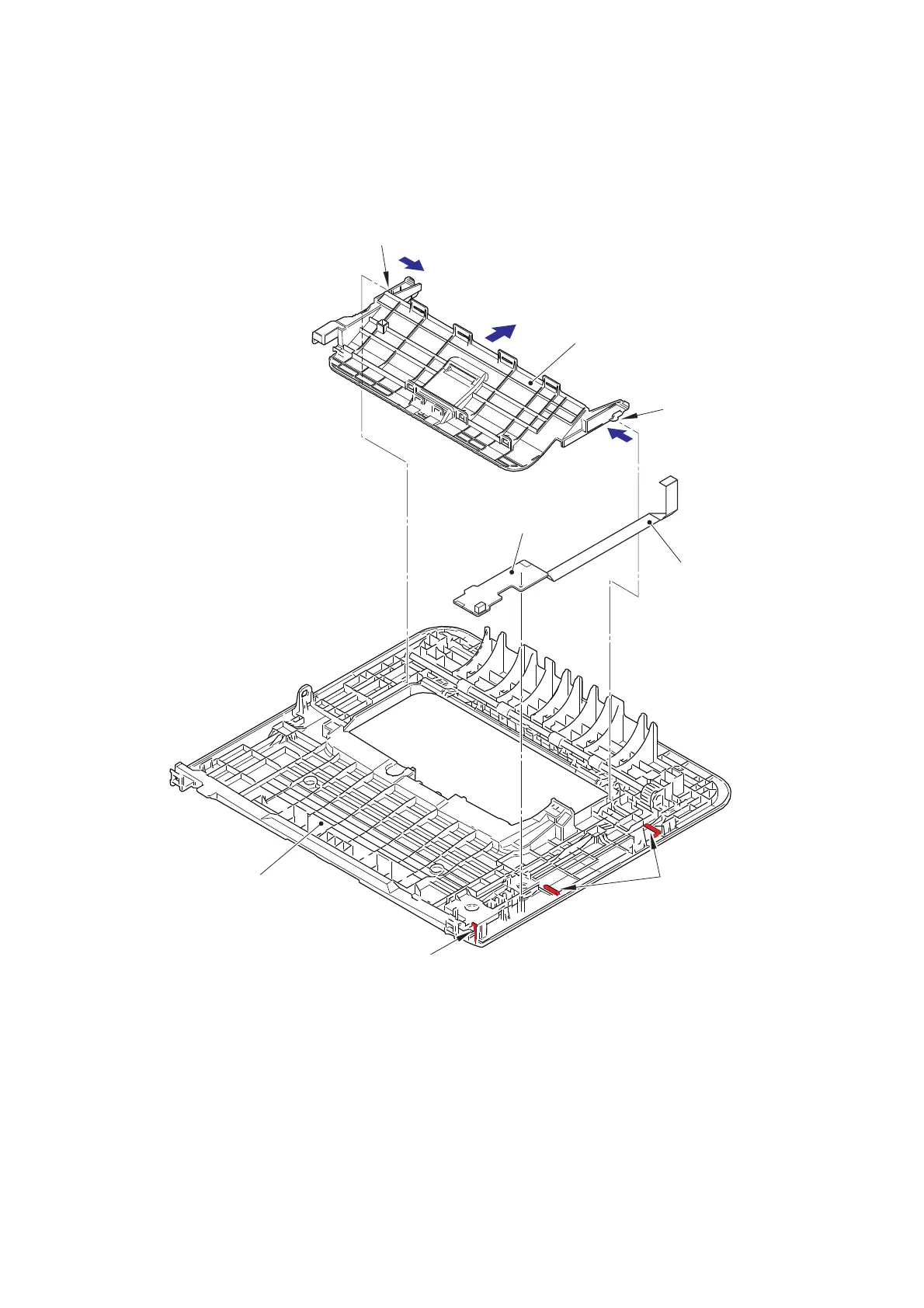

Fig. 3-17
Harness routing: Refer to “3. Bottom side of the top cover ASSY”.
Panel PCB flat cable
Panel PCB ASSY
Top cover ASSY
<Bottom side of top cover ASSY>
Hook
Guides
B
A
A
Pin
Pin
Top chute
To Next Page
