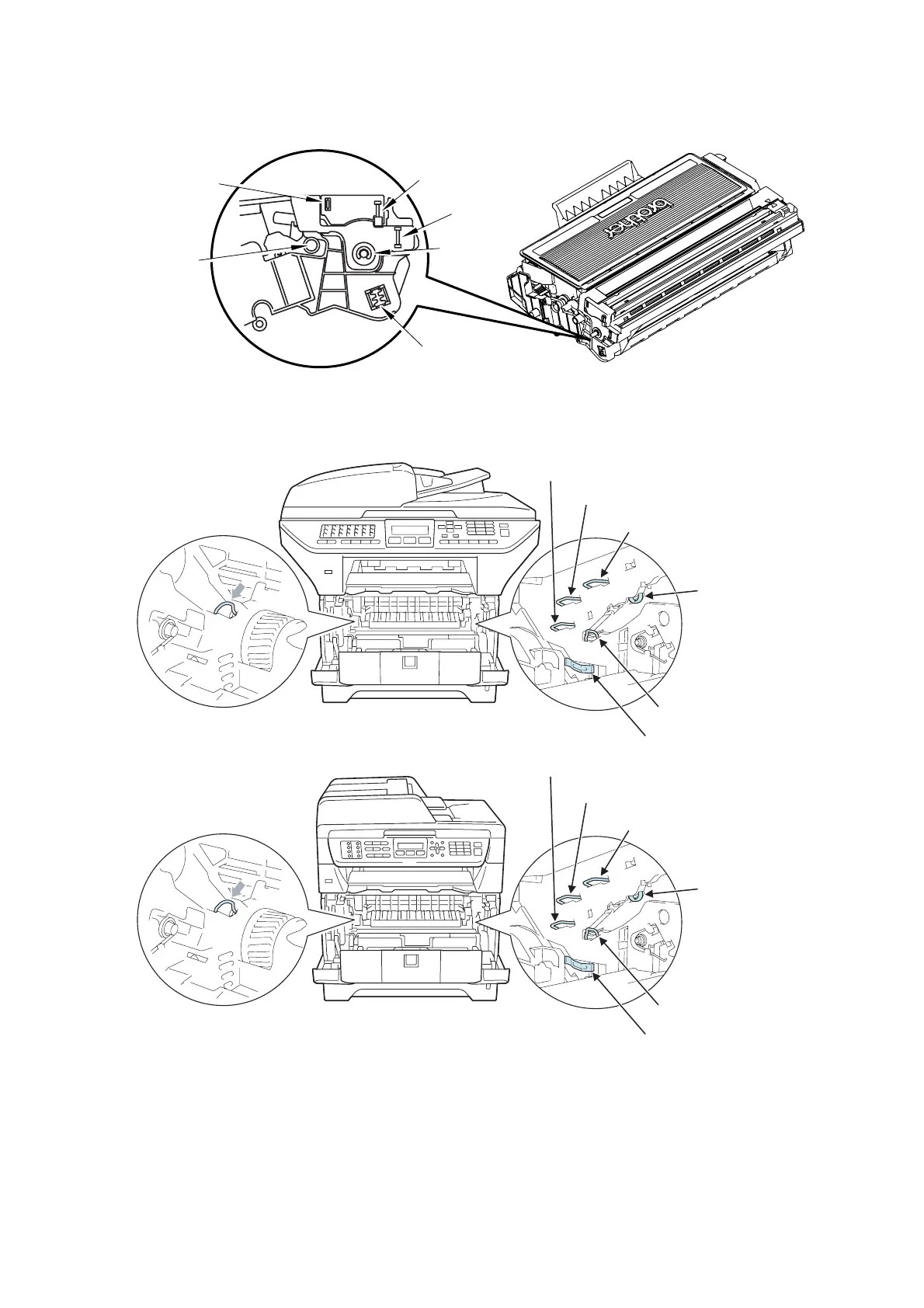

■ Electrodes location of the toner/drum unit
Fig. 3-2
■ Electrodes location of the machine
Fig. 3-3
<How to clean the electrodes>
Turn off the power switch. Unplug the machine from the AC power outlet, and leave the machine
for a few minutes. Then, wipe the electrodes above carefully with a dry lint-free cloth. Be
careful not to change the shapes of the electrodes.
Drum Unit
(5) Grid
(7) Cleaner
(3) Charge
(4) Developer
roller
(6) Transfer roller
(1) Exposure
drum
Developer roller
Charge
Grid
Cleaner
Transfer roller
CCD model
CIS model
Exposure drum
Developer roller
Charge
Grid
Cleaner
Transfer roller
Exposure drum
