Brother MFC-8370DN - Flap a (for the Models Without the DX); Flap a ASSY (for the Models with the DX)

5-86
Confidential
9.8.28 Flap A ASSY (For the models with the DX) /
Flap A (For the models without the DX)
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the Flap A ASSY or Flap A
from the ADF chute ASSY.

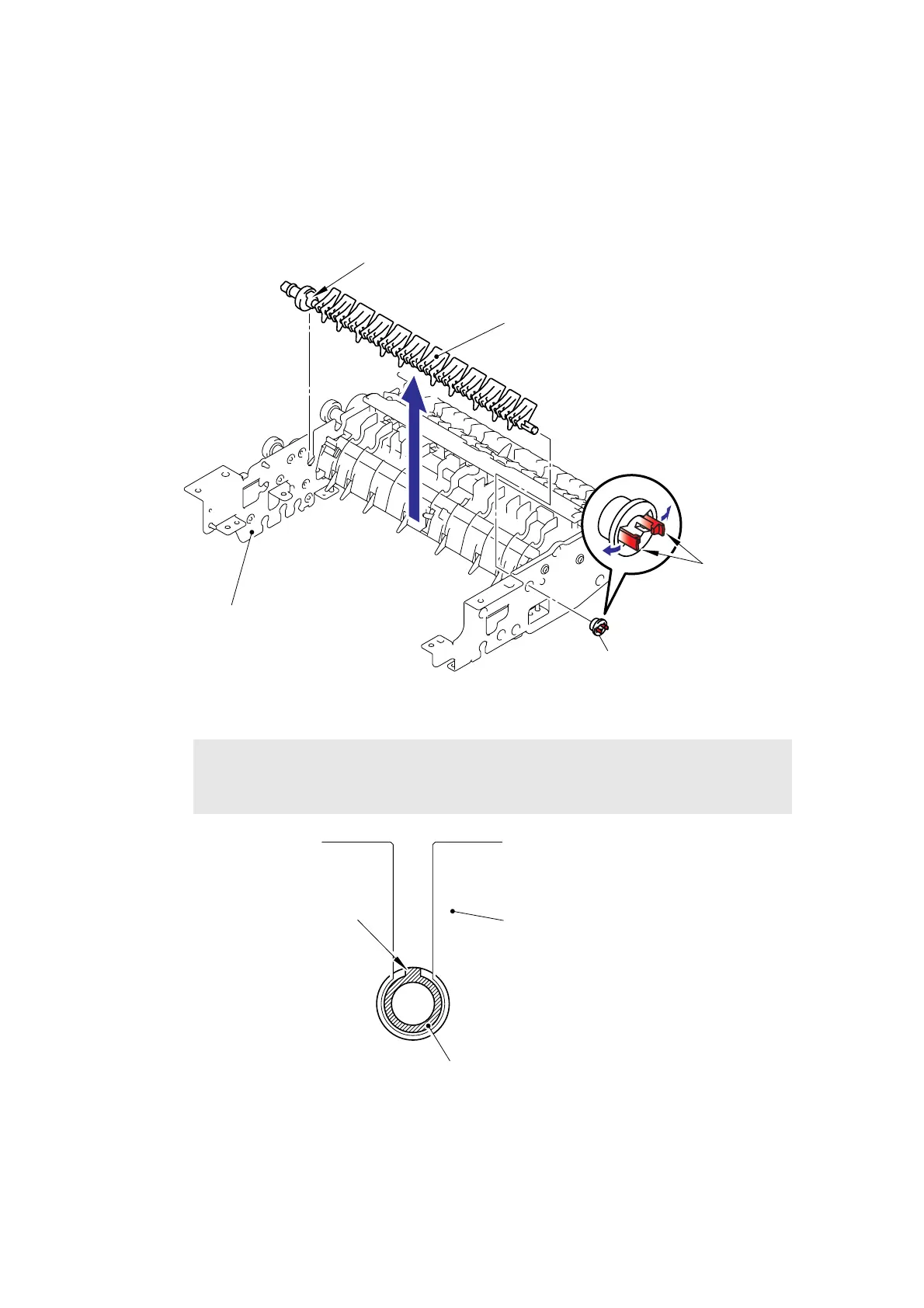

Fig. 5-82
Fig. 5-83
Assembling Note:
• When assembling the Flap A ASSY or Flap A, assemble the Bushing with aligning
the Boss of the Bushing with the notch on the ADF chute ASSY.
Bushing
Flap A ASSY/Flap A
Hooks
Conductive bushing A
ADF chute ASSY
ADF chute ASSY
Boss
Bushing
