10. DISASSEMBLY PROCEDURE OPTIONAL
LOWER TRAY (LT-5300)
10.1 Paper Tray

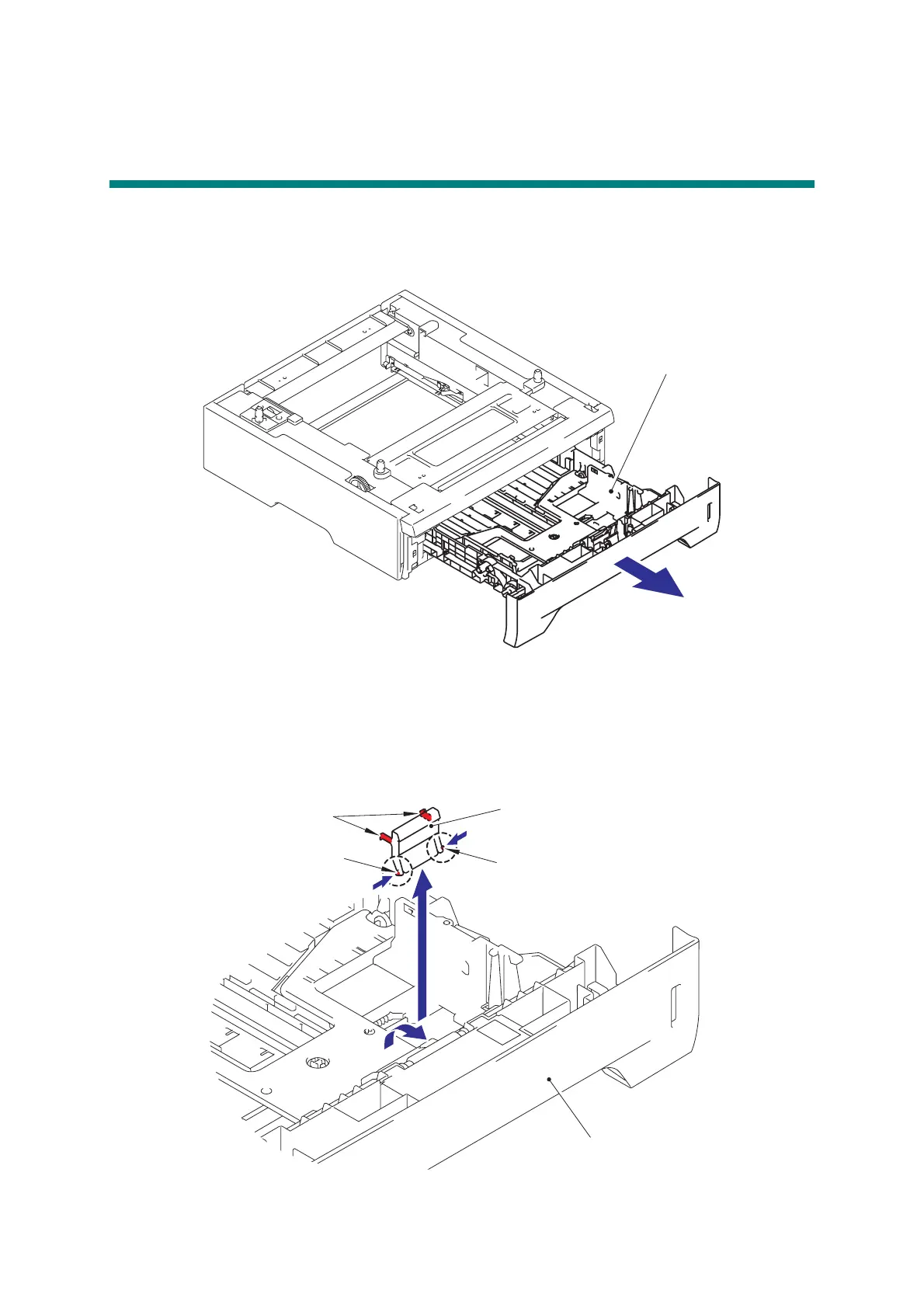

(1) Pull out the Paper tray from the LT-5300.
Fig. 5-290
(2) Pull up the back side of the Separation pad ASSY.
(3) Push the Hooks provided on both sides of the Separation pad ASSY inwards.
(4) Pull up the Separation pad ASSY.
Fig. 5-291
Paper tray
Paper tray
Hook
Hooks
Hook
Separation pad ASSY
3
3
4
2
