9.8.54 Document Front Actuator 1 / Document Front Sensor 1
(1) Push down the Stopper, slide the Document front actuator 1 to the Stopper side and pull
up the Document front actuator 1.
(2) Release the Hooks of the Document front sensor 1, and remove the Document front
sensor 1 from the Lower document chute ASSY.
(3) Disconnect the Connector from the Document front sensor 1.

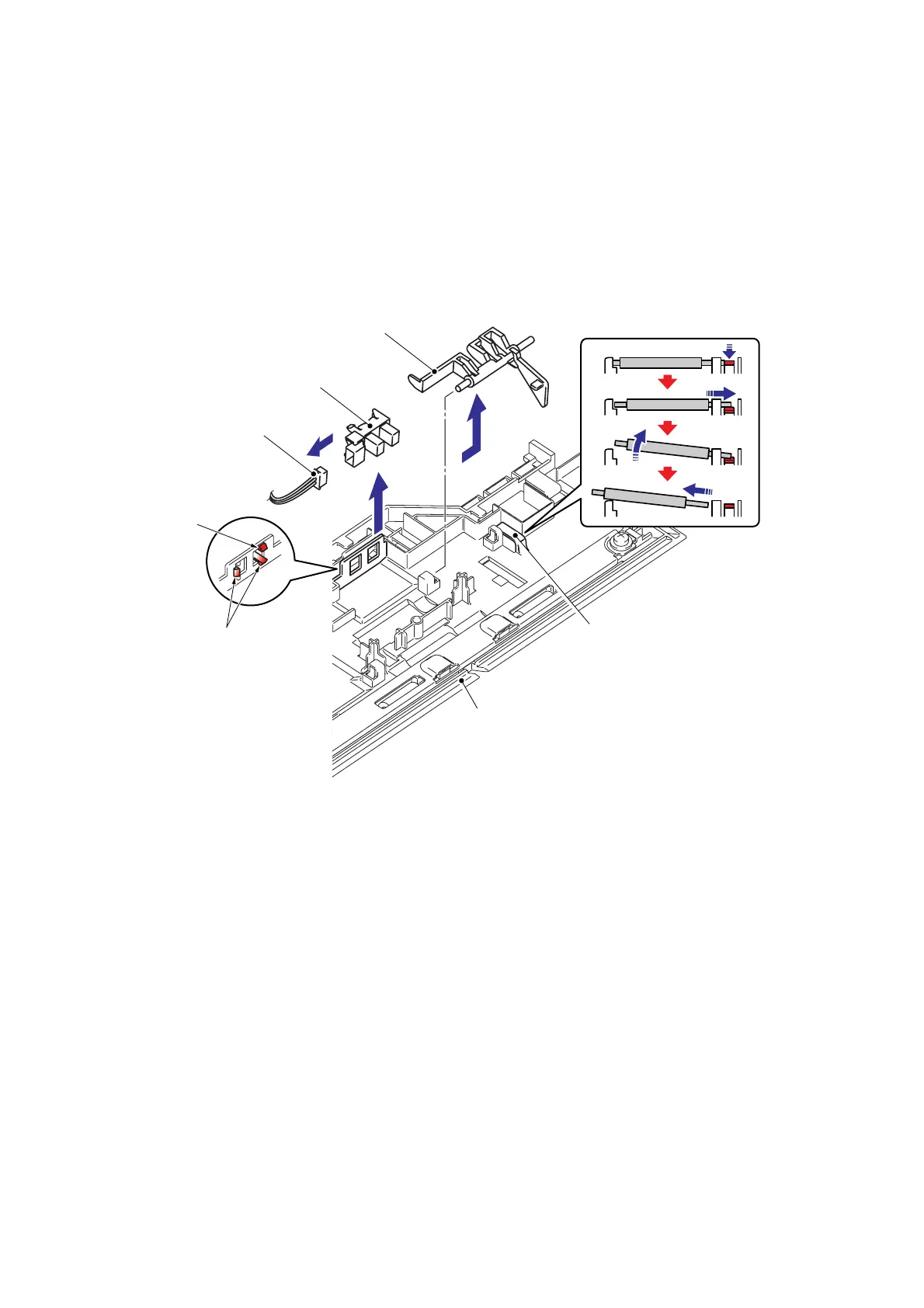

Fig. 5-120
2
3
1
Document front sensor 1
Document front actuator 1
Connector
Hook
Hooks
Stopper
Lower document chute ASSY
