Brother MFC-8370DN - LF Roller 2 ASSY

5-116
Confidential
9.8.58 LF Roller 2 ASSY

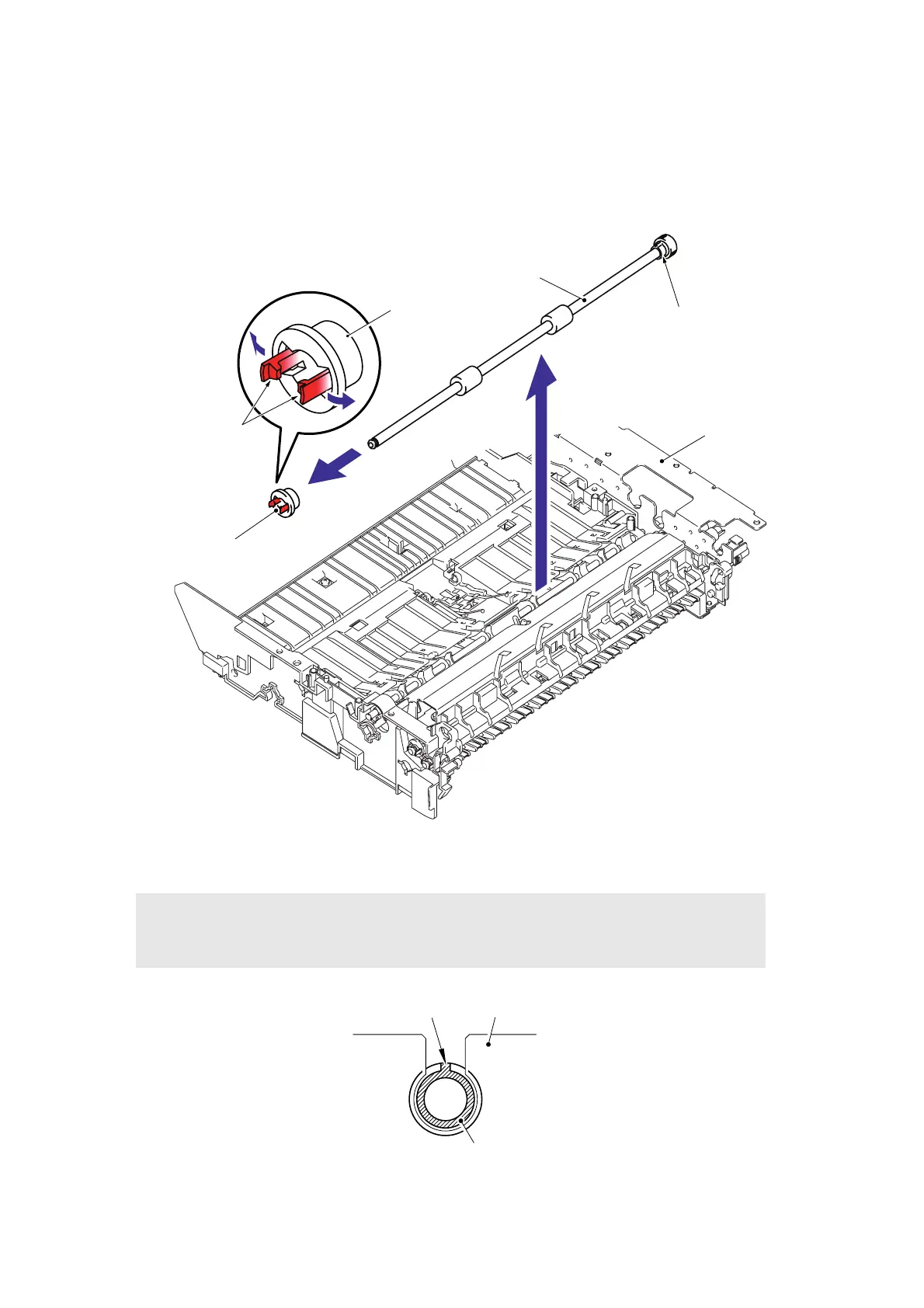

(1) Release the Hook of the Conductive Bushing N to remove the Conductive Bushing N.
(2) Remove the Bushing from the ADF chute ASSY, and remove the LF roller 2 ASSY from
the ADF chute ASSY.
Fig. 5-126
Fig. 5-127
Assembling Note:
• When assembling the LF roller 2 ASSY, assemble the Bushing with aligning the Boss of
the Bushing with the notch on the ADF chute ASSY.
1a
1a
1b
2
Conductive Bushing N
LF roller 2 ASSY
Conductive Bushing N
ADF chute ASSY
Hook
Bushing
Boss
ADF chute ASSY
Bushing
