9.46 Roller Holder ASSY

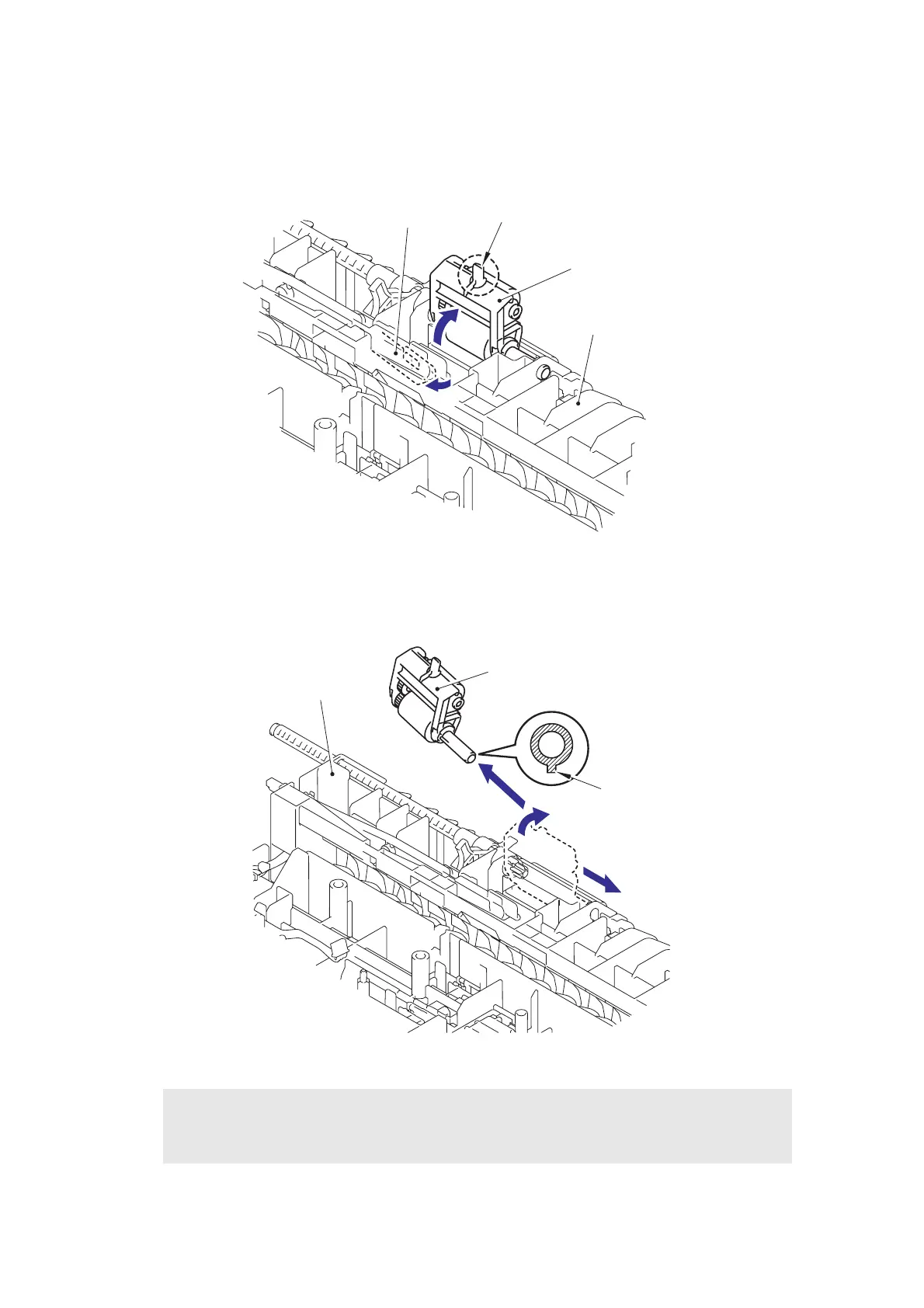

(1) Push the Lift arm to the direction of 1a and pull out the pin of the Roller holder ASSY.
Then, turn the Roller holder ASSY to the direction of 1b.
Fig. 5-283
(2) Slide the Roller holder ASSY to the direction of 2a. Then, lift up the gear side of the
Roller holder ASSY to the direction of 2b and pull it out to the direction of 2c to remove.
Fig. 5-284
Assembling Note:
• When assembling the roller holder ASSY, align the section "A" on the shaft of the roller
holder ASSY with the hole on the paper feed frame.
Roller holder ASSY
1a
1b
Lift arm
Pin
Paper feed frame
Roller holder ASSY
"A"
2b
2a
2c
Paper feed frame

Brother MFC-8370DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Input color depth	48 bit
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Display	LCD
Product color	Grey, White
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Card reader integrated	-
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	Scan
Power consumption (standby)	85 W
Power consumption (average operating)	680 W
Package weight	21100 g
Digital sender	No
Maximum duty cycle	- pages per month

Weight and Dimensions

Depth	443 mm
Width	390 mm
Height	442 mm
