Brother MFC-8370DN Service Manual

5-66
Confidential
9.8.8 ADF Chute ASSY
(1) Disconnect the 7 connectors (for the model supporting the DX tray only) or 3 connectors
(for the model supporting no DX tray only) from the ADF relay PCB.
(2) Disconnect the connector of the ADF motor harness from the ADF motor.
(3) Remove the cup S M3x8 Taptite screw and ADF FG harness.

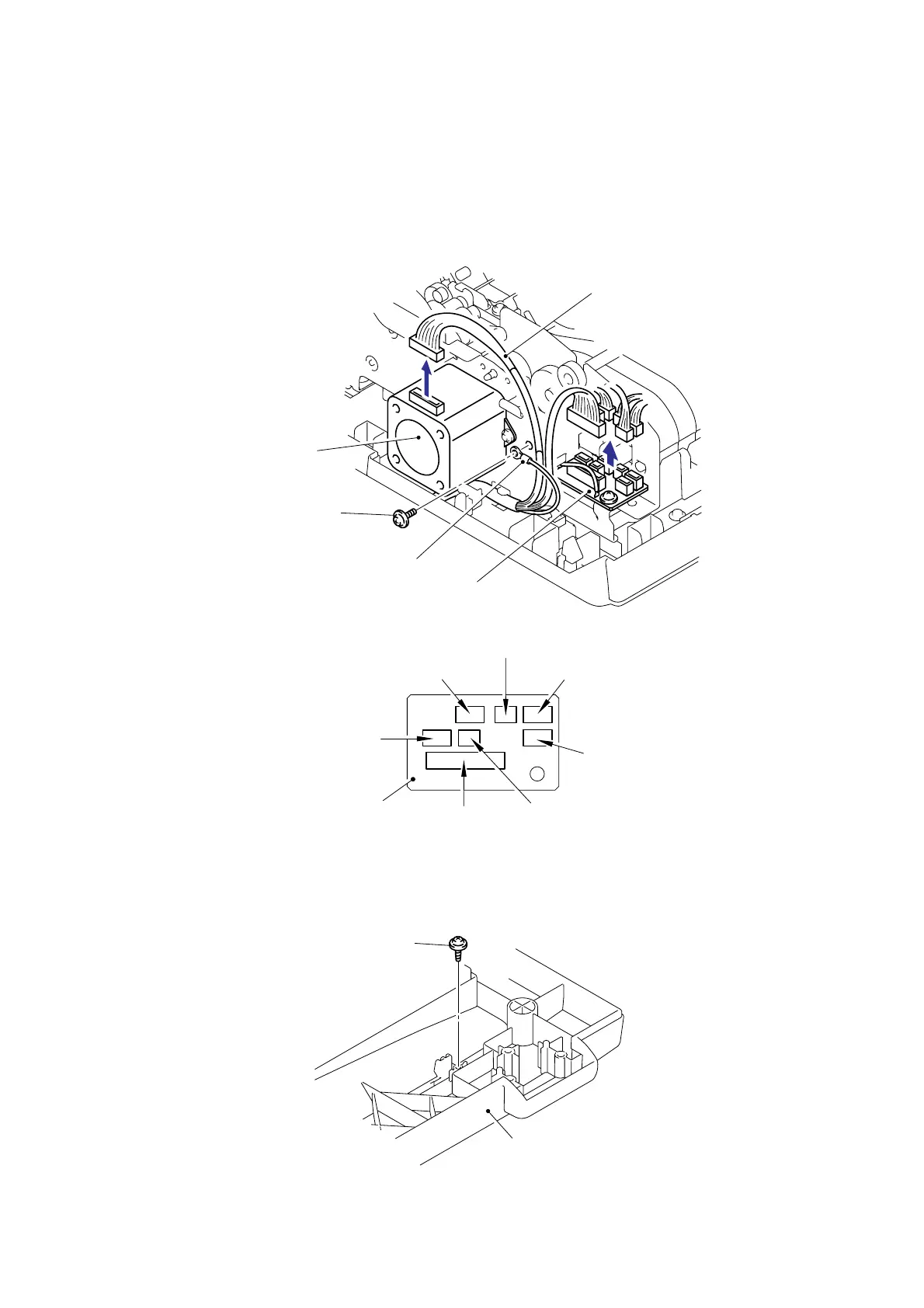

Fig. 5-46
(4) Turn the Document cover LGL upside down and remove the cup B M3x10 Taptite screw.
Fig. 5-47
ADF motor harness
ADF motor
<Back side>
1
2
ADF FG harness
ADF relay PCB
Taptite cup S M3x8
Switch back solenoid ASSY
(for the models with the DX only)
ADF relay harness
PF solenoid ASSY
(for the models with the DX only)
Document rear sensor
Document front sensor 1
Switch back sensor
(for the models with the DX only)
ADF relay PCB
Document front sensor 2
(for the models with the DX only)
Taptite, cup B M3x10
Document cover LGL

Brother MFC-8370DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Input color depth	48 bit
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	20 sheets
Display	LCD
Product color	Grey, White
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Card reader integrated	-
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	Scan
Power consumption (standby)	85 W
Power consumption (average operating)	680 W
Package weight	21100 g
Digital sender	No
Maximum duty cycle	- pages per month

Weight and Dimensions

Depth	443 mm
Width	390 mm
Height	442 mm
